Engine Control Module (ECM) Removal and Installation: Installation

Reverse removal procedure noting the following:

• Connect connectors to ECM as follows.
  1. Make sure that lock lever of ECM connector is unlock position.
     Fig 1: Connecting Connectors To ECM

     Courtesy of SUZUKI OF AMERICA CORP.
  2. Insert ECM connectors to ECM until it stops with unlocked lock lever.
     Fig 2: Inserting ECM Connectors To ECM With Unlocked Lock Lever

     Courtesy of SUZUKI OF AMERICA CORP.

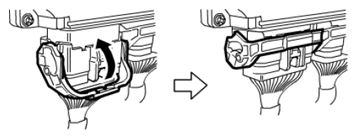

  3. Lock ECM connectors securely by pulling its lock lever up.
     Fig 3: Locking ECM Connectors

     Courtesy of SUZUKI OF AMERICA CORP.
