Electronic Stability Program Input/Output Block Diagram

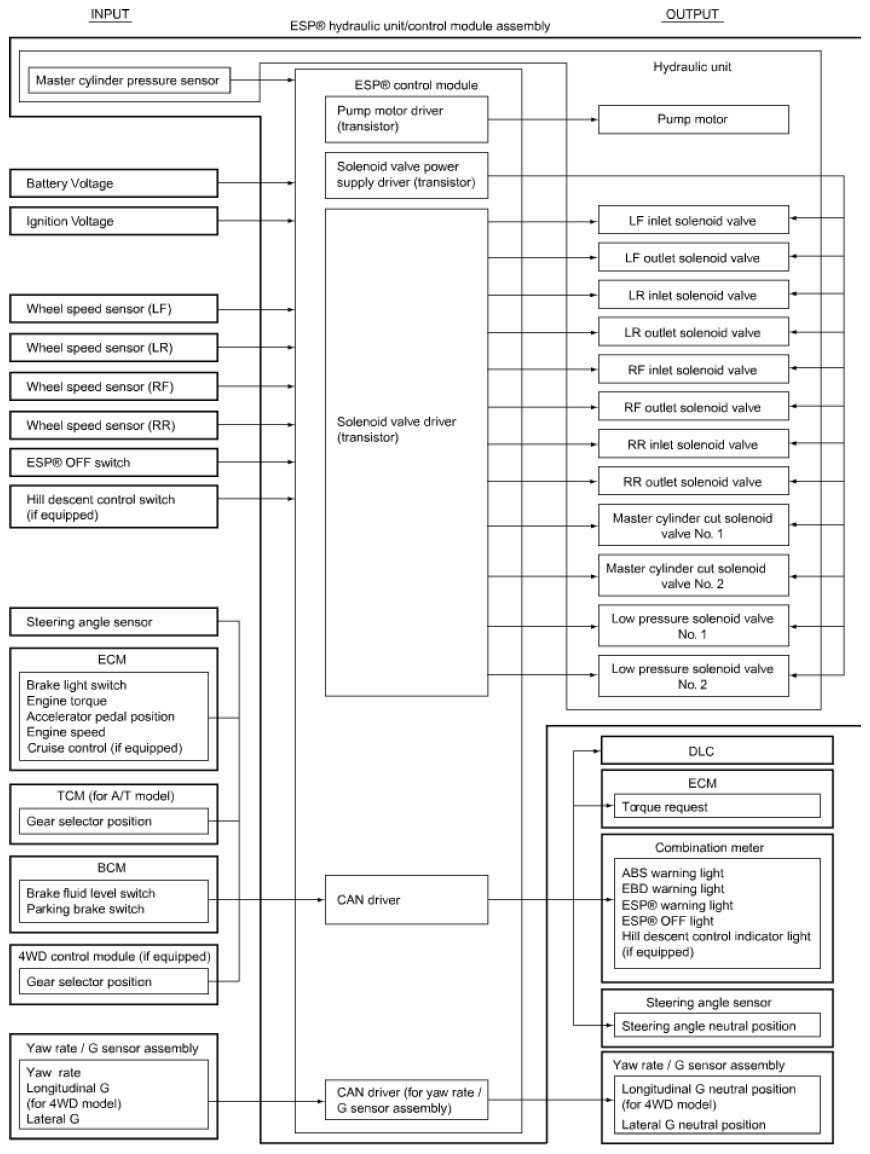

Fig 1: Electronic Stability Program Input/Output Block Diagram
G08895807Courtesy of SUZUKI OF AMERICA CORP.
