ECT (Engine Coolant Temperature) Sensor Removal and Installation: Installation

Reference: ECT (ENGINE COOLANT TEMPERATURE) SENSOR INSPECTION

Reverse removal procedure noting the following.

• Check O-ring for damage and replace if necessary.
• Tighten ECT sensor to specified torque.

  Tightening torque

  ECT sensor (a): 12 N.m (1.2 kgf-m, 9.0 lbf-ft)

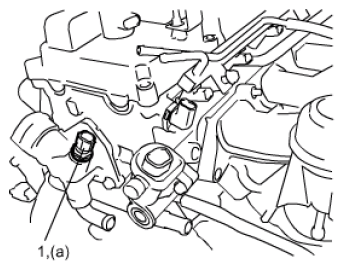

  Fig 1: Identifying ECT Sensor

  Courtesy of SUZUKI OF AMERICA CORP.
• Connect connector to ECT sensor.
• Refill cooling system. Refer to COOLING SYSTEM REFILLING
• Check for coolant leakage. ENGINE COOLING SYSTEM INSPECTION
