ECM Removal and Installation: Removal

Disconnect negative (-) cable at battery.
Disconnect connectors from ECM as follows.
1. Push lock (1) to release locking of lock lever (2).
2. Turn lock lever in arrow direction until it stops.

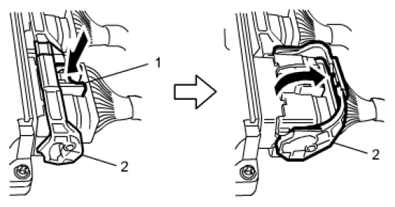

  Fig 1: Pushing Lock Lever
  Courtesy of SUZUKI OF AMERICA CORP.
Remove ECM (2) and bracket (3) from front fender bracket and battery tray by removing their mounting bolts (1).

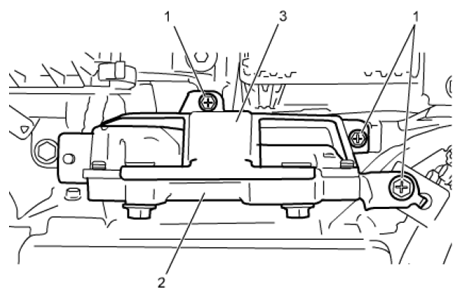

Fig 2: Identifying ECM, Bracket And Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove ECM from bracket by removing ECM mounting nuts.
