DTC Check

  1. Confirm that ignition mode of keyless push start system is in "OFF".
  2. Connect SUZUKI scan tool to DLC (1).

    Special Tool

    1. SUZUKI scan tool (SUZUKI-SDT)

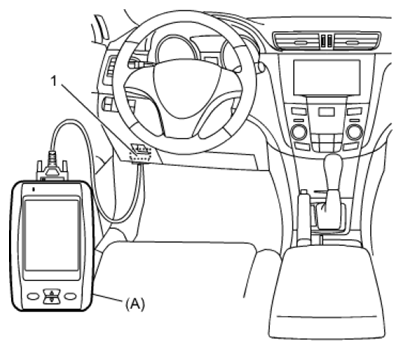

    Fig 1: Connecting Scan Tool To DLC
    G06526595Courtesy of SUZUKI OF AMERICA CORP.
  3. Push engine switch to change ignition mode of keyless push start system to "ON".
  4. Read DTC according to instructions displayed on SUZUKI scan tool and prints it or write it down. Refer to SUZUKI scan tool operator's manual for further details. If communication between scan tool and ESP® control module is not possible, check that power supply and ground circuits of ESP® control module. If they are OK, go to TROUBLESHOOTING FOR COMMUNICATION BUS OFF .
  5. Confirm that ignition mode of keyless push start system is in "OFF" and disconnect SUZUKI scan tool from DLC after completing check.
