Warning/Indicator Light Description: Notes

There are four warning and indicator lights controlled by ESP® hydraulic unit/control module assembly in combination meter. They give warnings and indications to driver by changing their modes: light ON/flashing/light OFF.

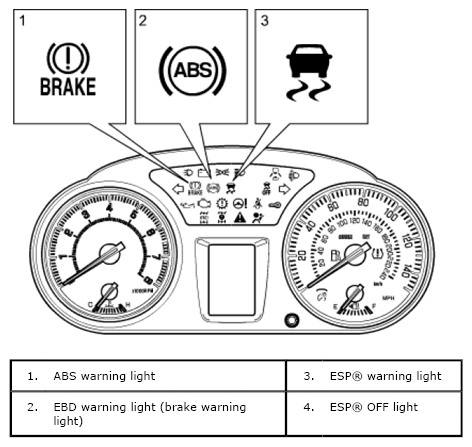

Fig 1: Identifying Warning And Indicator Lights
G06526586Courtesy of SUZUKI OF AMERICA CORP.
