ESP® Hydraulic Unit/Control Module Assembly Components

CAUTION: Never disassemble ESP® hydraulic unit/control module assembly, loosen blind plug or remove motor. Performing any of these prohibited services will spoil original performance of ESP® hydraulic unit/control module assembly.

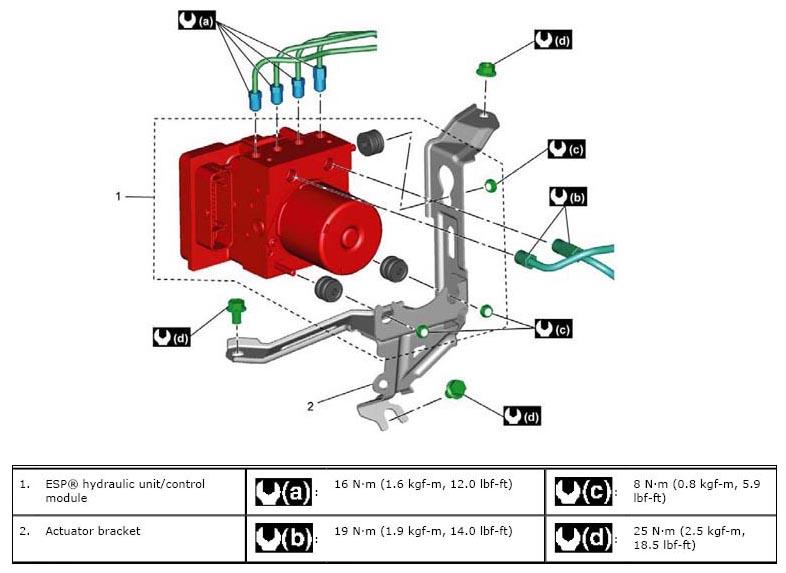

Fig 1: ESP Hydraulic Unit/Control Module Assembly Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
