ESP® Hydraulic Unit/Control Module Assembly Removal and Installation: Removal

Disconnect negative (-) cable at battery.

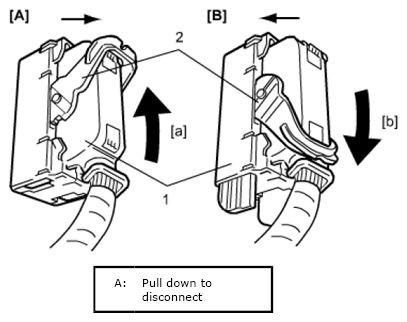

Disconnect ESP® hydraulic unit/control module assembly connector (1) by pulling down the lock lever (2).

Fig 1: Disconnecting ESP Hydraulic Unit/Control Module Assembly Connector
Courtesy of SUZUKI OF AMERICA CORP.

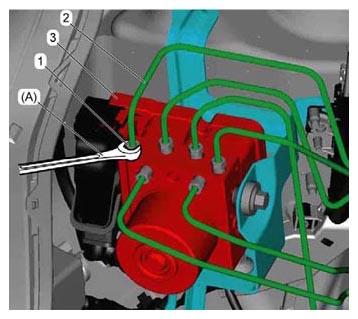

Loosen flare nuts (1) using special tool and disconnect brake pipes (2) from ESP® hydraulic unit/control module assembly (3).
Special Tool
1. 09950-78220
NOTE: Put bleeder plug cap or the like onto pipe to prevent fluid from spilling.

Fig 2: Loosening Flare Nuts Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.

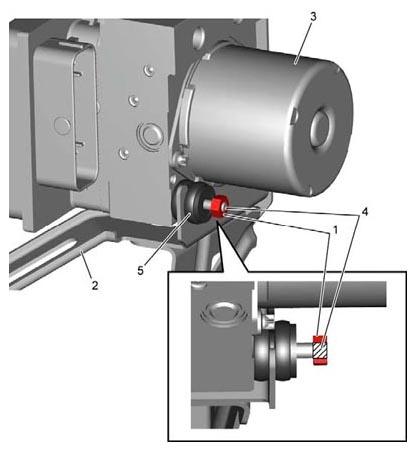

Remove or loosen ESP® hydraulic unit/control module assembly nuts (1) and remove ESP® hydraulic unit/control module assembly (3) from actuator bracket (2).
CAUTION: Be careful not to damage bushing (5).

NOTE: If ESP® hydraulic unit/control module assembly nuts are not removed, loosen nuts by the end of screw (4) as shown in the illustration.

Fig 3: Identifying ESP Hydraulic Unit/Control Module Assembly Nuts And Screw
Courtesy of SUZUKI OF AMERICA CORP.
