Front Wheel Speed Sensor Removal and Installation: Installation

Reference: FRONT AND REAR WHEEL SPEED SENSOR INSPECTION

Reverse removal procedure, noting the following points.

• Check detective area of wheel speed sensor (1) is not covered with iron powder.
• Tighten wheel sensor bolt (2) to specified torque.

  Tightening torque

  Front wheel speed sensor bolt (a): 11 N.m (110 kg-m, 8.5 lbf-ft)

• Confirm that there is no space between front wheel speed sensor and steering knuckle (3).

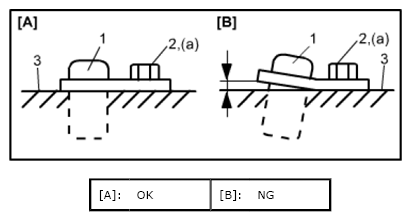

  Fig 1: Identifying Front Wheel Speed Sensor Gap

  Courtesy of SUZUKI OF AMERICA CORP.
• Install wheel, see WHEEL (WITH TIRE) REMOVAL AND INSTALLATION .
