CKP Sensor Removal and Installation: Installation

Reverse removal procedure, noting the following points:

• Apply engine oil to O-ring of sensor.
  CAUTION: The CKP sensor bolt is pre-coated with adhesive. If the bolt is reused, it may work loose. Be sure to replace the CKP sensor bolt with a new one it is loosened.
• Tighten CKP sensor bolt to specified torque.

  Tightening torque

  CKP sensor bolt (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)

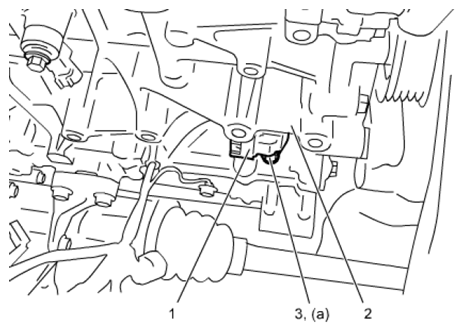

  Fig 1: Identifying CKP Sensor, Cylinder Block And CKP Sensor Bolt

  Courtesy of SUZUKI OF AMERICA CORP.
