CMP Sensor Removal and Installation: Installation
Reverse removal procedure, noting the following points:

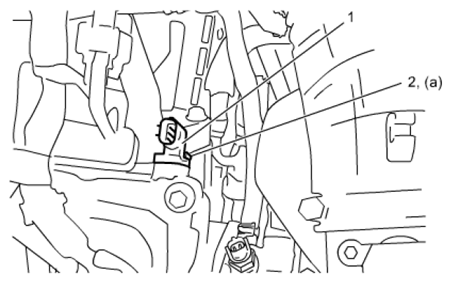

- Apply engine oil to O-ring of CMP sensor (1).
- Tighten CMP sensor bolt (2) to specified torque.
Tightening torque
CMP sensor bolt (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)
