ECM Removal and Installation: Installation

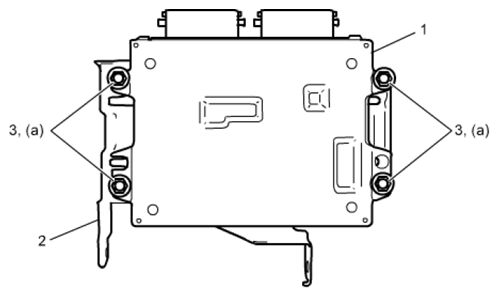

Install ECM (1) to bracket (2).
Tighten ECM mounting nuts (3) to specified torque.
Tightening torque

ECM mounting nut (a): 5.5 N.m (0.56 kg-m, 4.0 lbf-ft)

Fig 1: Identifying ECM, Bracket And Mounting Nuts
Courtesy of SUZUKI OF AMERICA CORP.

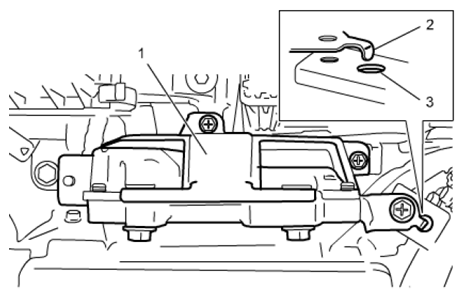

Install ECM and bracket (1) to front fender bracket and battery tray aligning its locating pin (2) of front fender bracket with fitting hole (3).

Fig 2: Identifying Front Fender Bracket With Fitting Hole
Courtesy of SUZUKI OF AMERICA CORP.
Connect connectors to ECM as follows.
1. Make sure that lock lever of ECM connector is in unlock position.

  Fig 3: Identifying ECM Connector
  Courtesy of SUZUKI OF AMERICA CORP.
2. Insert ECM connectors to ECM until it stops.

  Fig 4: Inserting ECM Connectors
  Courtesy of SUZUKI OF AMERICA CORP.

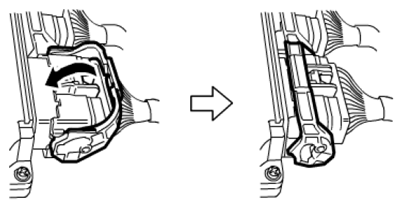

3. Lock ECM connectors securely by setting their lock levers in their locked position.

  Fig 5: Identifying ECM Connectors Lock Position
  Courtesy of SUZUKI OF AMERICA CORP.
Perform electric throttle control system calibration. see ELECTRIC THROTTLE CONTROL SYSTEM CALIBRATION .
