MAF Sensor

  1. Remove MAF and IAT sensor, see MAF AND IAT SENSOR REMOVAL AND INSTALLATION .
  2. Connect battery (2) and voltmeter (3) to MAF and IAT sensor (1) as shown in figure.
  3. Check that voltage varies depending on amount of blowing air as the following graph.

    If faulty condition is found, replace MAF and IAT sensor, see MAF AND IAT SENSOR REMOVAL AND INSTALLATION .

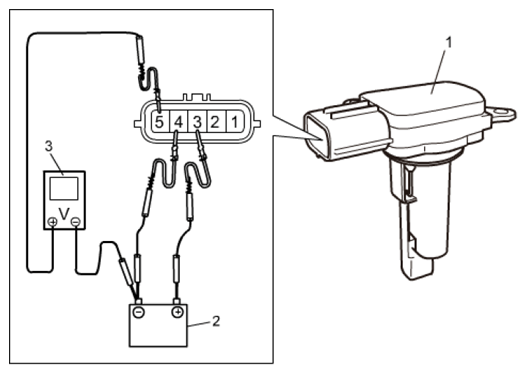

    Fig 1: Connecting Battery And Voltmeter To MAF And IAT Sensor
    G06528151Courtesy of SUZUKI OF AMERICA CORP.

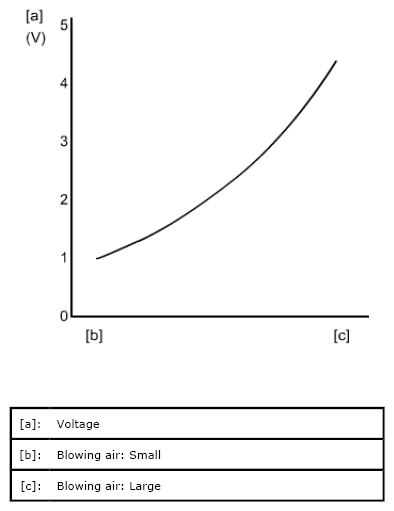

Fig 2: MAF Sensor Voltage Graph
G06528152Courtesy of SUZUKI OF AMERICA CORP.
