Sub Fuel Level Sensor (4WD Model)
Reference: SUB FUEL LEVEL SENSOR REMOVAL AND INSTALLATION (4WD MODEL)

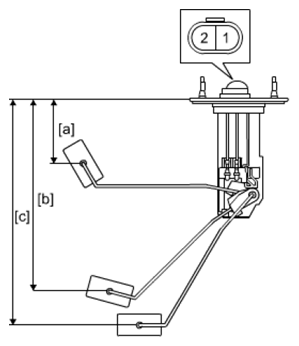

Check resistance between terminals (1) and (2) at each float position [a], [b] and [c].
If measured resistance is out of specification, replace sub fuel level sensor.
Sub fuel level sensor resistance
Standard
SUB FUEL LEVEL SENSOR RESISTANCE SPECIFICATION
| Float position | Resistance | |
|---|---|---|
| [a] | 53.6 mm (2.11 in.) | 19.0 - 21.0 Ω |
| [b] | 161.8 mm (6.370 in) | 136.5 - 143.5 Ω |
| [c] | 190.4 mm (7.496 in) | 162.1 - 166.1 Ω |
