Fuel Line On-Vehicle Inspection

Visually inspect fuel lines for evidence of fuel leakage, pipe (1) crack, deterioration and damage.

Check that quick joint (2) is connected securely.

Make sure all clamps (3) are secure.

Replace parts as needed.

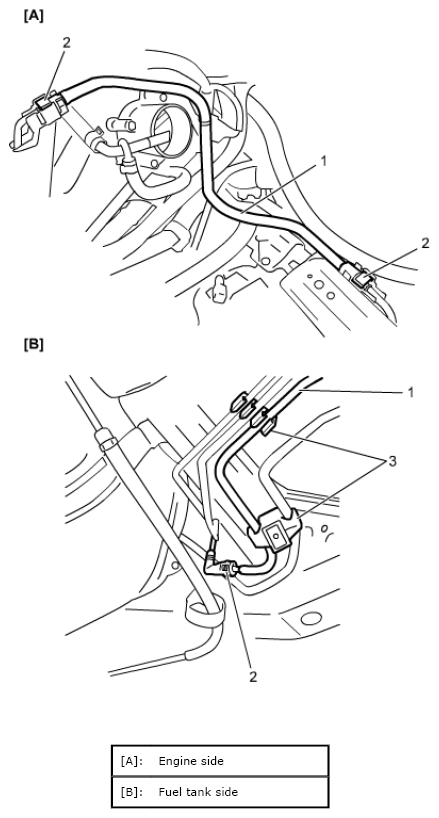

Fig 1: Identifying Fuel Line, Quick Joint And Clamps

Courtesy of SUZUKI OF AMERICA CORP.
