Ignition System Component Location

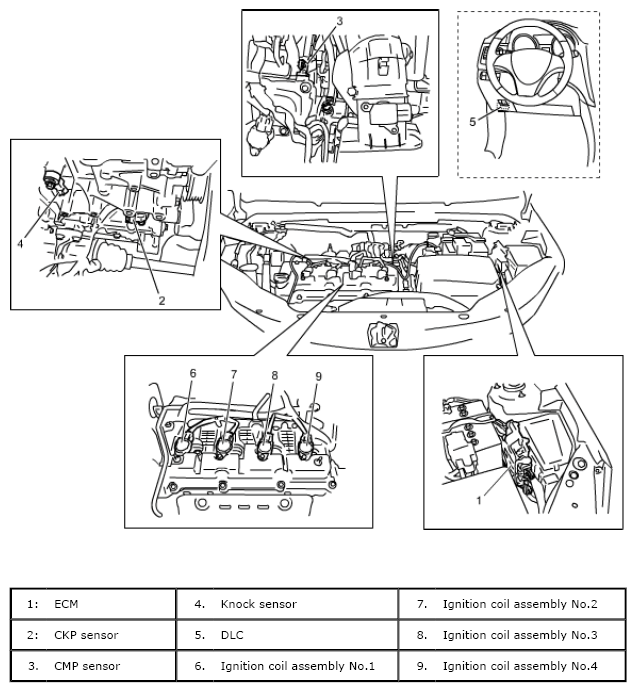

Fig 1: Identifying Ignition System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
