Registered VIN Data Check

With ignition mode of keyless push start system in "OFF", connect SUZUKI scan tool to DLC (1) located on underside of instrument panel at driver's seat side.
Special Tool
1. SUZUKI scan tool (SUZUKI-SDT)

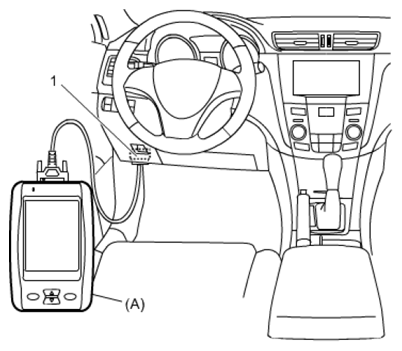

Fig 1: Connecting Scan Tool To DLC
Courtesy of SUZUKI OF AMERICA CORP.
Push engine switch to change ignition mode to "ON".
Select "VIN Registration" mode of SUZUKI scan tool.
Confirm whether code of 17 digits displayed on SUZUKI scan tool is corresponding to VIN shown on the left side of the instrument panel. If displayed VIN does not correspond to instrument panel VIN, register VIN data into ECM referring to VIN REGISTRATION .
Push "EXIT" button of SUZUKI scan tool.
