Casing - Key Fob - Remove And Replace: Installation

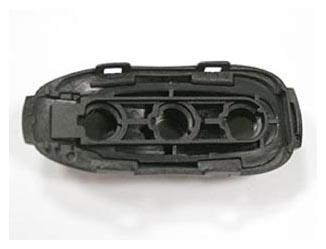

  1. Place the internal structure in the top panel.
    G15035180Courtesy of TESLA, INC.

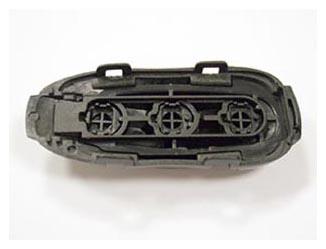

  2. Place the 3 buttons in the internal structure.
    NOTE: Place the shortest button in the front hole, the tallest button in the middle hole, and the medium-length button in the rear hole.
    NOTE: If a button does not sit flush with the internal structure, it is in the wrong position.
    G15035181Courtesy of TESLA, INC.
  3. Insert the circuit board with the buttons facing down.
    CAUTION: Take care not to damage component(s).
  4. Install the bottom cover.
  5. Install the side covers.
    NOTE: Position the tabs on the side cover in the notches at the top of the transmitter, then rotate the side cover into position.
  6. Install the battery.
