Module - HomeLink Transmitter - Remove And Replace: Removal

  1. Remove the front fascia Fascia Assembly - Front (Remove And Install) .
  2. Disconnect the HomeLink transmitter module from the wiring harness.

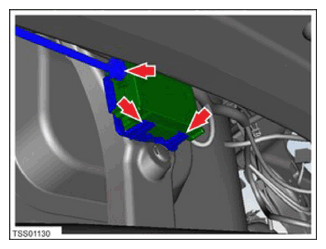

  3. Release the clips (x2) that secure the HomeLink transmitter module to the bracket.
    G15034761Courtesy of TESLA, INC.
  4. Remove the HomeLink transmitter module.
