Module - Sunroof Controller - Remove And Replace: Removal
- Remove the body control module (BCM), refer to MODULE - BODY CONTROLLER - BCM (REMOVE AND REPLACE)

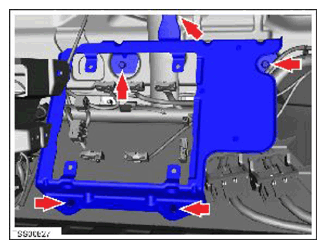

- Remove the 4 bolts and 1 nut that secure the sunroof controller mounting bracket to the body (torque 8 N.m).
 Courtesy of TESLA, INC.
|
- Carefully turn the mounting bracket over.

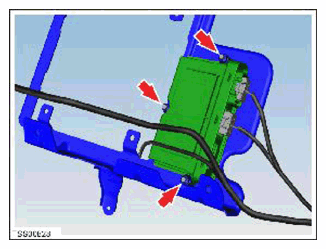

- Remove the 3 nuts that secure the controller to the bracket (torque 5 N.m).
 Courtesy of TESLA, INC.
|

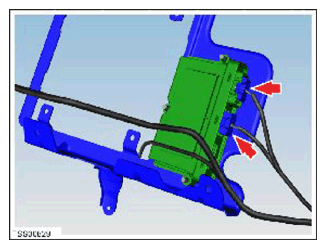

- Disconnect the 2 controller harness connectors.
 Courtesy of TESLA, INC.
|

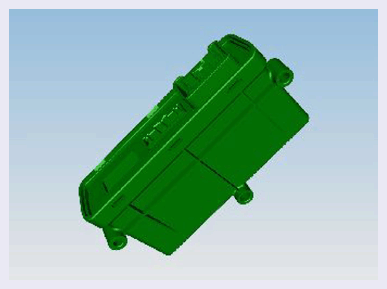

- Remove the controller from the mounting bracket.
 Courtesy of TESLA, INC.
|
