Image Capture

NOTE: Do not sit in or lean on the vehicle during image capture.

In Toolbox 3, go to Dashboards > Service Tools > View DAS Images > Image Capture .
Exit the vehicle with the laptop.
Click Capture Image in the lower right corner of the DAS Image Viewer screen.

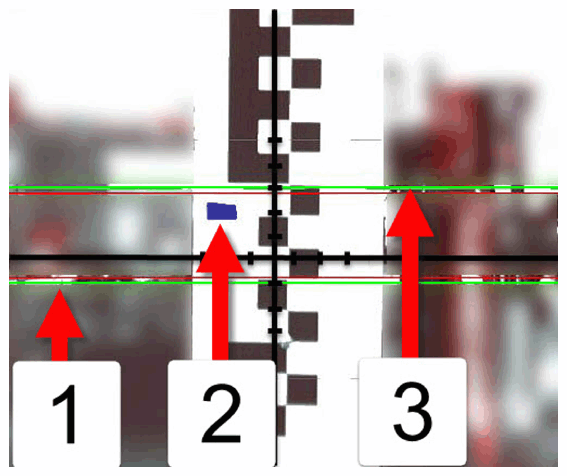

In the "Main" and "Narrow" camera views, determine if the top edge of the tape is between the positive 1 and negative 3 green degree lines.

NOTE: The "positive" degree lines are below the main horizontal axis. The "negative" degree lines are above the main horizontal axis.

Courtesy of TESLA, INC.

If the top edge of the tape is not between the green degree lines, retrofit a triple camera rear view mirror mount plate with integrated pitch adjustment, refer to TRIPLE CAMERA PITCH ADJUSTMENT - FORWARD FACING - 2ND GENERATION AUTOPILOT (RETROFIT) .
If the top edge of the tape is between the green degree lines, no further pitch adjustment is necessary.
