Target Calibration

  1. In Toolbox 2, go to Panels > Driver Assist > Camera Single Pole Target Auto Calibration  , and click the Play button.
  2. Follow the onscreen instructions to calibrate the forward facing camera.
    NOTE: When prompted, move the target from "Location 1" to "Location 2".
    Location 1 Location 2

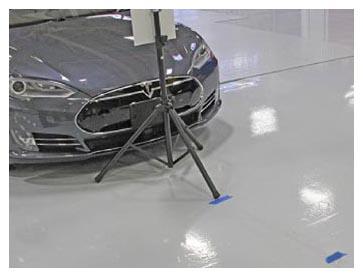

    G15034914Courtesy of TESLA, INC.

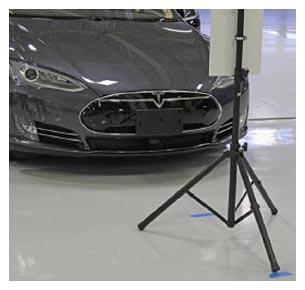

    G15034915Courtesy of TESLA, INC.
  3. Once the calibration procedure is completed, click Finish  .
