- Remove the front fascia Fascia Assembly - Front (Remove And Install)
.

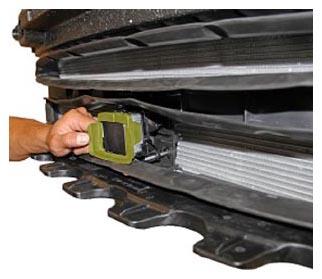

- Remove the radar sensor gasket.
NOTE:
The flaps on each side of the radar sensor gasket are secured to the radar sensor with double-sided tape.
 Courtesy of TESLA, INC.
|

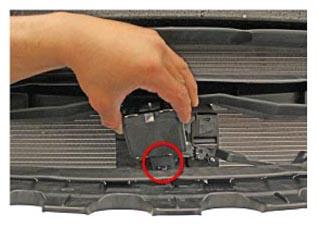

- Use a trim tool or flathead screwdriver to gently pry up the tab on the top of the inner bracket, and gently release the radar sensor from the bracket.
CAUTION:
The radar sensor is still connected by a harness. Do not attempt to remove the radar from the vehicle at this time.
 Courtesy of TESLA, INC.
|

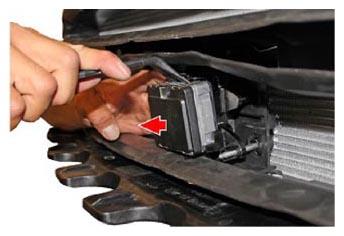

- Disconnect the electrical harness on the bottom of the radar sensor.
CAUTION:
There is little slack in the electrical harness. Do not damage the connector.
 Courtesy of TESLA, INC.
|
- Remove the radar sensor.
