Adjustable Top Loop - Remove and Replace: Install

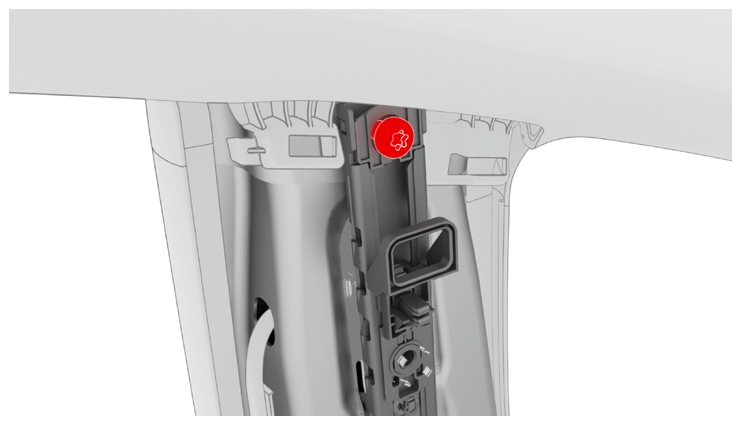

- Position the adjustable top loop on the B-pillar, and then install the new patchbolt that attaches the adjustable top loop to the B-pillar.
20 N.m (14.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T47 socket
- 3/8 in std ratchet
- 3/8 in flex head torque wrench (installation only)

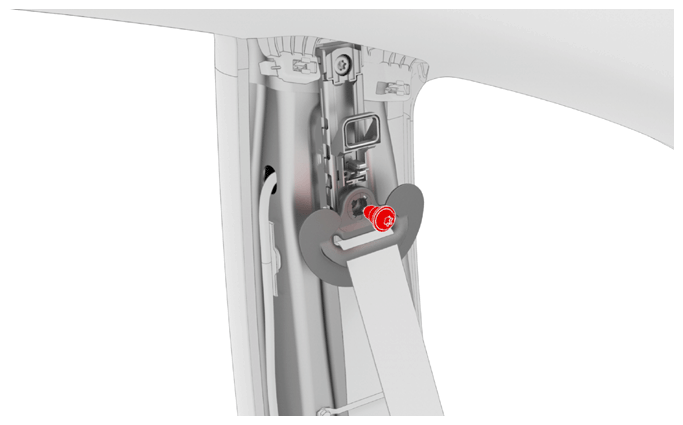

- Install the new patchbolt that attaches the upper D-ring to the B-pillar.
20 N.m (14.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T45 socket
- 3/8 in std ratchet
- 3/8 in flex head torque wrench (installation only)
- 3 in extension

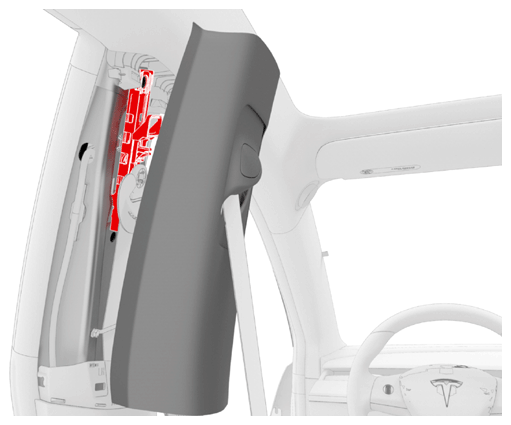

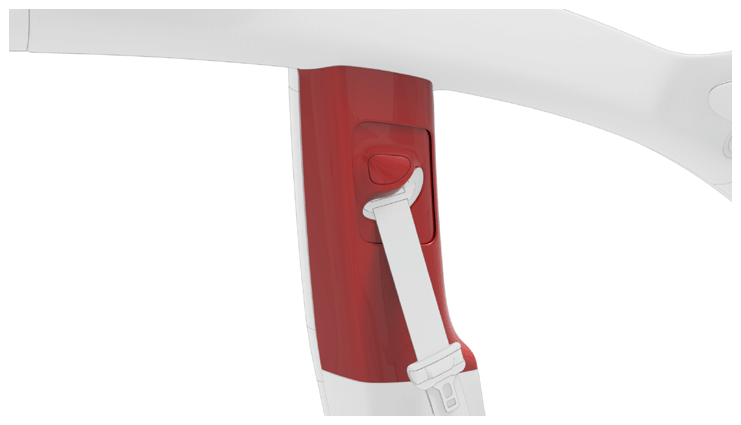

- Lower the adjustable top loop to align it with the LH upper B-pillar trim.
- Insert the top portion of the LH upper B-pillar trim under the headliner to align the clips, and then press the bottom of the trim to fully engage all of the clips.NOTE: Make sure the rubber door seals completely overlap the trim.
