Tuner - FM/HD/XM - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  2. Disconnect the coax connector on the tuner harness from the FM/HD tuner.

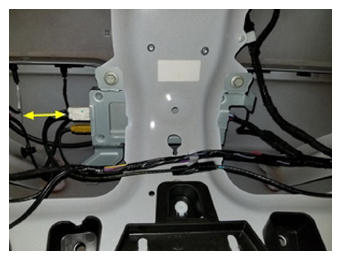

    G15101223Courtesy of TESLA, INC.

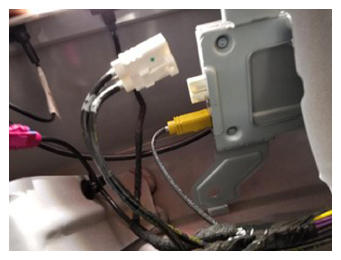

    G15101224Courtesy of TESLA, INC.
  3. Disconnect the RH liftgate harness electrical connector from the LH side of the FM/HD tuner.

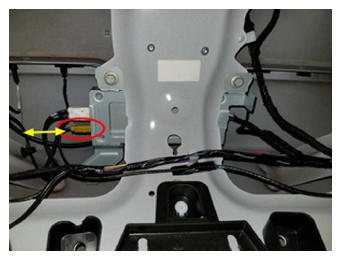

    G15101225Courtesy of TESLA, INC.
  4. Disconnect the RH liftgate harness electrical connector from the RH side of the FM/HD tuner.

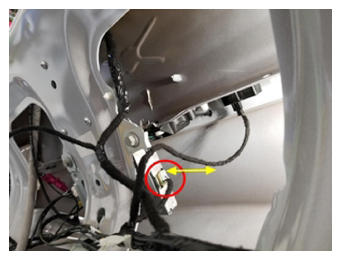

    G15101226Courtesy of TESLA, INC.
  5. Remove the bolts (x3) that attach the FM/HD tuner to the liftgate, and then pull the tuner downward and out of the liftgate from the LH side.

    NaN N.m (NaN ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

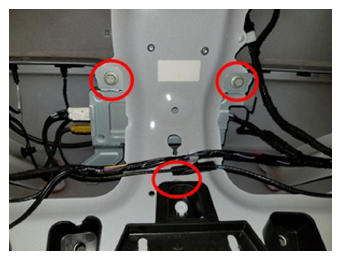

    G15101227Courtesy of TESLA, INC.

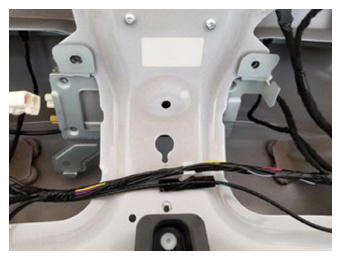

    G15101228Courtesy of TESLA, INC.

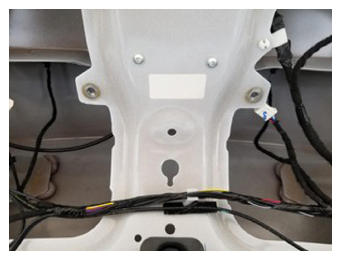

    G15101229Courtesy of TESLA, INC.
