Module - Central Body Controller - BCCEN - Remove And Replace: Removal
- Unpair all keys. See KEY FOB - UNPAIR .
- Open the RH front and rear doors.
- Disconnect 12V power. See DISCONNECT 12V POWER .
- Remove the RH closeout extension. See CLOSEOUT EXTENSION - CENTER CONSOLE - LH (REMOVE AND REPLACE)
.
- Remove the RH lower A-pillar trim pane. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE)
.
- Fold back the carpet in the passenger side footwell.
- Remove the RH false floor from the vehicle.

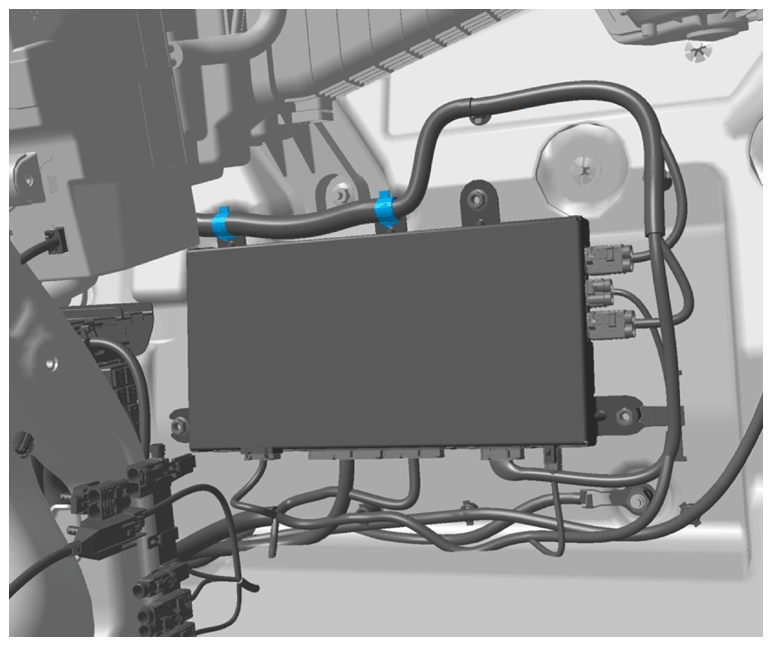

- Release the clips (x2) that attach the electrical harness to the central body controller module.
 Courtesy of TESLA, INC.
|

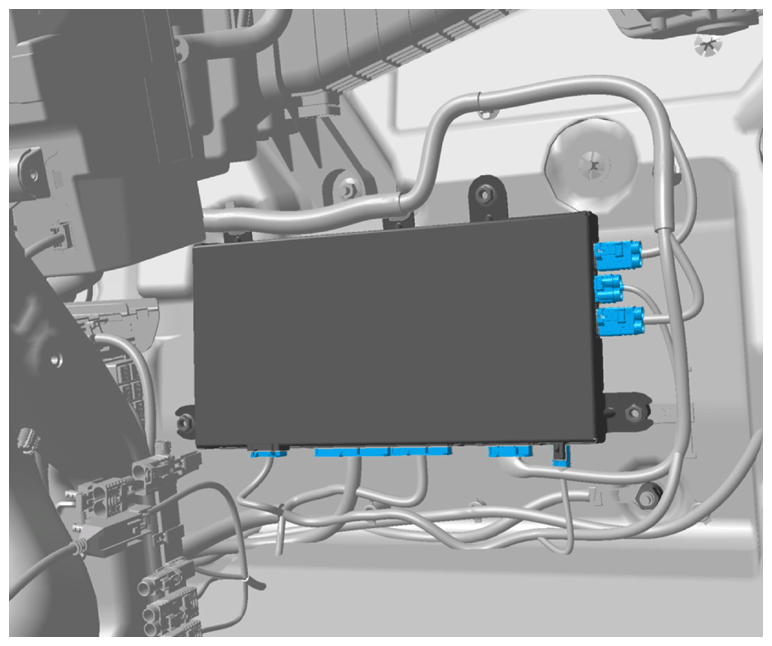

- Disconnect the electrical harnesses from the central body controller module connectors (x8).
 Courtesy of TESLA, INC.
|

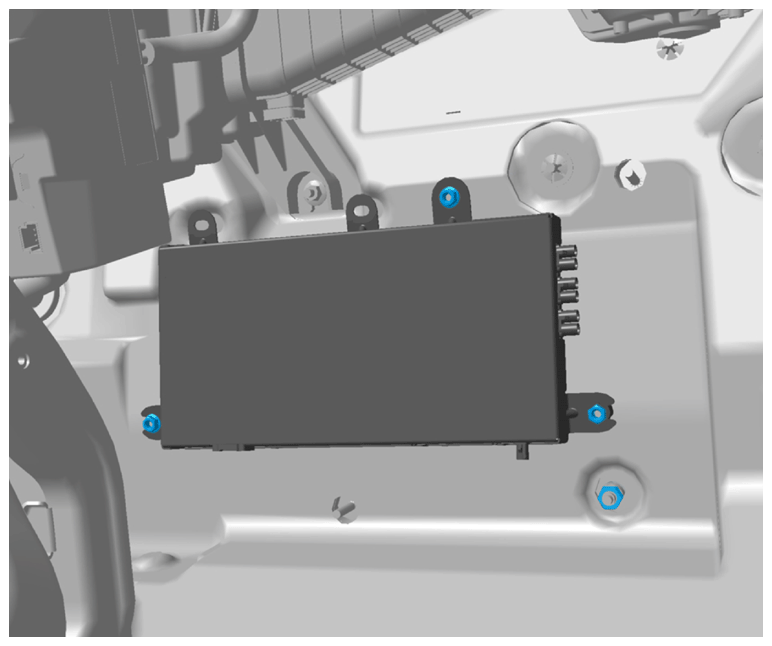

- Remove the nuts (x3) that attach the central body controller module to the body (torque 5 N.m), and then remove the module from the vehicle.
 Courtesy of TESLA, INC.
|
