Image Capture - Forward Facing Camera: Setup
- If the vehicle is equipped with air suspension, set the ride height to Standard.

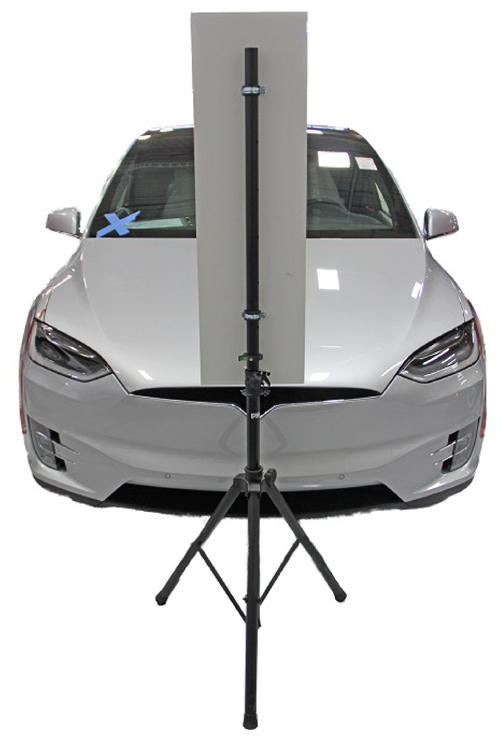

- Place the target tripod in the appropriate starting position:
- The target is placed against the front fascia and centered on the Tesla "T".
- The target has 2 legs facing the vehicle and both are less than 5 mm from the lower valance.
- The target and vehicle are both on a flat surface.NOTE: If a flat surface is unavailable, ensure that the vehicle and target are both on the same slope.

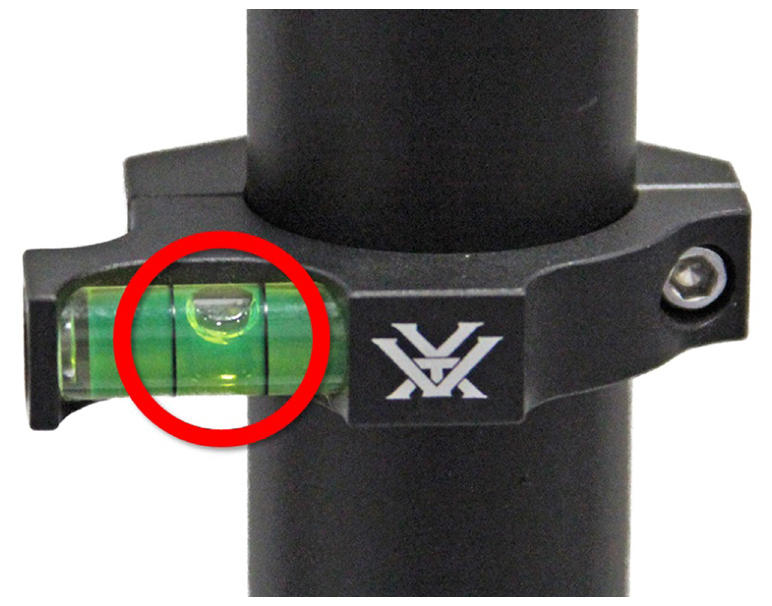

- Ensure that the target is on flat ground by examining the bubble level on the back of the target.
- Apply a piece of colored tape onto the target so that the top edge of the tape is 149 cm from the ground.
- Connect a laptop with Toolbox to the vehicle.
