Module - HomeLink Transmitter - Remove And Replace: Removal

  1. Remove the front fascia assembly. See FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .

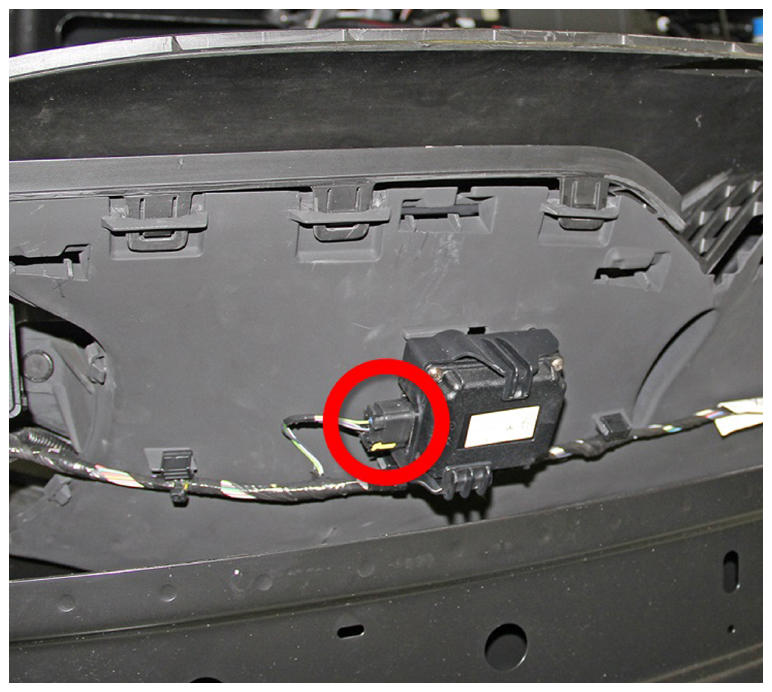

  2. Disconnect the electrical connector from the HomeLink transmitter module.
    G15202873Courtesy of TESLA, INC.

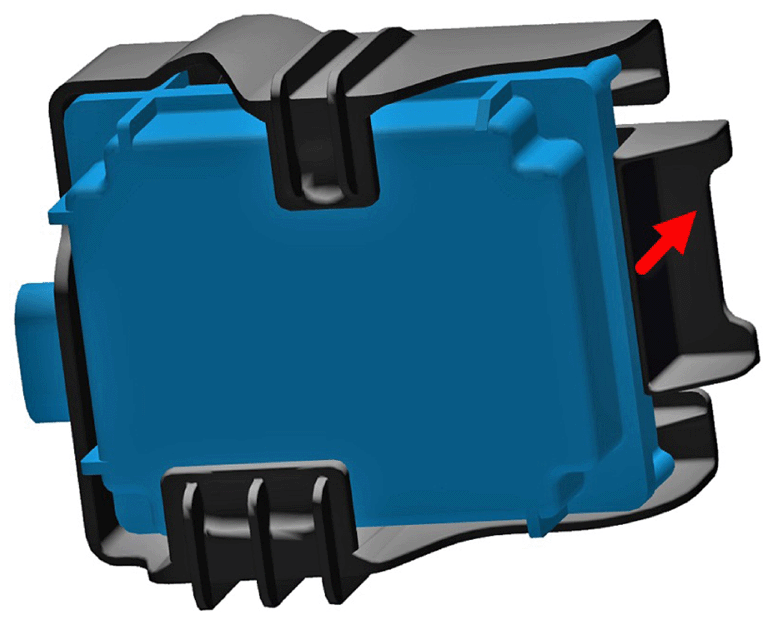

  3. Gently pry the LH tab away from the HomeLink transmitter module to release it from the bracket. Release the HomeLink transmitter module from the bracket by sliding it to the LH side of the vehicle.
    G15202874Courtesy of TESLA, INC.
  4. Remove the HomeLink transmitter module from the vehicle.
