DAS 1.0 and DAS 2.0: Notes
Special tools required for this procedure:
| Part Number | Description |
|---|---|
| 1056984-00-A | Radar calibration bubble level |
| 1109688-00-A | Tool, radar bracket adjustment |

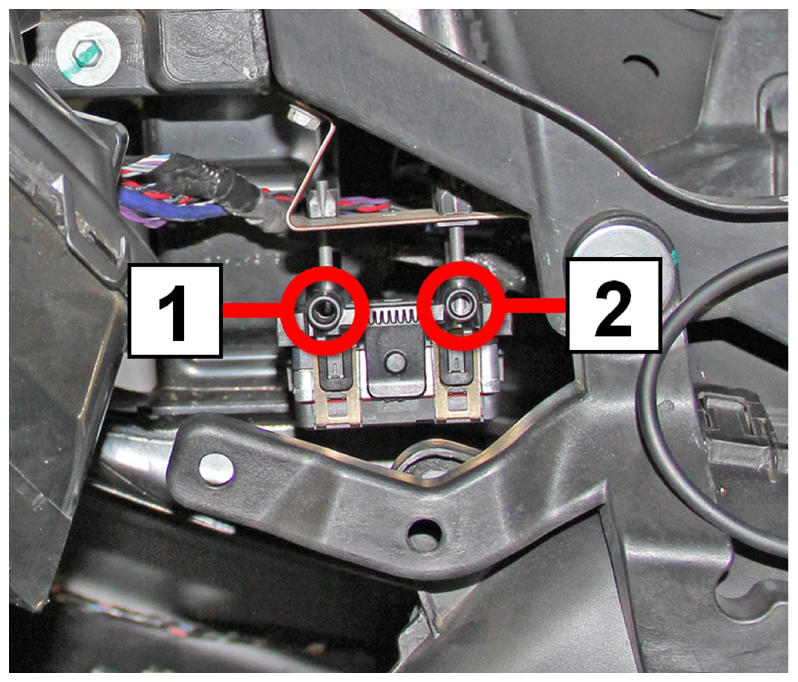

The front radar sensor is calibrated by adjusting the set screws (x2) on the top of the radar sensor.
NOTE:
Components have been removed in this graphic to aid clarity.
| 1. | Horizontal alignment screw |
| 2. | Vertical alignment screw |
