Module - Front Body Controller - BCM - Remove And Replace: Remove

  1. Remove the ECU box from the vehicle ECU BOX (REMOVE AND INSTALL) .

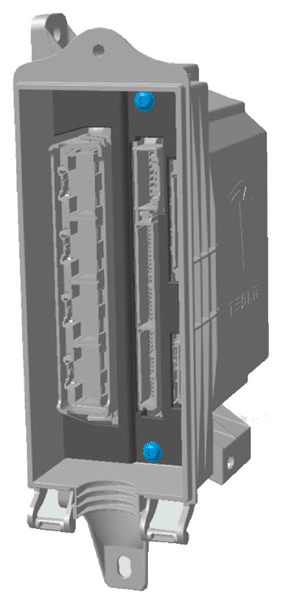

  2. Release the screws that secure the bracket inside the ECU box (torque 2.5 N.m).
    G15202871Courtesy of TESLA, INC.

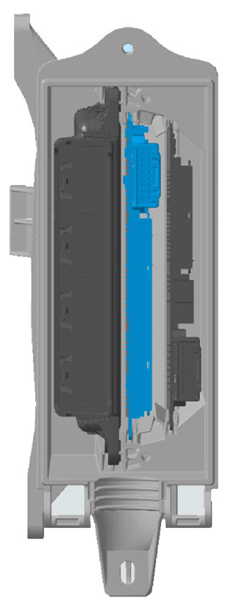

  3. Remove the front body controller.
    G15202872Courtesy of TESLA, INC.
