Gateway Unlock: Unlocking

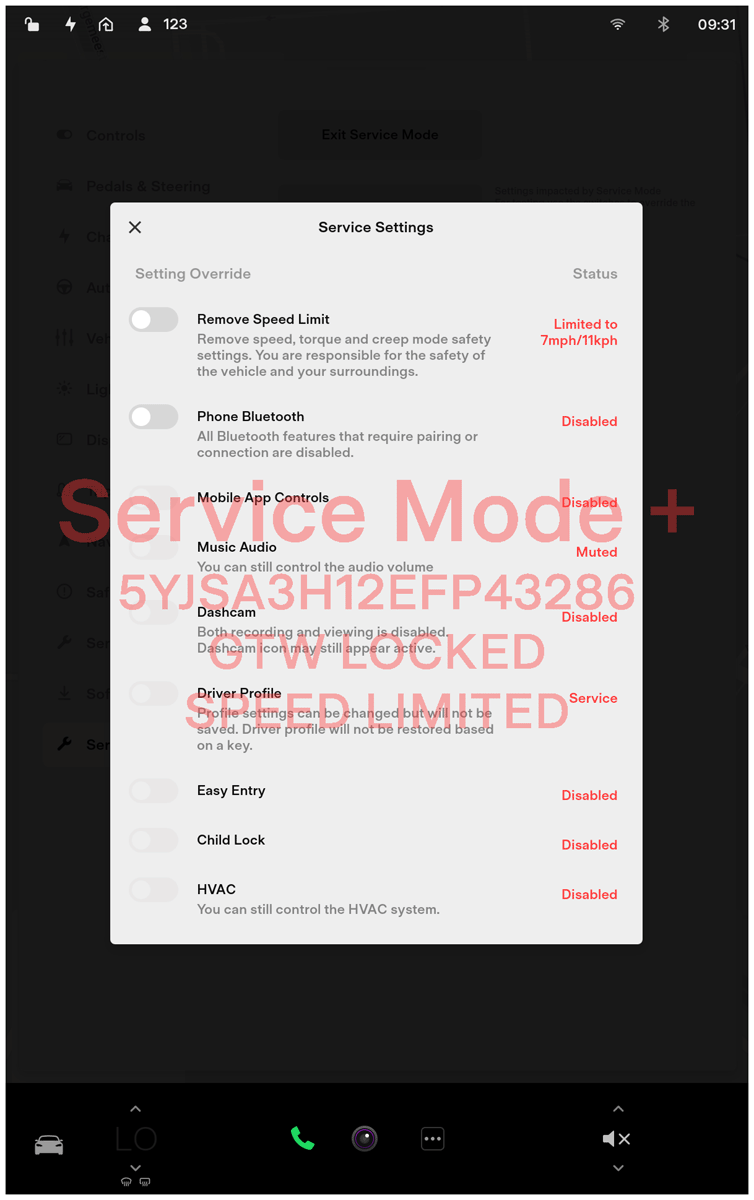

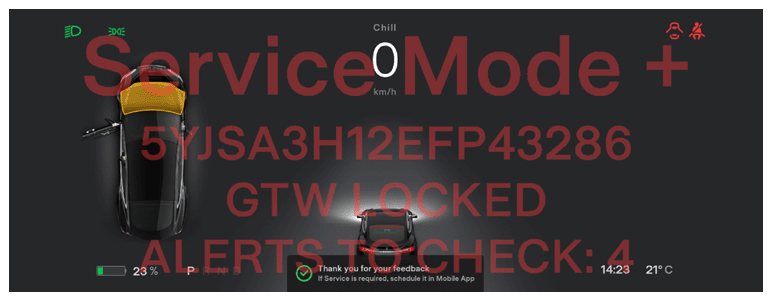

- If Service Mode or Service Mode Plus is not yet enabled, enable Service Mode through the touchscreen. See Service Mode .NOTE: GTW LOCKED will be displayed on the instrument cluster and the MCU.

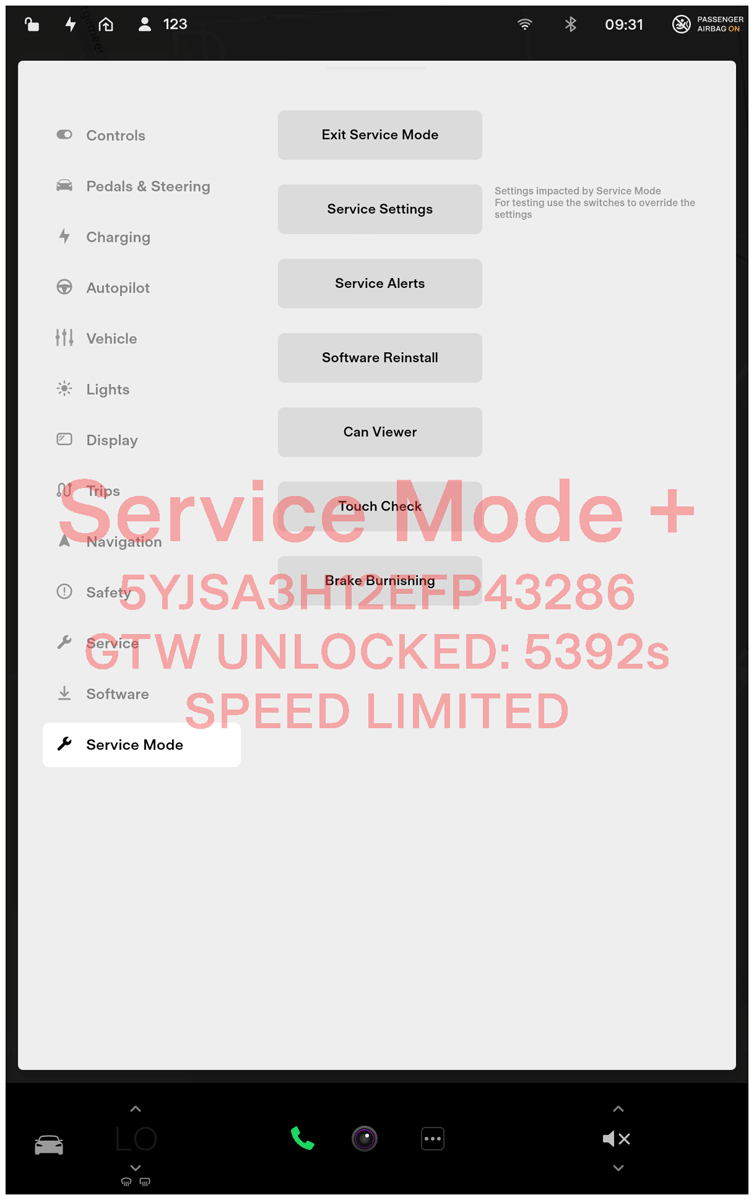

- Press and hold the brake pedal, and then push and hold the turn signal stalk fully up for at least ten seconds.NOTE: The instrument cluster and MCU briefly display GTW UNLOCKING. Once the gateway is unlocked, the instrument cluster and MCU will display GTW UNLOCKED and a countdown timer that indicates the remaining time in seconds for the gateway to be unlocked (max. 90 minutes).
