Check And Adjust

  1. At the alignment rack, verify that the turn and slip plates are locked.
  2. Latch the passenger seat belt to the driver buckle.
  3. Enable Service Mode +. See SERVICE MODE PLUS .
  4. Unlock the vehicle gateway for diagnostic communication. See GATEWAY UNLOCK .
  5. If the fasteners that secure the steering rack, steering column, intermediate shaft, tie rods, or front subframe have been loosened or removed, perform a Lock To Lock-Angle test. See LOCK TO LOCK-ANGLE TEST .
  6. Exit the vehicle, and then place wheel chocks at both sides of the LH rear wheel, and then manually latch the driver door.
  7. Raise the alignment rack to a comfortable working height.
  8. Install inflation hoses onto all four wheels so that tire pressures can be set automatically.
  9. Set the tire machine pressures to match those specified for the vehicle.
    NOTE: Refer to the "Tire and Loading Information" label located on the driver side B-pillar.
  10. Install the alignment heads to the center of the each wheel, and then adjust the side arms as necessary to grip tires securely.

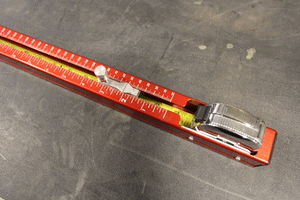

  11. Verify chassis height measurement tool is zeroed at 51 mm, and adjust if necessary.
    G00632552Courtesy of TESLA, INC.
  12. Remove tire pressure hoses from valve stems, and reinstall the valve stem cap.
  13. Tesla Air Suspension Only  Click the Action  tab, type "Check ride height" into the search field, click PROC_TAS_X_CHECK-RIDE-HEIGHT-CALIBRATION  , click Run  , and allow the routine to complete.
    NOTE: If the routine fails, perform Air Suspension Calibration. See Calibration . If the calibration fails, find the root cause before continuing this procedure.
  14. Shift the vehicle to neutral.

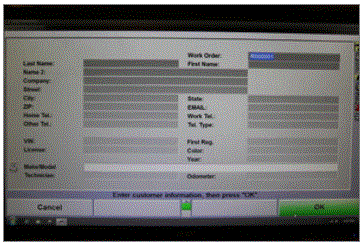

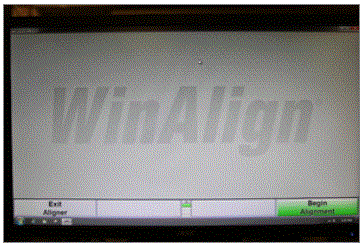

  15. At the alignment machine, click/touch Begin Alignment  and then enter the Service Visit information into the alignment machine.
    G00644074Courtesy of TESLA, INC.
    G00644075Courtesy of TESLA, INC.

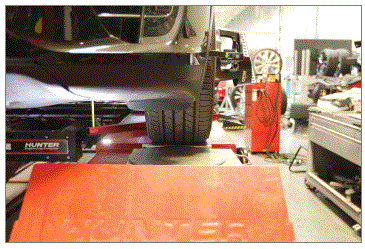

  16. Verify that the turn plates are left right centered to the front tires, and reposition the plates as necessary.
    G00644076Courtesy of TESLA, INC.

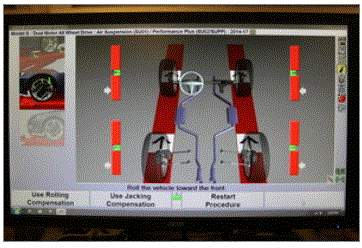

  17. Remove the wheel chocks from the LH rear tire, move the vehicle forward by slowly rotating the tire counter-clockwise so that the front wheels center onto the turn plates, and then install the wheel chocks on either side of the tire.
    NOTE: The turn and slip plates should automatically unlock.
    G00644077Courtesy of TESLA, INC.
  18. Apply brake pedal depressor.

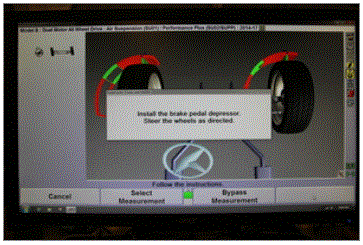

  19. Perform a steering wheel caster sweep, then center and level the steering wheel, and then install the steering wheel lock to keep the steering wheel in position.
    G00644078Courtesy of TESLA, INC.

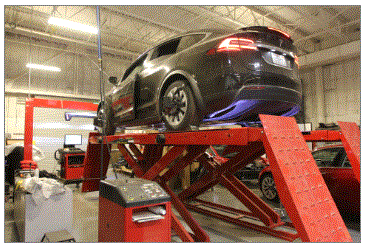

  20. Raise the alignment rack higher so as to work under the vehicle.
    G00644079Courtesy of TESLA, INC.

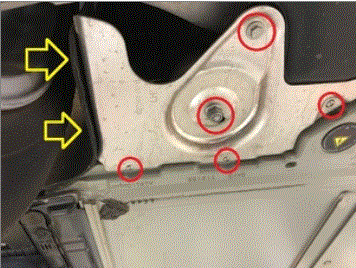

  21. Remove the LH and RH shear plate.
    NOTE: Discard nylon nut after removal.
    NOTE: LH
    G00643341Courtesy of TESLA, INC.

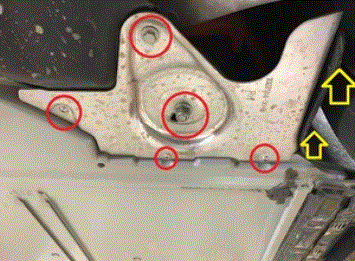

    NOTE: RH
    G00643342Courtesy of TESLA, INC.
  22. Remove the mid aero shield panel. See PANEL - AERO SHIELD - MID (REMOVE AND REPLACE) .

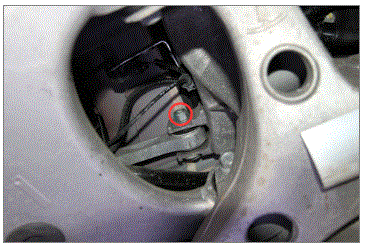

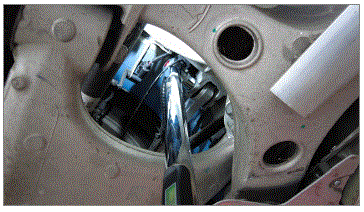

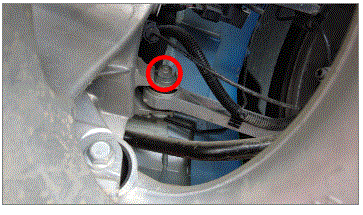

  23. Perform the rear toe adjustment as necessary.

    80 Nm (59.0 lbs-ft)

    G00644080Courtesy of TESLA, INC.
    G00644081Courtesy of TESLA, INC.
    G00644082Courtesy of TESLA, INC.

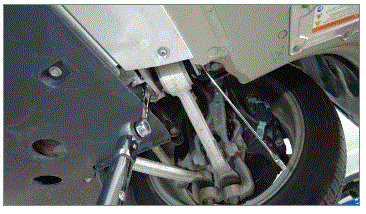

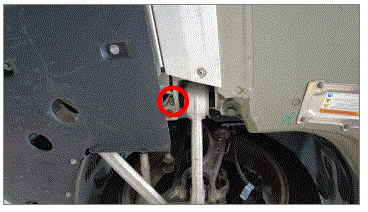

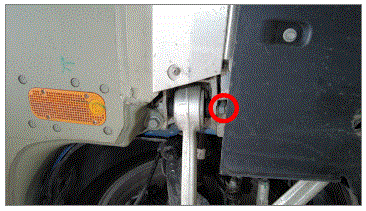

  24. Perform the front camber adjustment as necessary.

    130 Nm (95.9 lbs-ft)

    G00644083Courtesy of TESLA, INC.
    G00644084Courtesy of TESLA, INC.
    G00644085Courtesy of TESLA, INC.

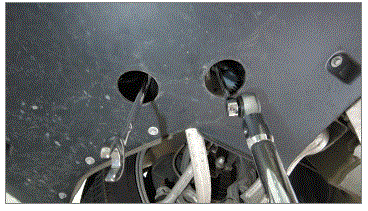

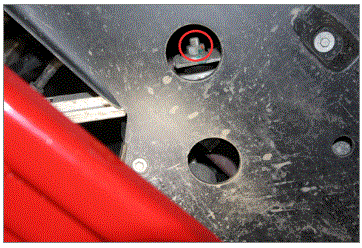

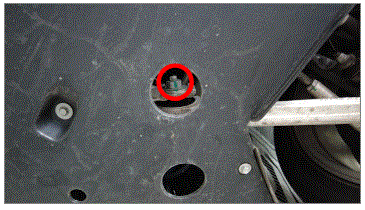

  25. Perform the front caster adjustment as necessary.

    130 Nm (95.9 lbs-ft)

    G00644086Courtesy of TESLA, INC.
    G00644087Courtesy of TESLA, INC.
    G00644088Courtesy of TESLA, INC.
  26. Lower 4-post lift and set onto locks.
  27. Perform a steering wheel caster sweep, then center and level the steering wheel, and then install the steering wheel lock to keep the steering wheel in position.
    G00644078Courtesy of TESLA, INC.
  28. Raise the alignment rack higher so as to work under the vehicle.
    G00644079Courtesy of TESLA, INC.
  29. Remove the steering wheel lock, perform a caster sweep of the steering wheel, re-center the steering wheel with the level, and then reinstall the steering wheel lock.

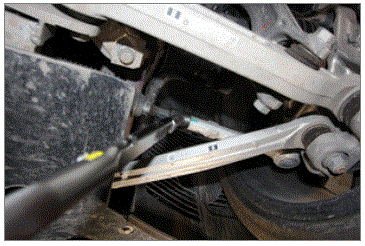

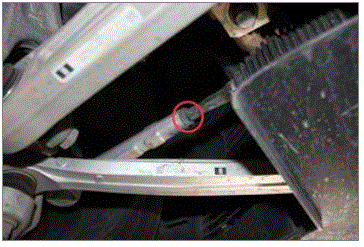

  30. Perform the front toe adjustment as necessary.

    70 Nm (51.6 lbs-ft)

    G00644089Courtesy of TESLA, INC.
    G00644090Courtesy of TESLA, INC.

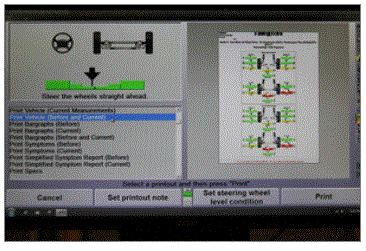

  31. Print the vehicle alignment summary, including the before and after results.
    NOTE: Repeat the adjustment for any parameter that is not within specification.
    G00644091Courtesy of TESLA, INC.
  32. Install the mid aero shield panel. See PANEL - AERO SHIELD - MID (REMOVE AND REPLACE) .
  33. Install the LH and RH shear plate.
    NOTE: LH
    G00643341Courtesy of TESLA, INC.
    NOTE: RH
    G00643342Courtesy of TESLA, INC.
  34. Remove the alignment heads from all four wheels.
  35. Clear the angle offsets using Toolbox 3 (substeps below) or Service Mode (next step):
    1. In Toolbox 3, click the Actions  tab, type "Angle-Offsets" into the search field, click PROC_EPAS_ESP_CLEAR-ANGLE-OFFSETS  , click Run  , and allow the routine to complete.
    2. Skip to step 37  .
  36. Using Service Mode:
    1. On the vehicle touchscreen, touch Service Mode  (spanner icon).
    2. Touch Chassis  (damper icon) and then touch Alignment & Tires  .
    3. Touch Clear Applied Offset  , and then touch Run  .
  37. Disconnect the laptop with Toolbox 3 from the vehicle. See Toolbox 3 (Connect And Disconnect) .
  38. Remove the steering wheel lock, the brake pedal depressor, the steering wheel level, and then place the vehicle into Park.
  39. Use exterior door handle to release the driver door latch.
  40. Remove the wheel chocks.
  41. Remove the vehicle from the alignment rack.
  42. Exit Service Mode.
  43. Test drive the vehicle.
