Fender Alignment: Procedure

Identify any adjacent panels that may also need adjustment to successfully align the fender to within specification.
NOTE: If multiple panels require adjustment, the best practice is to start with a panel that is adjacent to a fixed panel on the vehicle (e.g. quarter panel or roof rail).
NOTE:
The optimal adjustment order is the following:
- Trunk/liftgate
- Rear doors
- Front doors
- Fenders
- Hood
Identify what directions the fender needs to be adjusted to bring it within specification.

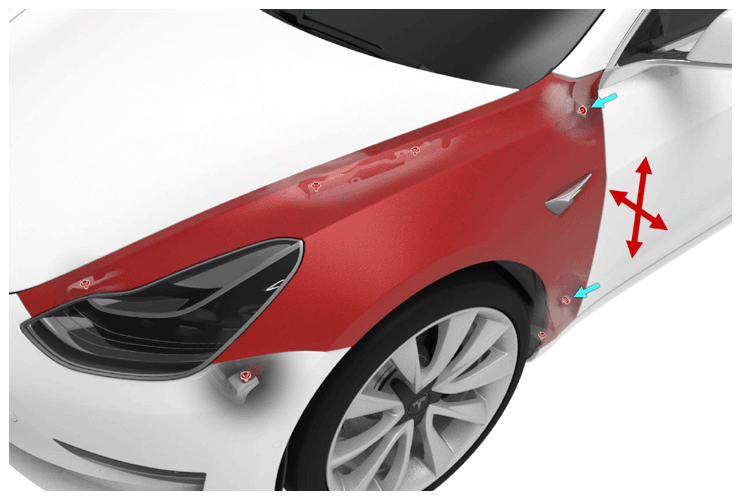

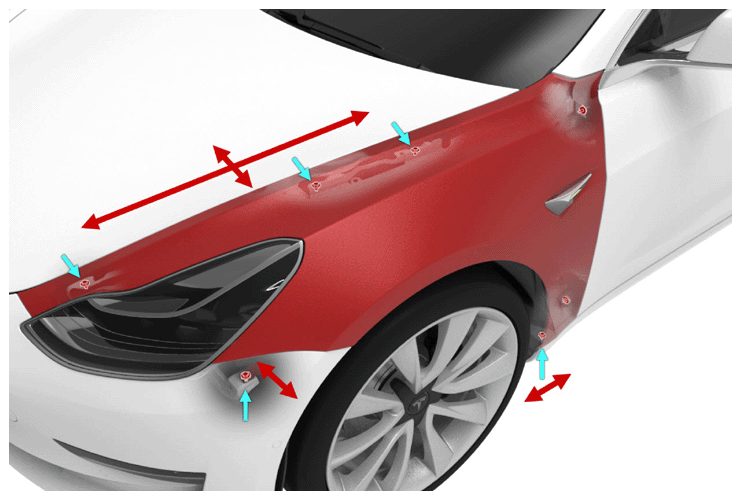

Use the images to identify the hardware that needs to be loosened to adjust the fender position in the necessary directions.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Loosen the necessary bolts just enough to enable adjusting the fender with a light application of force.
Retighten them.
Check to see if the fit has improved.
CAUTION: Adjust the fender in only one direction at a time to reduce risk of damage from panels contacting each other during the adjustment process.
Repeat the process until the fender fit is within gap and flushness specifications.
Re-torque all hardware that was loosened back to factory values.
