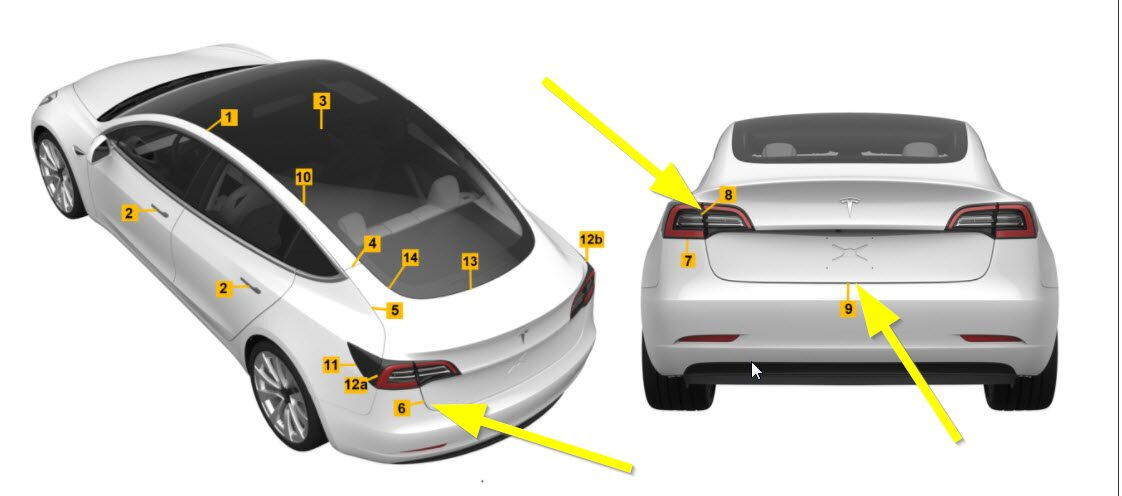

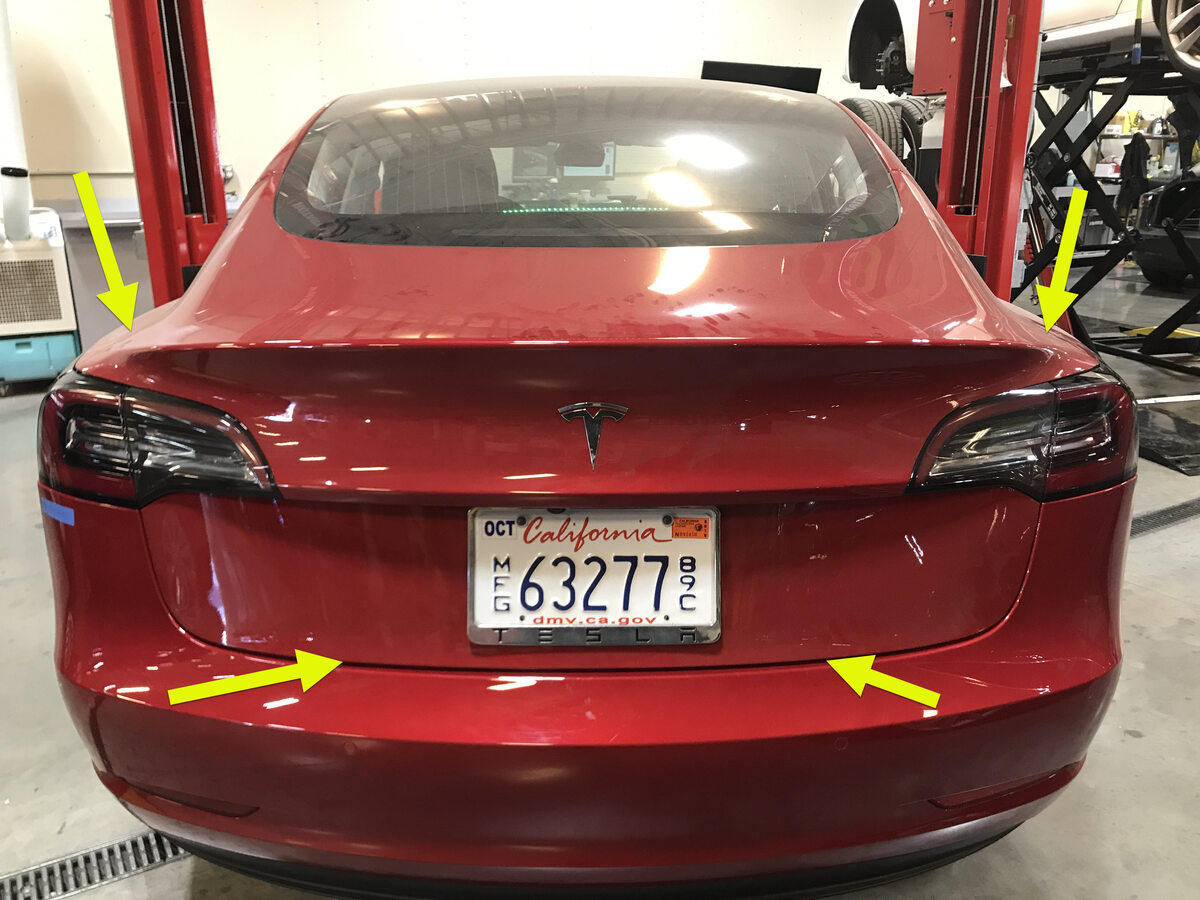

- Perform trunk gap and flush check.
NOTE:
Refer to CVIS for latest specifications.
 Courtesy of TESLA, INC.
|

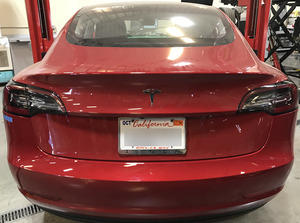

- Open trunk from exterior switch
 Courtesy of TESLA, INC.
|

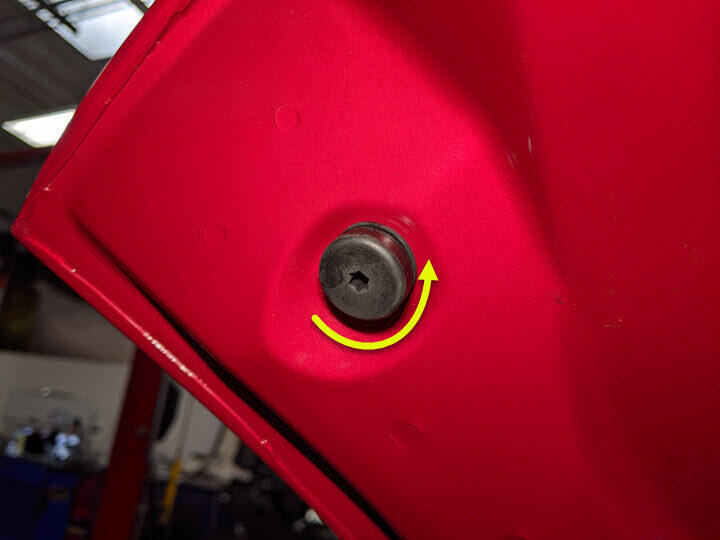

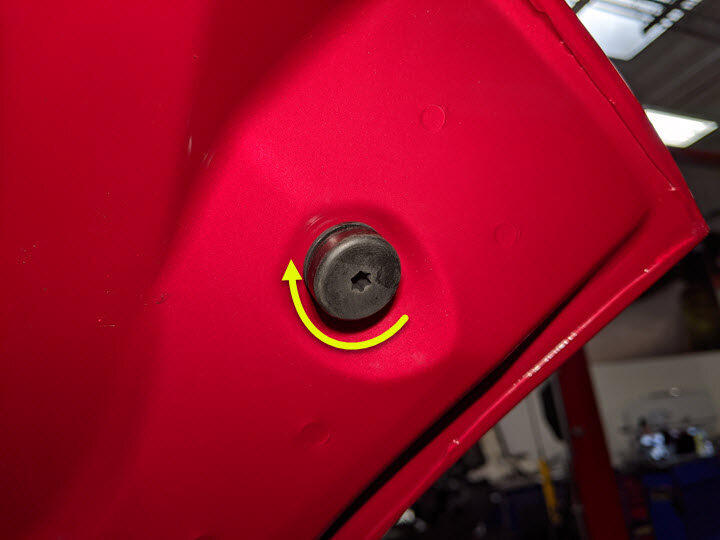

- Retract LH overslam bumper to home position.
NOTE:
1x overslam bumper. Turn clockwise until fully seated onto trunk.
 Courtesy of TESLA, INC.
|

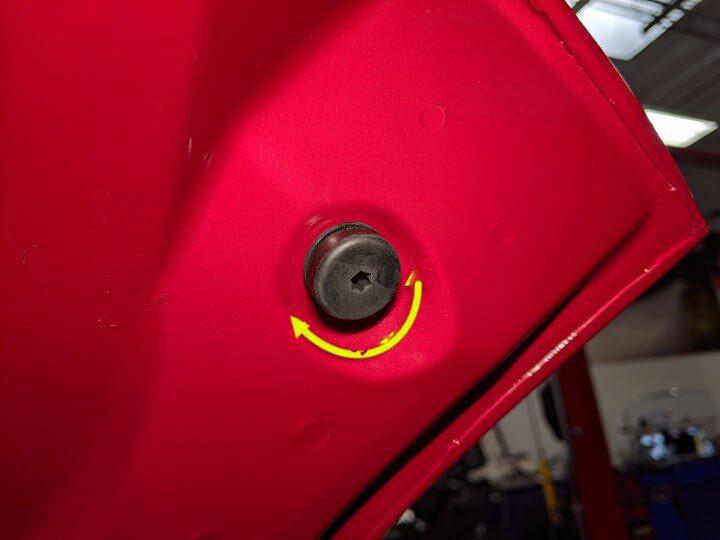

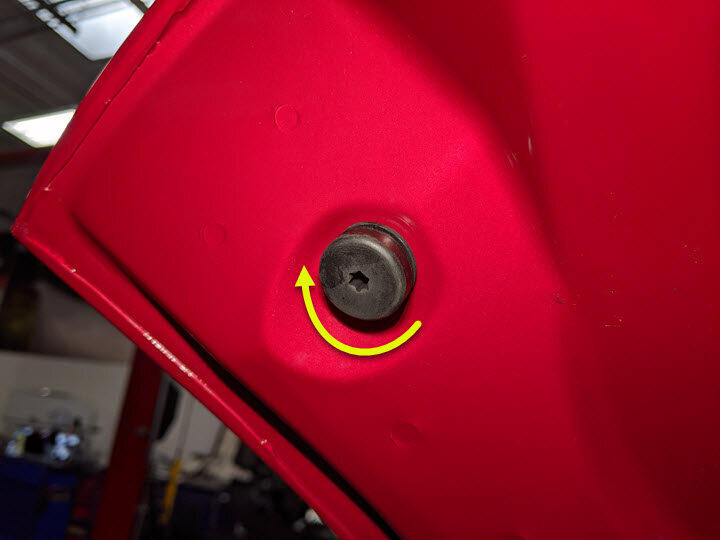

- Retract RH overslam bumper to home position.
NOTE:
1x overslam bumper. Turn clockwise until fully seated onto trunk.
 Courtesy of TESLA, INC.
|

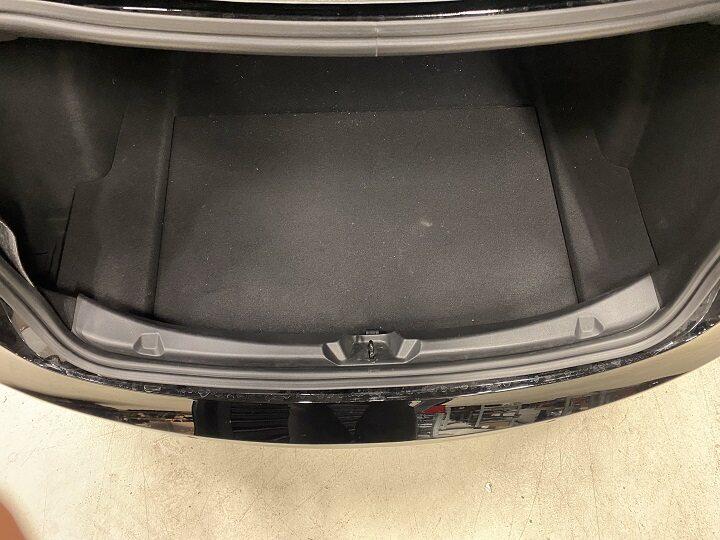

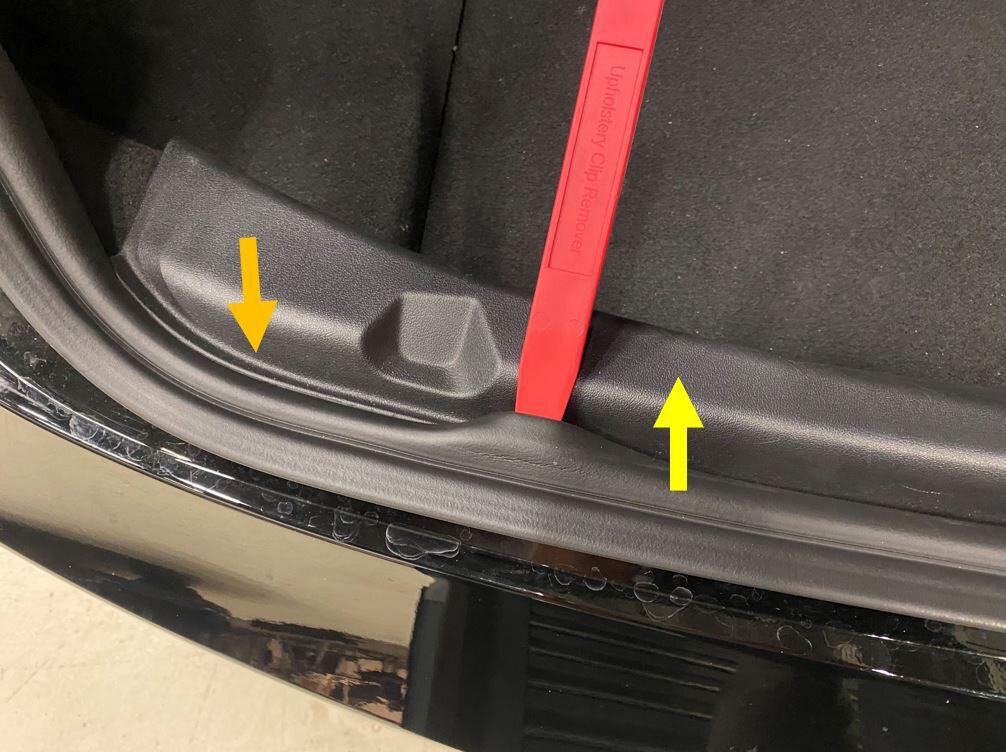

- Remove trunk sill trim assembly
NOTE:
4x clips. Pull corner upward release clip on the end the away from body for remaining clips.
 Courtesy of TESLA, INC.
|

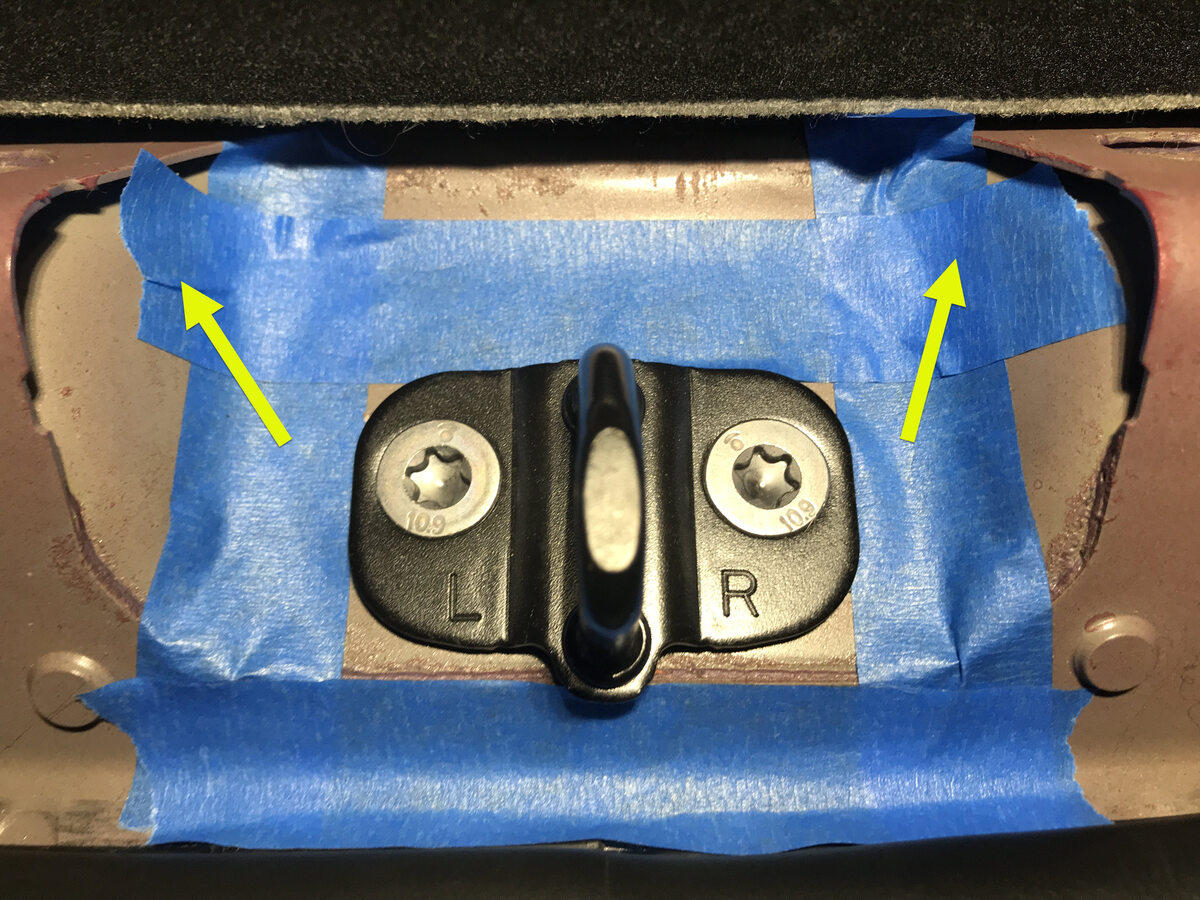

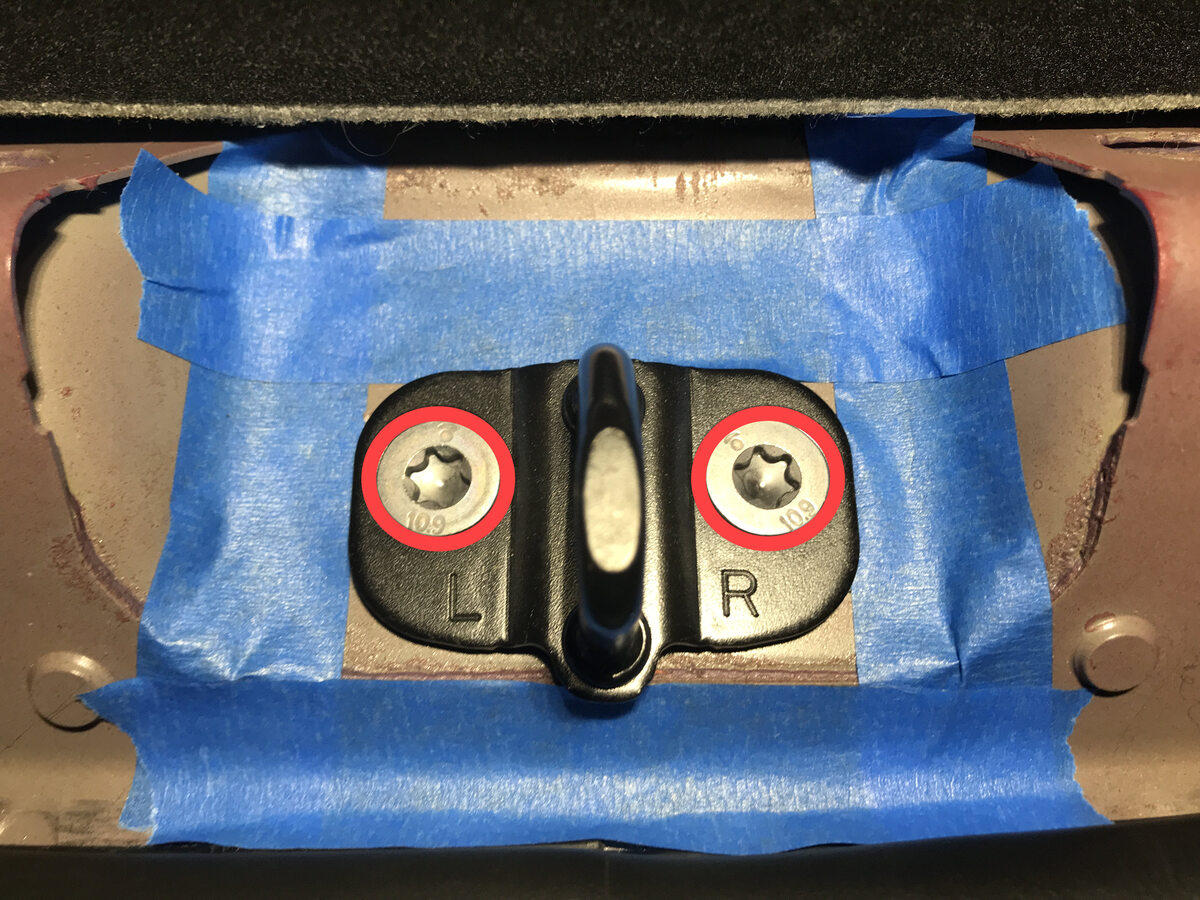

- Mark the location of trunk striker to body.
 Courtesy of TESLA, INC.
|
- Remove the trunk striker.
NOTE:
2x bolts, T45, 24 Nm
 Courtesy of TESLA, INC.
|

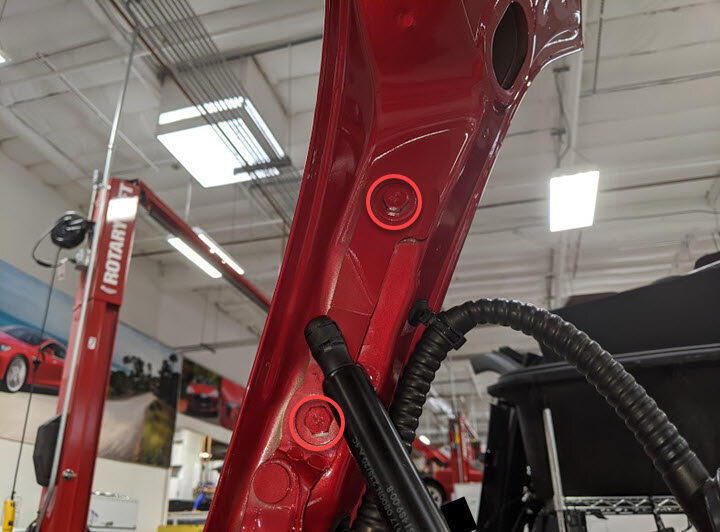

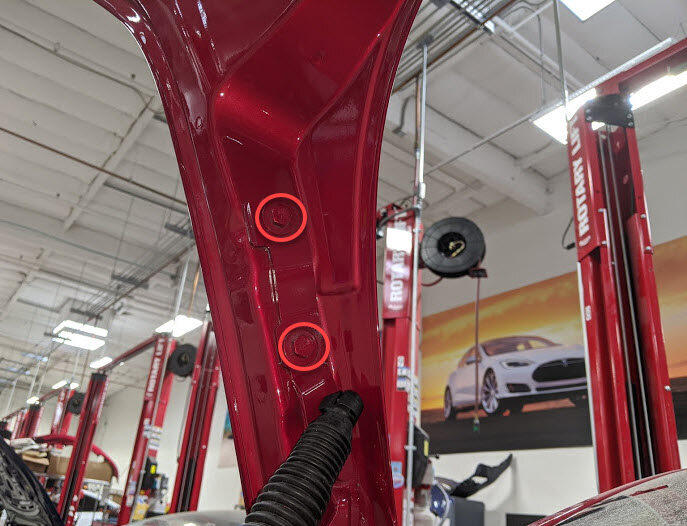

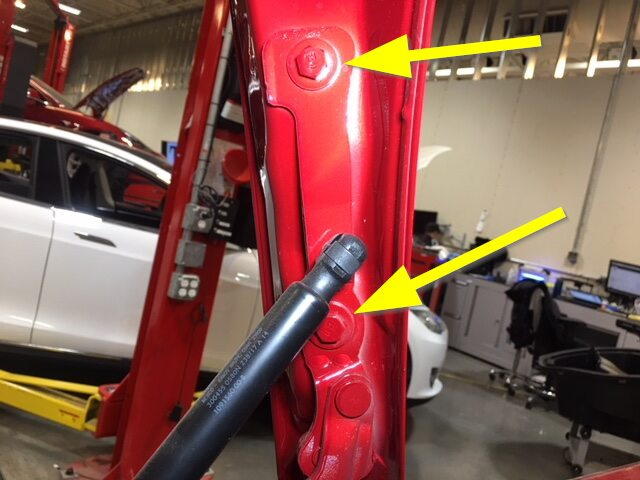

- Loosen bolts securing hinge onto trunk assembly
NOTE:
4x bolts, 13mm, 24 Nm, Perform adjustment as necessary, Recommend assistance
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Tighten bolts securing hinge onto trunk assembly.
NOTE:
4x bolts, 13mm, 24 Nm, Hand tighten bolts securing hinge onto trunk assembly
Courtesy of TESLA, INC.
|
Courtesy of TESLA, INC.
|

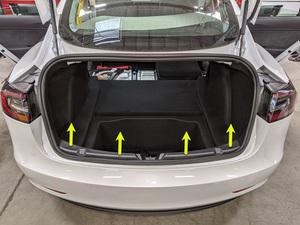

- Close the trunk to check gap / flush.
NOTE:
Perform adjustment as necessary, Recommend assistance if necessary, Refer to CVIS for latest specifications
Courtesy of TESLA, INC.
|
- Adjust LH overslam bumper as necessary.
NOTE:
1x overslam bumper.
 Courtesy of TESLA, INC.
|
- Adjust RH overslam bumper as necessary.
NOTE:
1x overslam bumper.
 Courtesy of TESLA, INC.
|
- Torque bolts securing hinge onto trunk assembly.
NOTE:
4x bolts, 13mm, 24 Nm
Courtesy of TESLA, INC.
|
Courtesy of TESLA, INC.
|
- Align trunk striker to marked position and loosely install bolts securing to body.
NOTE:
2x bolts, T45, 24 Nm
Courtesy of TESLA, INC.
|
- Close trunk to check for gap / flush and trunk closes as expected.
NOTE:
Adjust striker if necessary. Open trunk when done.
 Courtesy of TESLA, INC.
|
- Torque bolts securing the trunk striker to trunk.
NOTE:
2x bolts, T45, 24 N.m (17.7 ft-lbs.).
Courtesy of TESLA, INC.
|
- Remove masking tape around the trunk striker area.
 Courtesy of TESLA, INC.
|

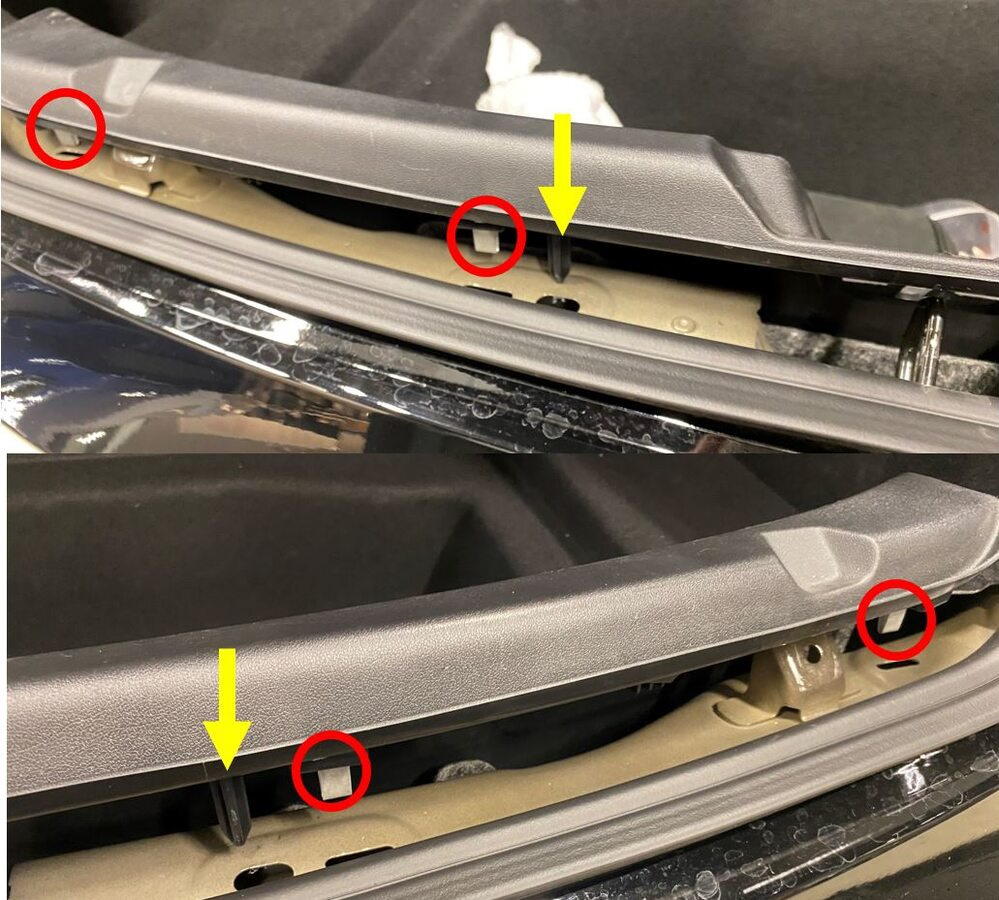

- Install trunk sill trim assembly.
NOTE:
4x clips. Align the latch with center slot then 2 locator to their slot and then press to secure the clips. Adjust the seal to overlap the trim.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Clean both trunk hinge bolts, washer, and surrounding area prior to paint touch up.
NOTE:
Allow to dry for 1 minute.
 Courtesy of TESLA, INC.
|
- Apply touch up paint to head of LH trunk hinge bolts.
NOTE:
2x bolts. Make sure to shake touch up paint before applying.
Courtesy of TESLA, INC.
|
- Apply touch up paint to head of RH trunk hinge bolts.
NOTE:
2x bolts. Make sure to shake touch up paint before applying. Allow sometime to dry to close trunk.
Courtesy of TESLA, INC.
|
- Close trunk.
