Firmware Update - Mobile Connector

Last modified: 17/11/2023 14:13:31

Update

NOTE: Charge the vehicle to at least 55% before continuing with this procedure.

Open the LH front door.
Connect the Mobile Connector to a wall outlet.
Use the button on the Mobile Connector to open the charge port door, and then connect the Mobile Connector to the vehicle.

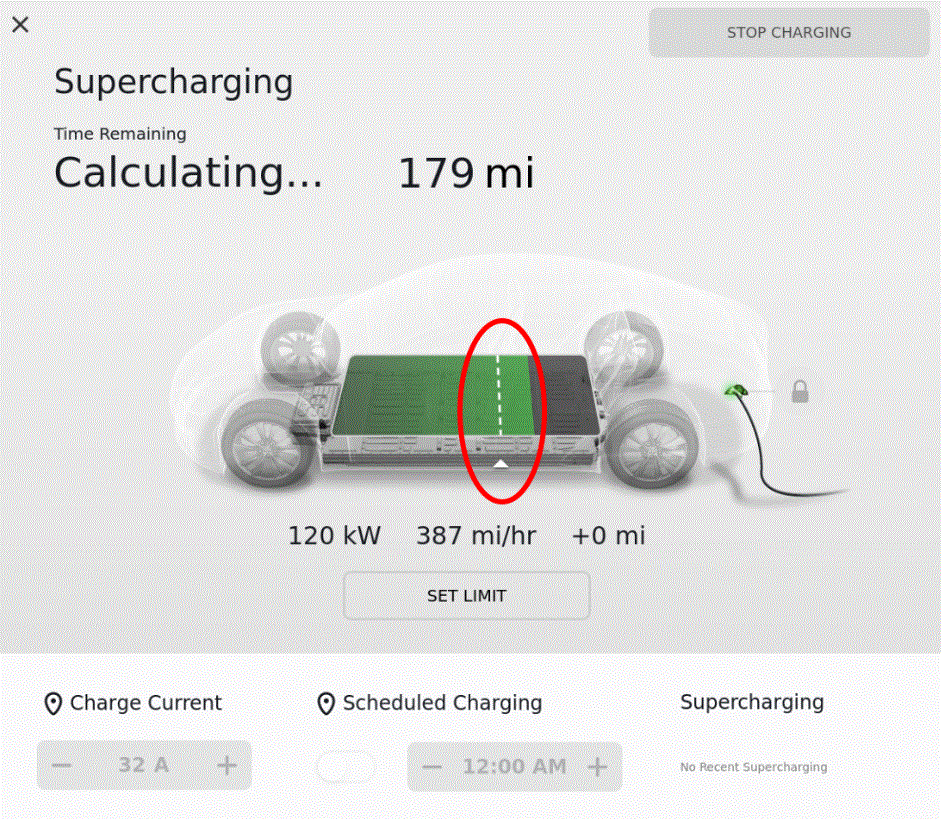

On the touchscreen charging menu, touch Set Limit , and then set the charge limit below the current charge level.

Courtesy of TESLA, INC.
The Mobile Connector firmware update will begin within 1 minute.
NOTE: A notification will appear on the instrument panel, stating "Charge Connector Update in Progress".
The Mobile Connector firmware update will finish within 3 minutes.
NOTE: Ignore any charging related error messages that appear on the instrument panel/touchscreen.
Disconnect the Mobile Connector from the vehicle, and then close the charge port door.
Disconnect the Mobile Connector from the wall outlet.
Connect the Mobile Connector to the wall outlet.
Use the button on the Mobile Connector to open the charge port door, and then connect the Mobile Connector to the vehicle.

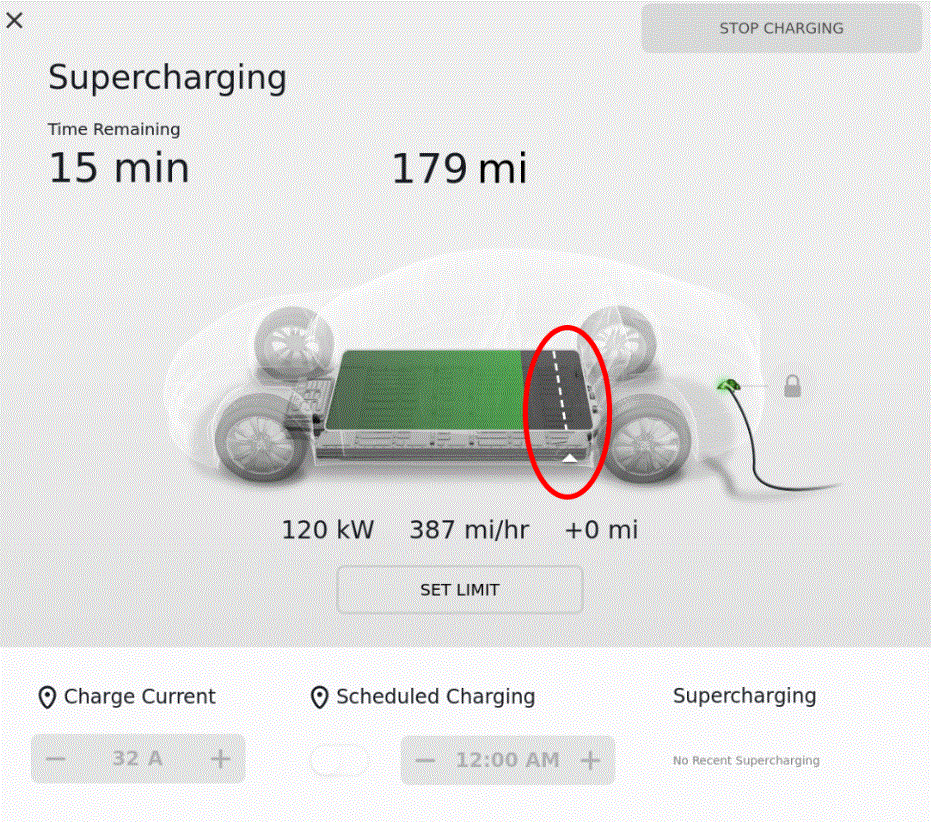

On the touchscreen charging menu, touch Set Limit , and then set the charge limit above the current charge level.

Courtesy of TESLA, INC.
Make sure that the vehicle begins charging.
Disconnect the Mobile Connector from the vehicle, and then close the charge port door.
Disconnect the Mobile Connector from the wall outlet.
