Car Computer - Remove and Install: Install

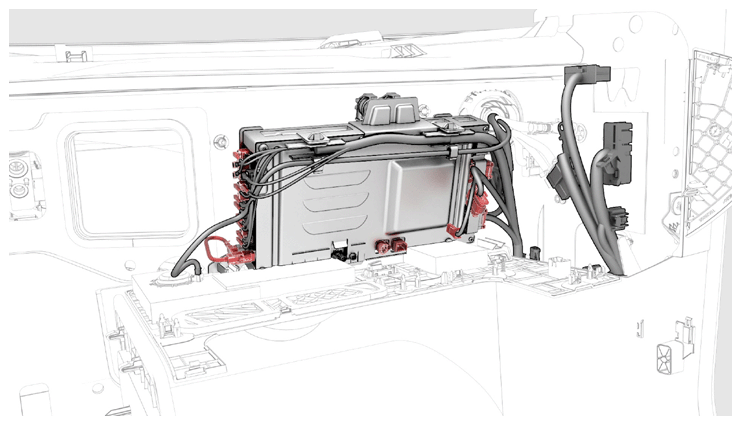

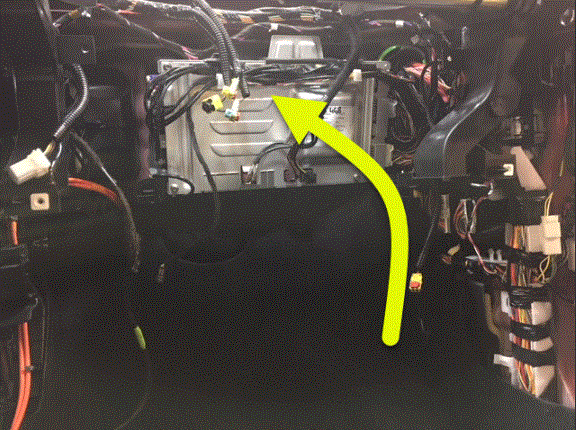

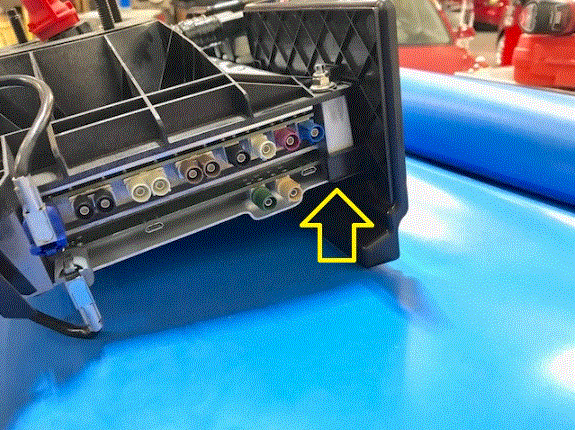

- Bring the car computer to where it installs into the vehicle, and then connect the electrical harness connectors (x21) to the car computer.CAUTION: Avoid spilling coolant on the electrical connectors.CAUTION: Take care not to damage the passenger airbag harness and connectors during installation.

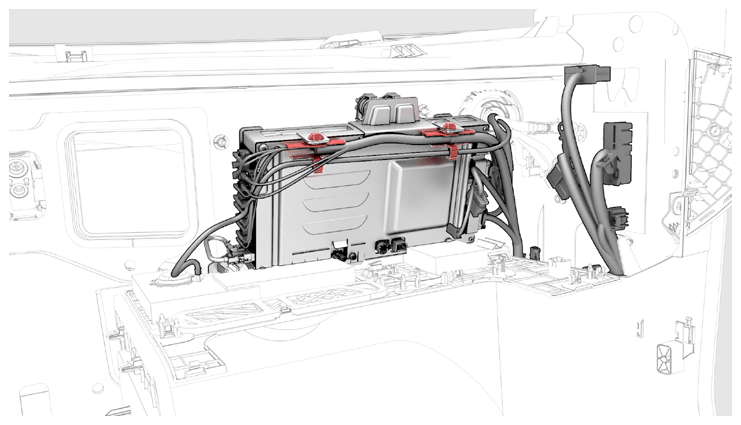

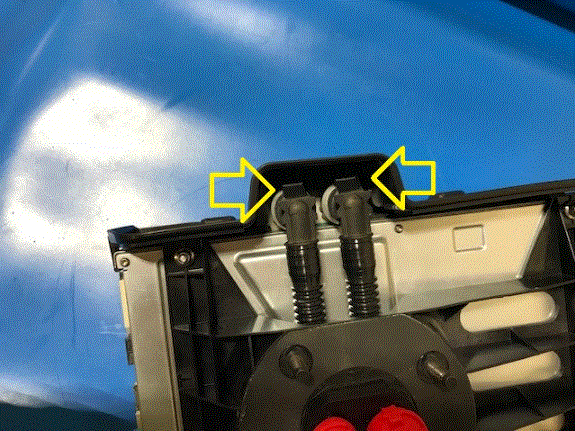

- Fasten the clips that attach the electrical harness to the car computer.

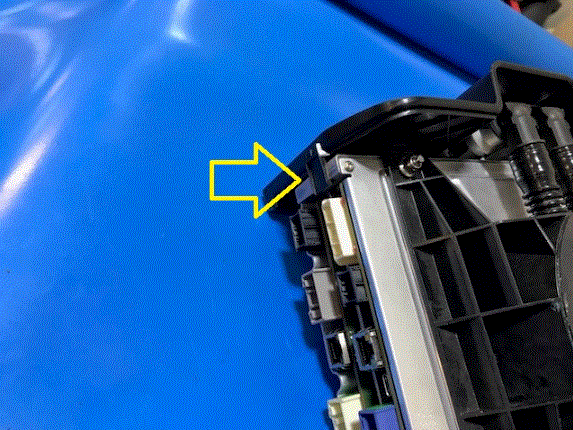

- Install the car computer shroud onto the car computer.

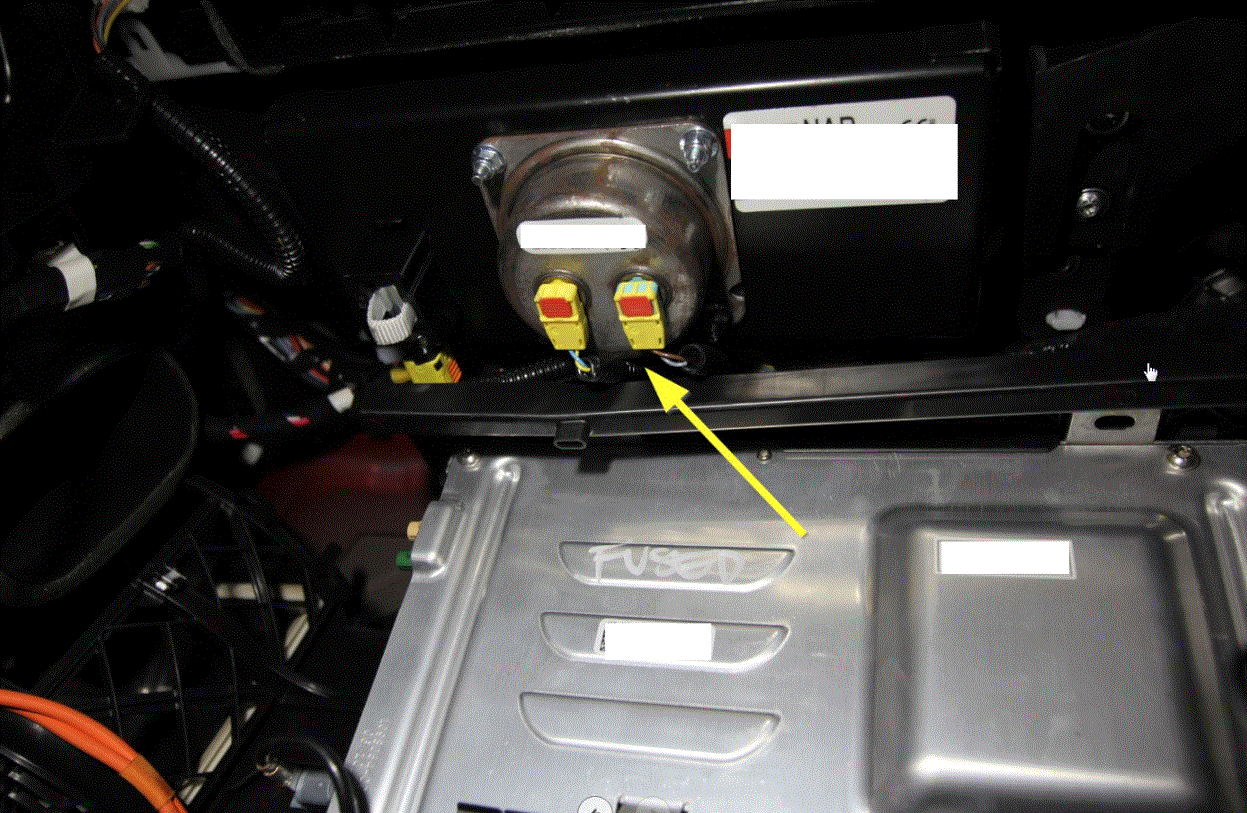

- Slide the car computer into position on the bulkhead.CAUTION: Use caution during the installation due to minimal clearance between the shroud and passenger airbag connectors and harness.

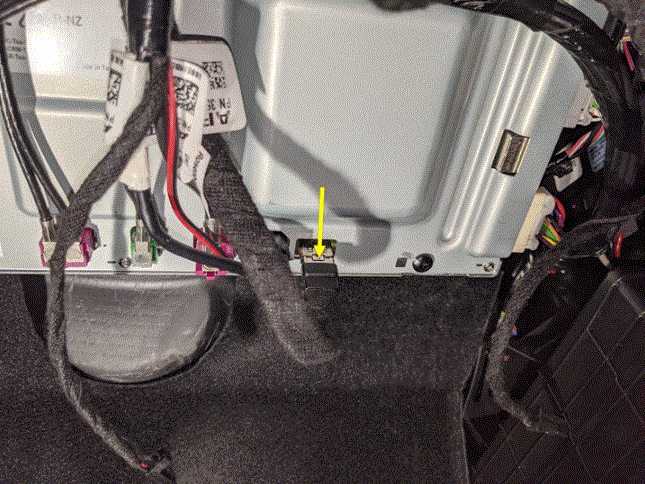

- Connect the glove box USB cable to the car computer.

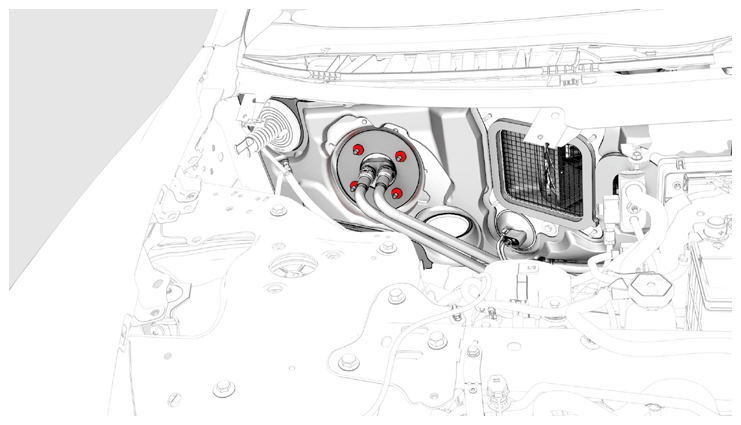

- Install new nuts (x4) to attach the car computer to the body.
7.1 N.m (5.2 ft-lbs)

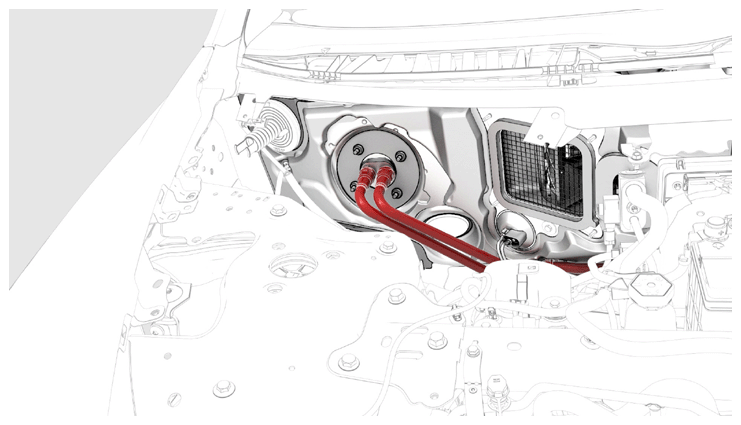

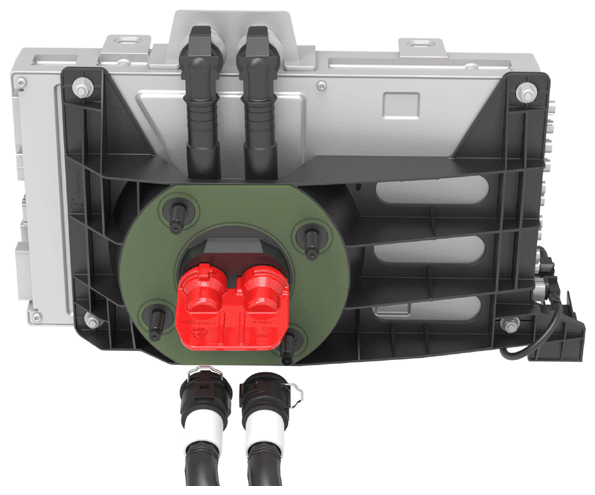

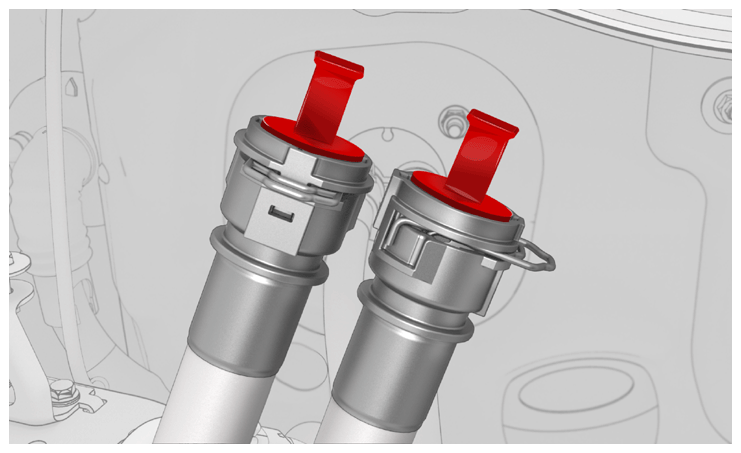

- Remove the plugs from the car computer and coolant hoses, and then secure the hose to the car computer.

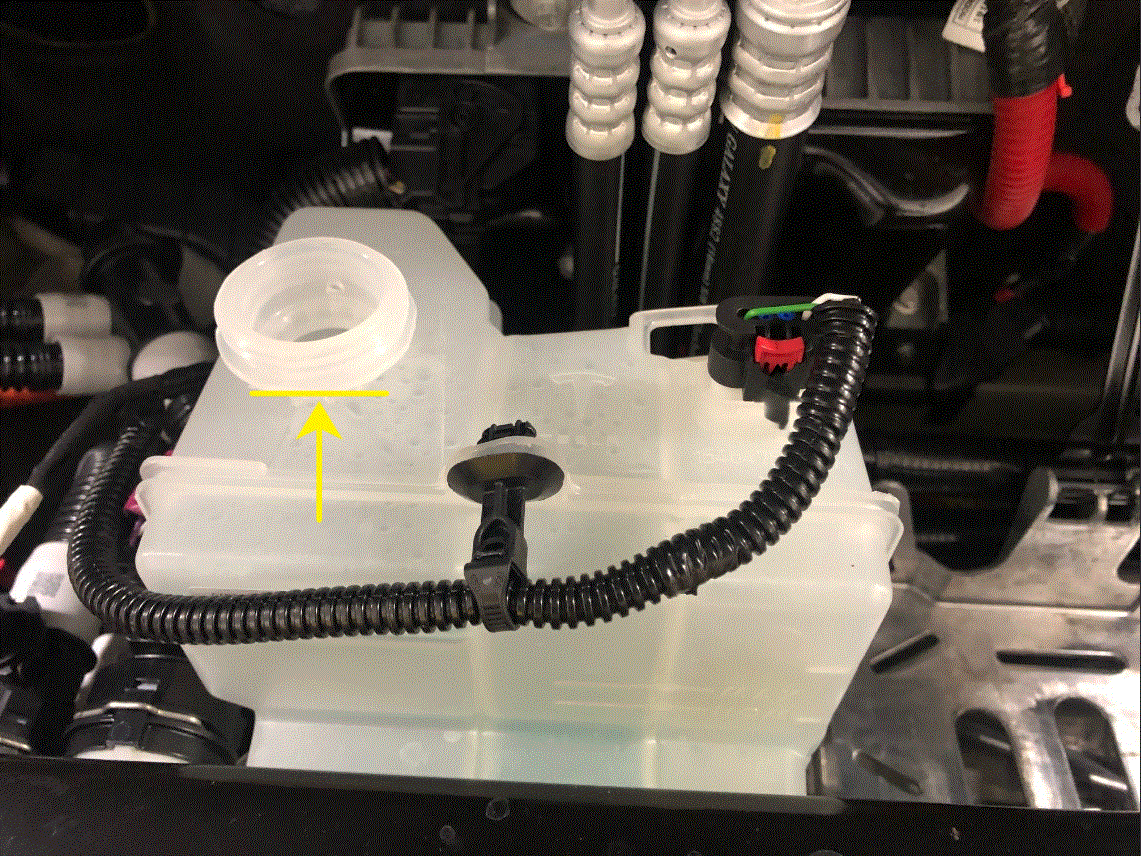

- Remove the coolant bottle cap, and then fill the coolant bottle to the base of the neck as indicated.
- Remove the absorbent material from below the car computer coolant hose connection points and car computer.
- If equipped, install the knee airbag assembly. See AIRBAG - KNEE - FRONT PASSENGER (REMOVE AND REPLACE) .
- Connect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
- Connect a laptop with Toolbox 3 to the vehicle.
- In Toolbox, click the Actions tab, and then search for "Air Purge".
- Click TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGE, click Run , and allow the routine to complete.
- Disconnect Toolbox and remove the laptop from the vehicle.

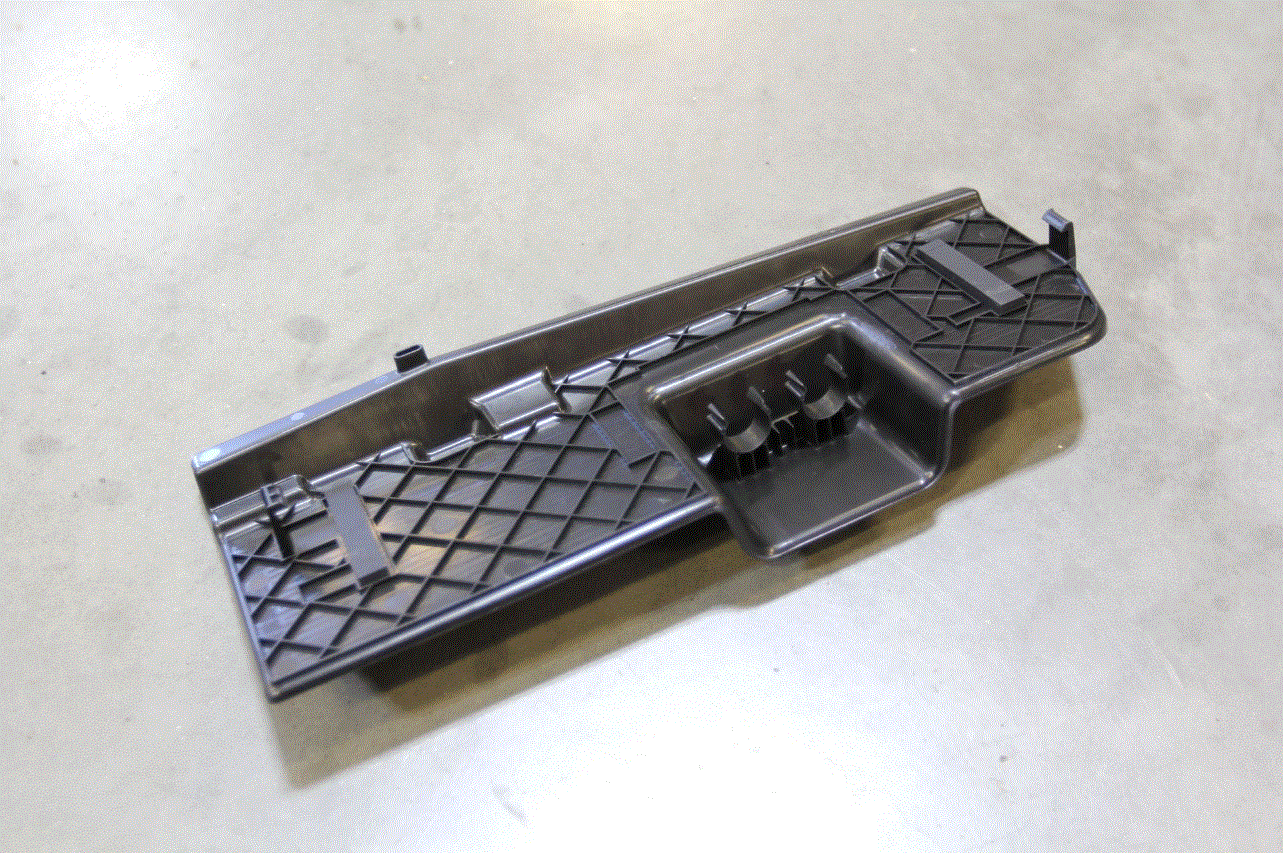

- Install the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE)
- Inspect the coolant level and top off as necessary, and then install the coolant bottle cap.
- Install the fresh intake duct. See Duct - Fresh Intake (Remove and Replace).
- Install rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Move the front passenger seat to the original position.
- Raise all the windows and close all the doors.
