Car Computer - Remove and Install: Notes

Last modified: 22/11/2023 13:44:59

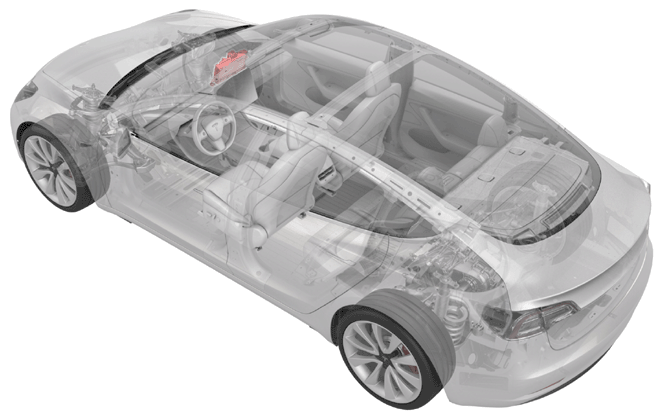

Fig 1: Car Computer Component Location

Courtesy of TESLA, INC.

NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

CAUTION: Do not service the car computer and drive inverter concurrently. First, service the car computer. After installation of the car computer has completed successfully, then service the drive inverter.

NOTE: This procedure removes and then installs the same car computer. To replace a car computer, refer to Service Documents.

Revision History:

2023-07-14: Updated to the latest validation.

1119171-00-A Plug,Car Computer Fluid Port
1135762-00-A Kit, Svc Plug, Cooling Hose, Model 3
