Determine Defect Risk Level

Inspect the defect(s) and determine whether they are low or high risk.
- If the defect(s) are low risk, continue to the next step.
- If the defect(s) are high risk, escalate the repair to a body shop.
- Low Risk Defect Characteristics
  - Less than 1.5 mm diameter on flat or near-flat body panels
  - Less than 1.0 mm diameter on or near character lines
  - High or low spots
  - Basic surface paint inclusions
  - Holograms
  - Swirls
  - Solvent pop
  - Overspray
  - Light to medium depth scratches
NOTE:

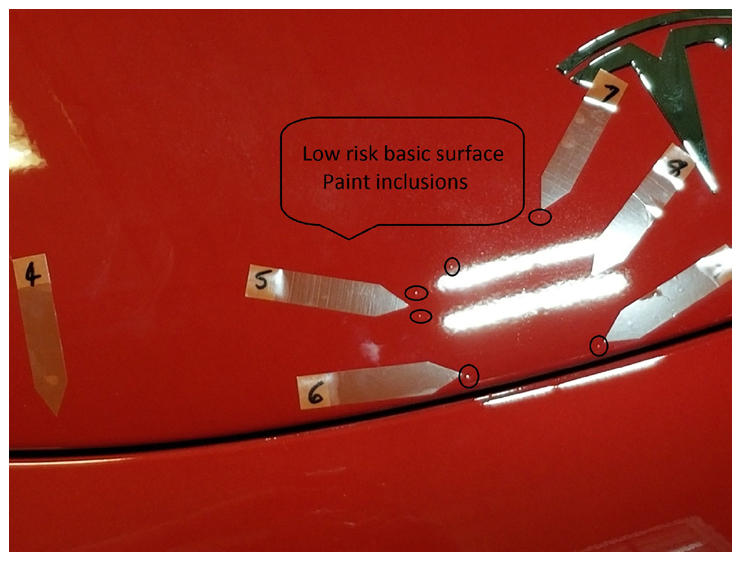

Low Risk Basic Surface Paint Inclusions (1 Of 2)

Courtesy of TESLA, INC.

NOTE:

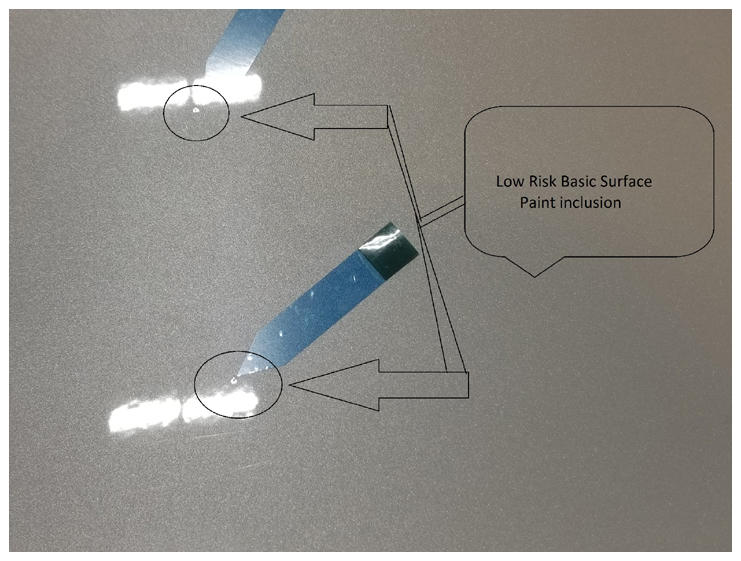

Low Risk Basic Surface Paint Inclusions (2 Of 2)

Courtesy of TESLA, INC.
- High Risk Defect Characteristics
  - Larger than 2.0 mm diameter on flat or near-flat body panels
  - Larger than 1.0 mm diameter on or near character lines
  - Off color inclusions
  - High or low spots larger than 2.0 mm
NOTE:

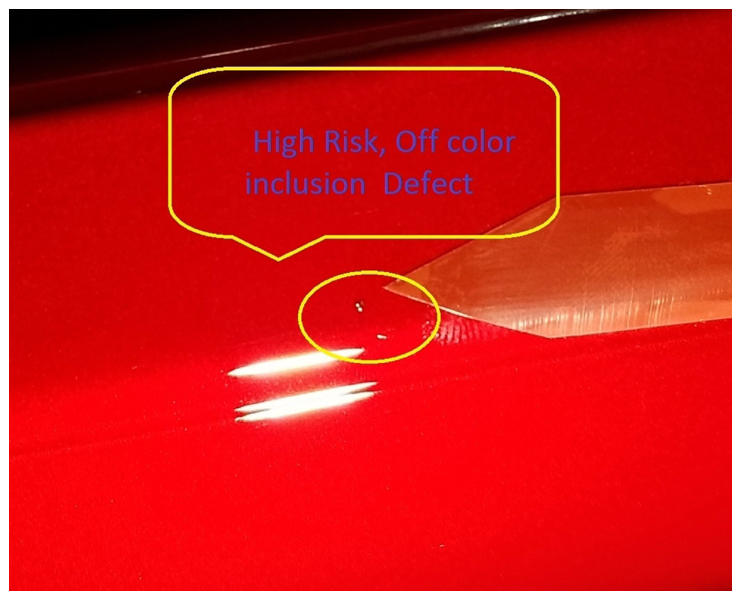

High Risk Off Color Paint Inclusion

Courtesy of TESLA, INC.

NOTE:

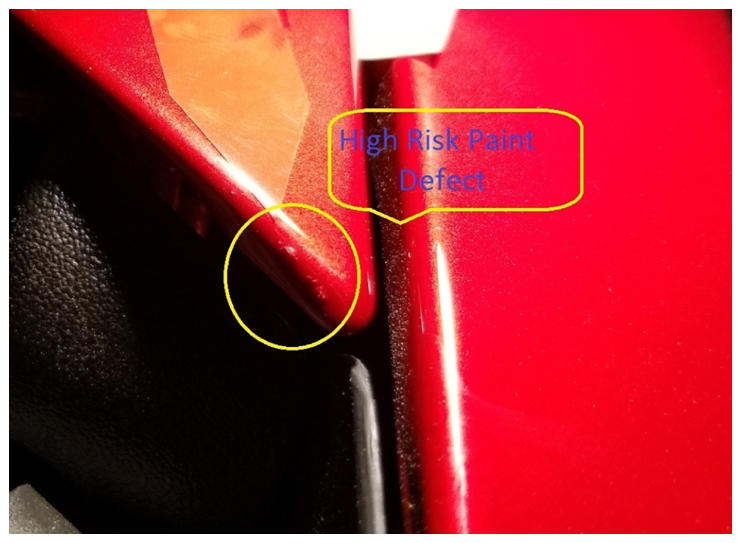

High Risk Defect On Character Line

Courtesy of TESLA, INC.
