Wheel Alignment
NOTE:
All specifications given in degrees. To convert from degrees to minutes and seconds, multiply the decimal after the whole number by 60. The whole number becomes the minute. Take the remaining decimal and multiply it by 60 to get the second. For example, 1.75° would be 1° and 45 min (.75*60). 0.17° would be 10 min and 12 seconds. (0.17*60 = 10.2;.2*60 = 12).
NOTE:
The Model 3 and Model Y vehicles do not have dedicated adjustment points for camber and caster. Instead, camber and caster are adjusted by manipulating the suspension lash and slop. The real-world accuracy of these adjustments is achieved by installing 68 kg (150 lbs) ballast bags to simulate the presence of a driver and front passenger. Performing this service procedure without ballast bags compromises the real-world accuracy of the adjustments.
COIL SUSPENSION VEHICLES
| Parameter | With Ballast | Without Ballast | ||
|---|---|---|---|---|
| Front | Rear | Front | Rear | |
| Camber | -0.50° +/- 0.45° | -1.00° +/- 1.0° | -0.30° +/- 0.45° | -0.90° +/- 1.0° |
| Camber Split | +/- 0.60° | +/- 0.80° | +/- 0.60° | +/- 0.80° |
| Caster | 5.70° +/- 1.0° | Not applicable | 5.70° +/- 1.0° | Not applicable |
| Caster Split | +/- 1.0° | Not applicable | +/- 1.0° | Not applicable |
| Individual Toe | OUT 0.05° +/- 0.15° | IN 0.20° +/- 0.15° | IN 0.06° +/- 0.05° | IN 0.18° +/- 0.05° |
| Toe Split | +/- 0.10° | +/- 0.10° | +/- 0.10° | +/- 0.10° |
| Track Width (at wheel center height) | 1580 mm | 1580 mm | 1580 mm | 1580 mm |
| Non-Performance Coil Ride Height
NOTE:

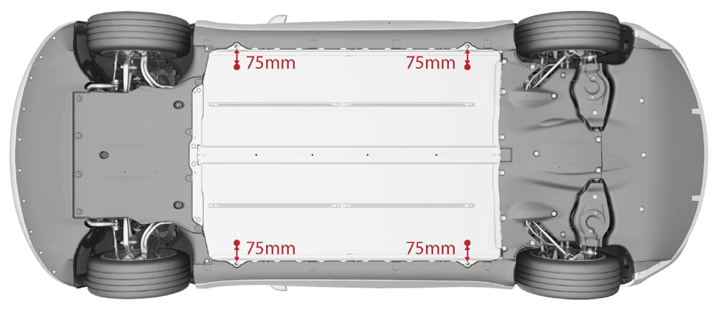

When measuring the coil ride height, measure 75 mm inward from the ski hole in each corner of the Battery. See the image below.
|
141 +/- 5 mm | 148 +/- 5 mm | 153 +/- 5 mm | 157 +/- 5 mm |
| Performance Coil Ride Height
NOTE:
When measuring the coil ride height, measure 75 mm inward from the ski hole in each corner of the Battery. See the image below.
|
139 +/- 3 mm | 146 +/- 3 mm | 151 +/- 3 mm | 155 +/- 3 mm |
| Wheelbase | 2875 mm | |||
