Module - Restraint Control (Non-Heat Pump) Remove and Replace: Notes

Last modified: 04/09/2023 19:37:53

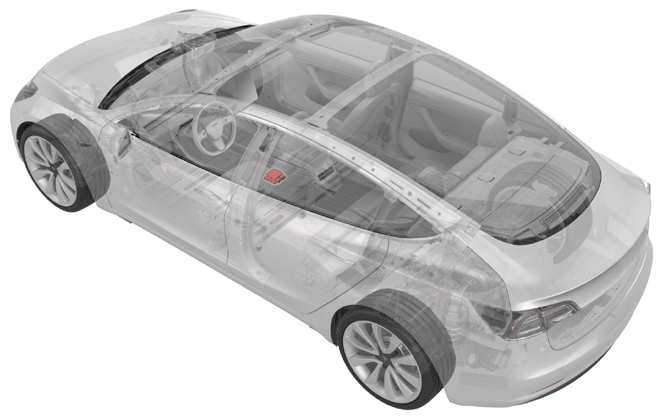

Fig 1: Restraint Control Module Component Location

Courtesy of TESLA, INC.

NOTE: See Personal Protection to make sure to wear proper PPE when performing the below procedure.

WARNING: Make sure 12V/LV power has been disconnected for at least 2 minutes before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see AIRBAG AND SUPPLEMENTARY RESTRAINT SYSTEM (SRS) PRECAUTIONS .

WARNING: Supplementary Restraint System (SRS) components can be hazardous if not handled properly. For more information on SRS precautions, see AIRBAG AND SUPPLEMENTARY RESTRAINT SYSTEM (SRS) PRECAUTIONS .

WARNING:

While performing any Supplementary Restraint System (SRS) related repairs, it is important to disconnect 12V/LV power. If the vehicle's 12V/LV power is NOT disconnected and the Restraint Control Module is removed or disturbed, this can result in the deployment of the vehicle's airbags.Supplementary restraint system (SRS) components can be hazardous if not handled properly.
