Adjust Front Toe
- If the front toe is within specification and does not require adjustment, complete the alignment. See COMPLETE THE ALIGNMENT .

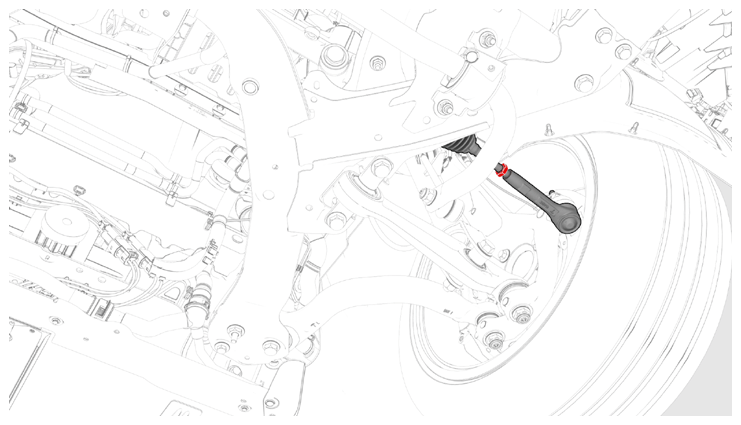

- Loosen the jam nut on the LH inner tie rod.

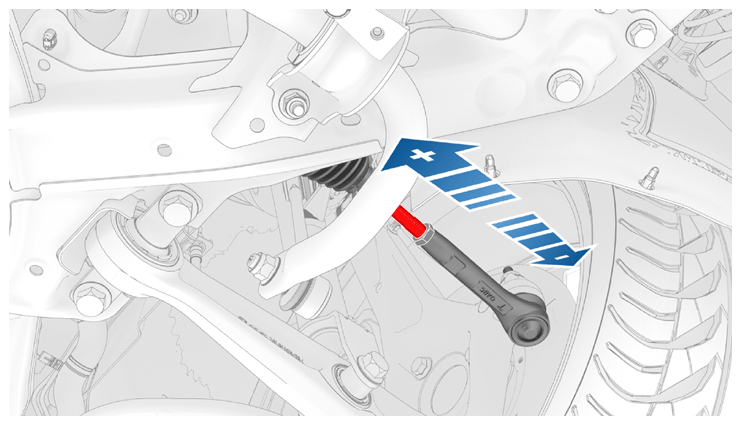

- Rotate the LH inner tie rod to adjust the front LH toe to specifications. See WHEEL ALIGNMENT
.
- To add positive toe in, move the tie rod end in toward the centerline.
- To add negative toe out, move the tie rod end out from the centerline.
- When the front LH toe is correct, tighten the jam nut on the LH inner tie rod.
80 N.m (59.0 ft-lbs)
- Perform step 2 through step 4 for the RH side of the vehicle if necessary.
- Complete the alignment. See COMPLETE THE ALIGNMENT .
