Adjust Rear Toe
- If the rear toe is within specification and does not require adjustment, adjust the front camber and caster. See ADJUST FRONT CAMBER AND CASTER .

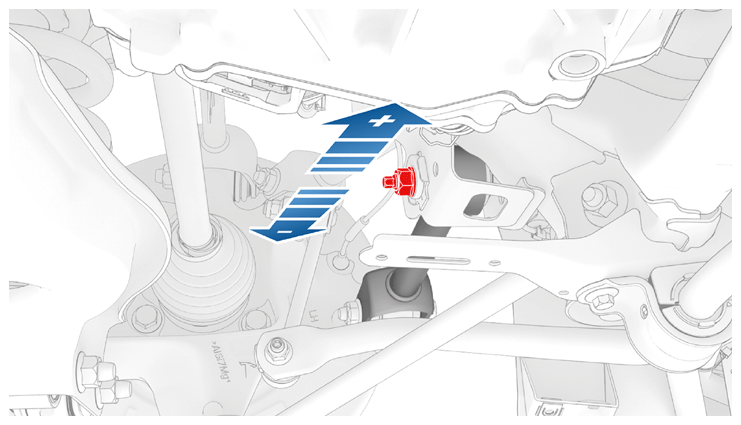

- Loosen the nut on the rear LH toe link to subframe bolt.
 Courtesy of TESLA, INC.
|
- Rotate the rear LH toe link to subframe bolt to adjust the rear LH toe to specifications. See WHEEL ALIGNMENT
.
- To add positive toe in, move the link in toward the centerline.
- To add negative toe out, move the link out from the centerline.
- When the rear LH toe is correct, tighten the nut.
85 N.m (62.7 ft-lbs)
- Perform step 2 through step 4 for the RH side of the vehicle if necessary.
- Adjust the front camber and caster. See ADJUST FRONT CAMBER AND CASTER .
