Car Computer - HW3 - Remove And Install: Install
- Position the car computer into the vehicle, and then install the bolts (x2) and nut that attach the car computer to the vehicle.
7 Nm (5.2 lbs-ft)
NOTE: The bolts are torqued to 7 Nm. The nut is torqued to 8 Nm.Tip: Use of the following tool(s) is recommended:
- 10 mm socket

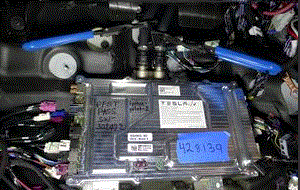

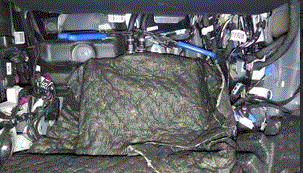

- Place coolant absorbent mats or rages around the car computer, remove the coolant plugs, and then secure the coolant hoses (x2) to the car computer coldplate assembly.NOTE: Perform a pull-push-pull test on each hose coupling.

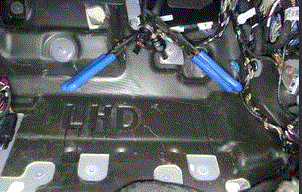

- Remove the coolant hose clamps to the coldplate hoses (x2).NOTE: Place coolant absorbent mats or rags around the car computer. Clean any residual fluid and inspect for leaks.
- Connect the connectors (x3) at the RH side of the AP motherboard, and then secure the connector locks.

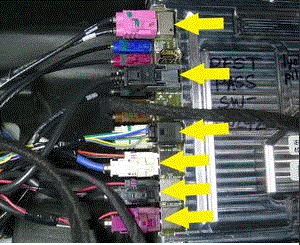

- Connect the connectors (x6) at the RH side of the entertainment motherboard, and then secure the connector locks.

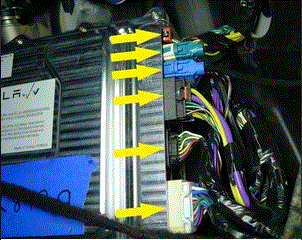

- Connect the connectors (x7) at the LH side of the AP motherboard, and then secure the connector locks.

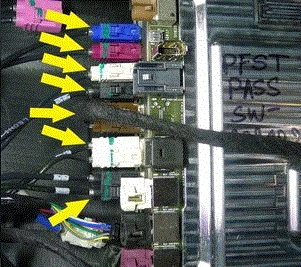

- Connect the connectors (x6) at the LH side of the entertainment motherboard, and then secure the connector locks.

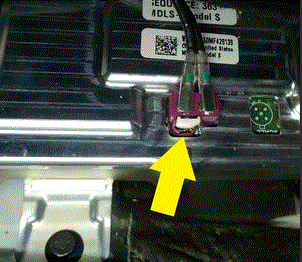

- Connect the connector to the connectivity module, and then secure the connector lock.NOTE: Note Slide the lock underneath the connector.

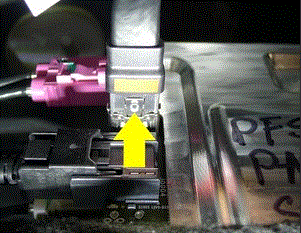

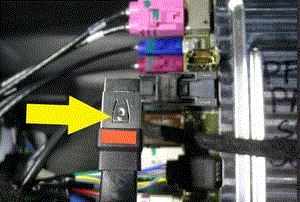

- Connect the connector to the gaming MCU.NOTE: Make sure the connector is fully seated into the socket.
- Inspect the coolant bottle level and top off as necessary.
- Connect LV power. See LV Power - Disconnect And Connect .
- Perform a cooling system check and fill. See Cooling System - Partial Refill And Bleed .
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Install the front passenger footrest panel. See Panel - Footrest - Front Passenger (LHD) - Remove And Replace .
- Install the passenger footwell cover. See Cover - Footwell - Passenger - Remove And Replace .
- Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH - Remove And Replace .
- Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH - Remove And Replace .
- Install the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH - Remove And Replace .
- Install the passenger footwell cover. See Cover - Footwell - Passenger - Remove And Replace .
- Move the front passenger seat back to its original position.
- Raise the front windows and close the front doors.
