Car Computer - HW3 - Remove And Install: Remove

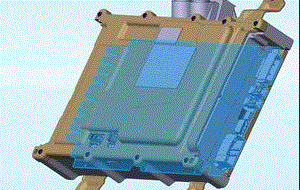

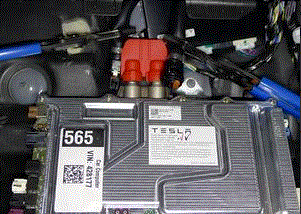

- Open the front doors and lower the front windows.
- Move the front seat backward.
- Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Disconnect LV power. See LV Power - Disconnect And Connect .
- Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH - Remove And Replace .
- Remove the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH - Remove And Replace .
- Remove the passenger footwell cover. See Cover - Footwell - Passenger - Remove And Replace .
- Remove the front passenger footrest panel. See Panel - Footrest - Front Passenger (LHD) - Remove And Replace .

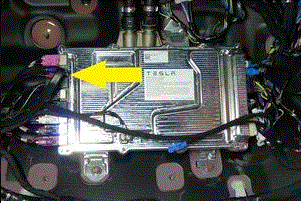

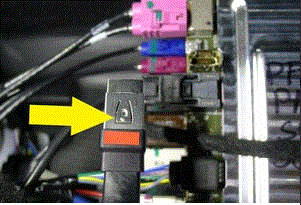

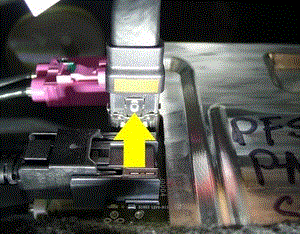

- Depress the connector lock on the underside of the connector, and then disconnect the connector to the gaming MCU.CAUTION: Do not release the connector without releasing the connector lock first. Damage to the PCBA may occur if removed without releasing the connector lock.

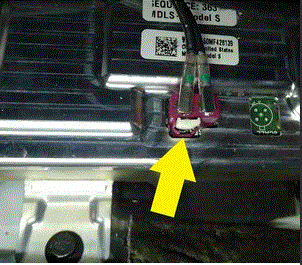

- Release the connector lock, and then disconnect the connector to the connectivity module.NOTE: Move the release lock rearward before disconnecting the connector.

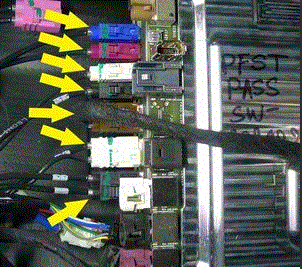

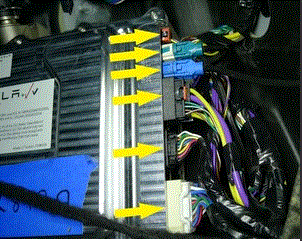

- Release the connector locks, and then disconnect the connectors (x6) at the LH side of the entertainment motherboard.
- Release the connector locks, and then disconnect the connectors (x7) at the LH side of the AP motherboard.

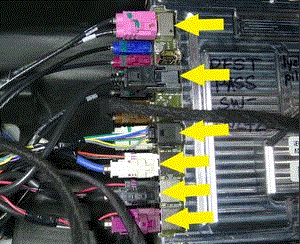

- Release the connector locks, and then disconnect the connectors (x6) at the RH side of the entertainment motherboard.
- Release the connector locks, and then disconnect the connectors (x3) at the RH side of the AP motherboard.

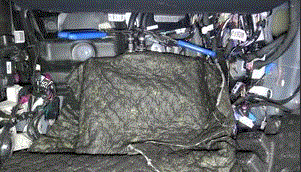

- Install coolant hose clamps to the coldplate hoses (x2).NOTE: Place coolant absorbent mats or rags around the car computer.
- Release the coolant hoses (x2) from the car computer coldplate assembly, and then install coolant plugs on the both hoses and car computer.

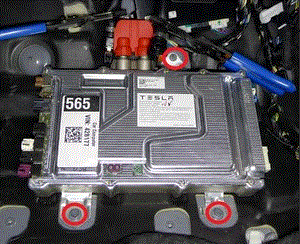

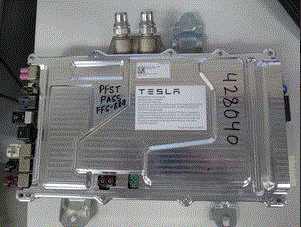

- Remove the bolts (x2) and nut that attach the car computer to the vehicle, and then remove the car computer from the vehicle.
7 Nm (5.2 lbs-ft)
NOTE: Clean up any residual coolant from the vehicle.Tip: Use of the following tool(s) is recommended:
- 10 mm socket
