Car Computer - HW4 - Remove And Install: Install

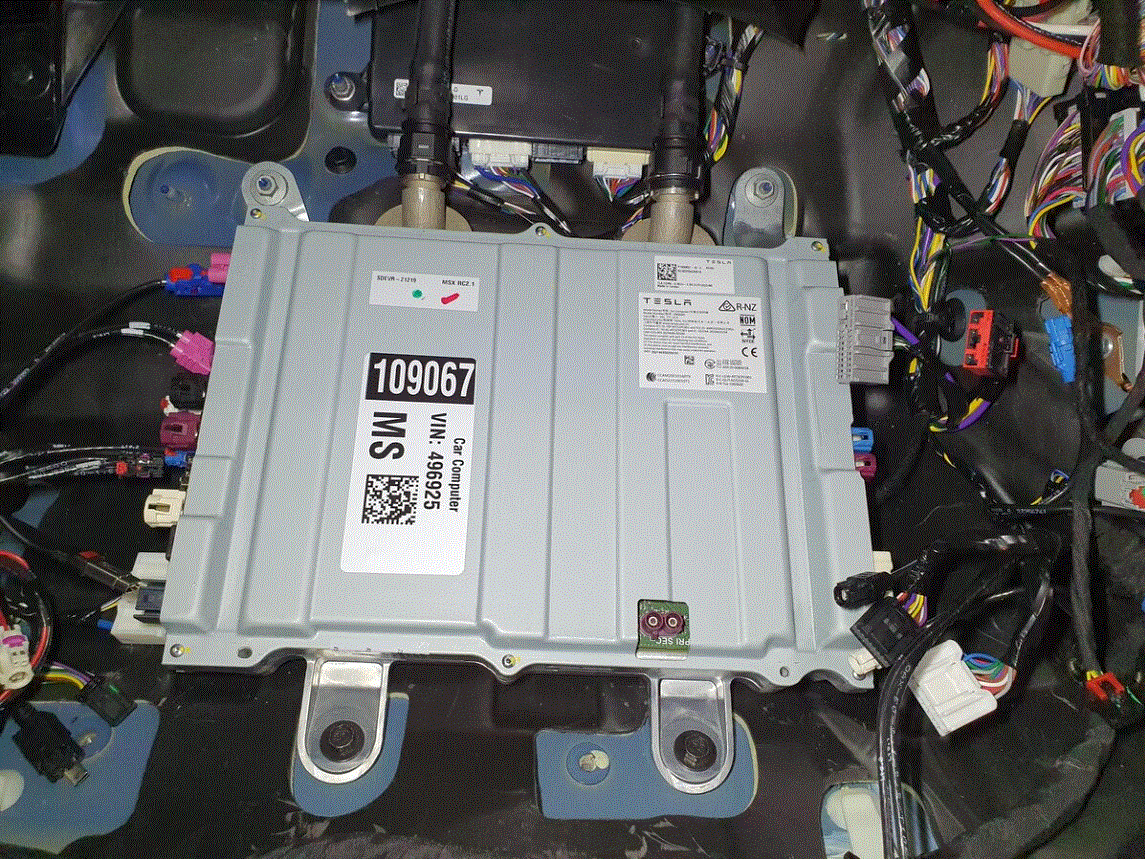

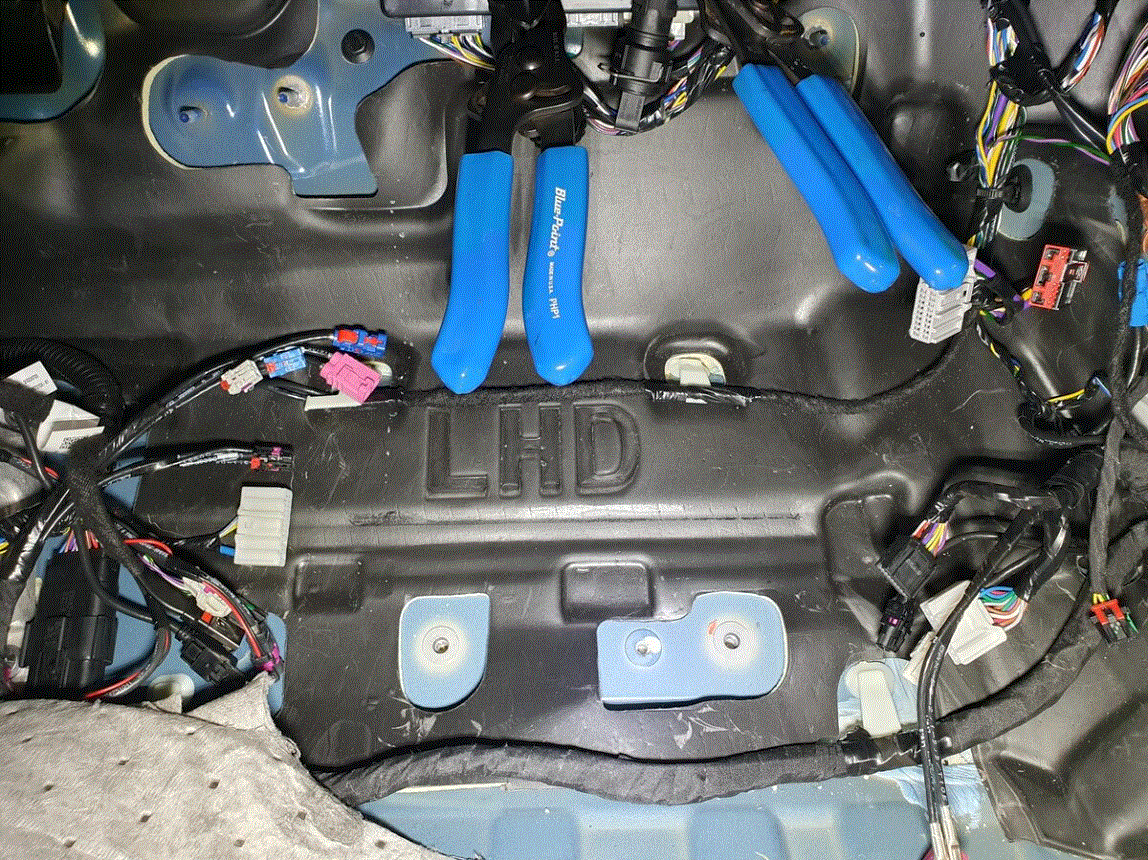

- Install the bolts (x2) and nuts (x2) that attach the car computer to the body.
Torque specifications:
- for the bolts: 8 Nm
- for the nuts: 7 Nm
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

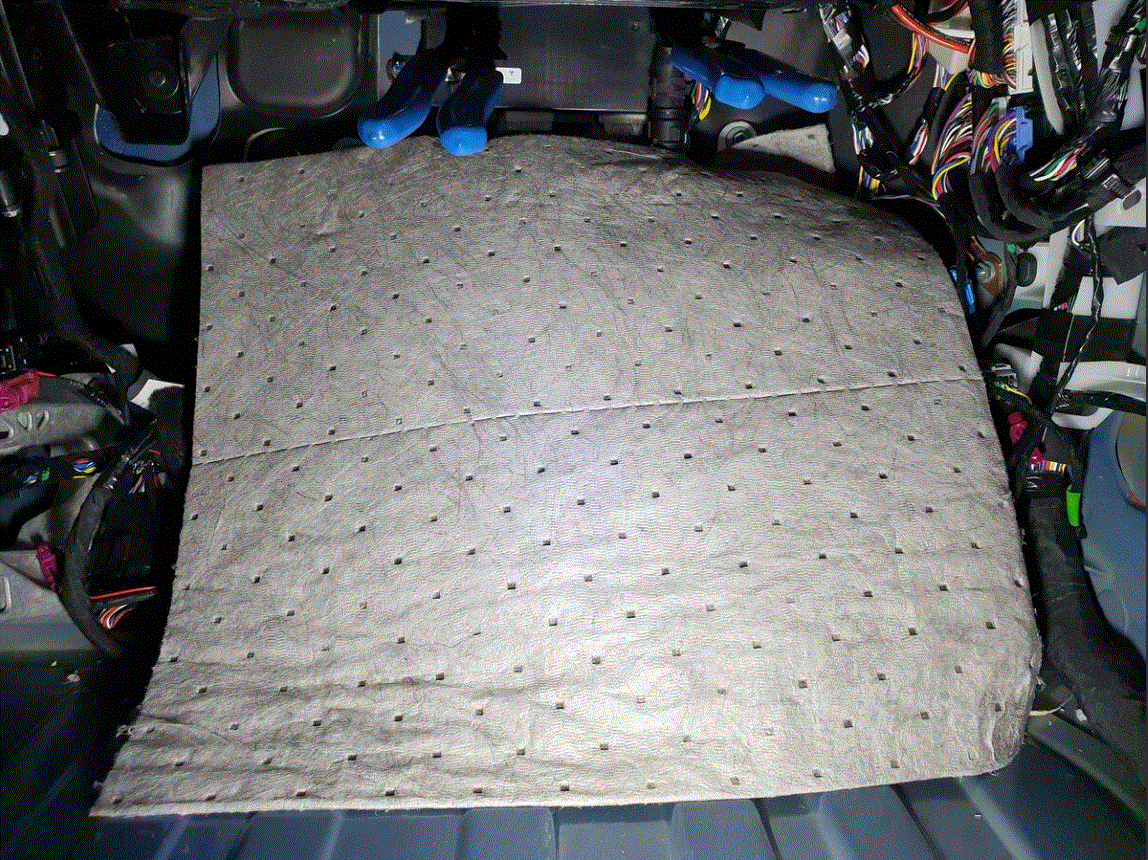

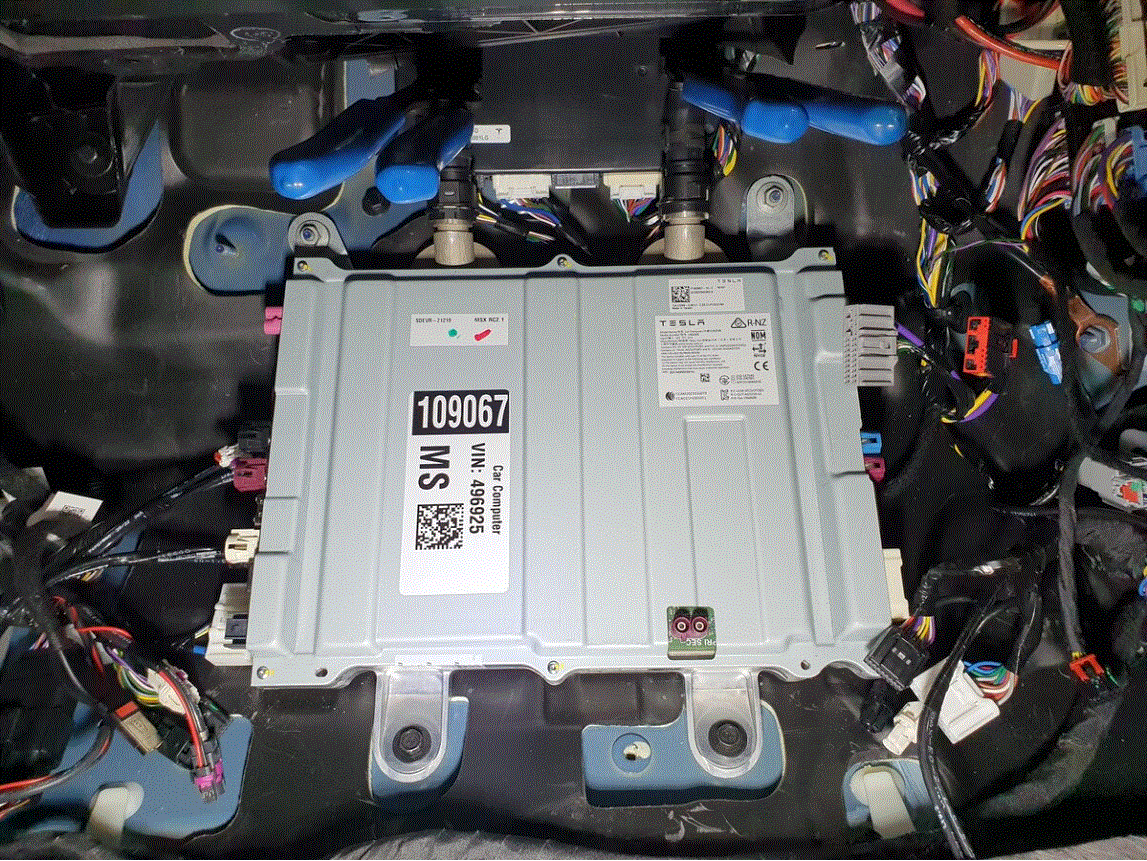

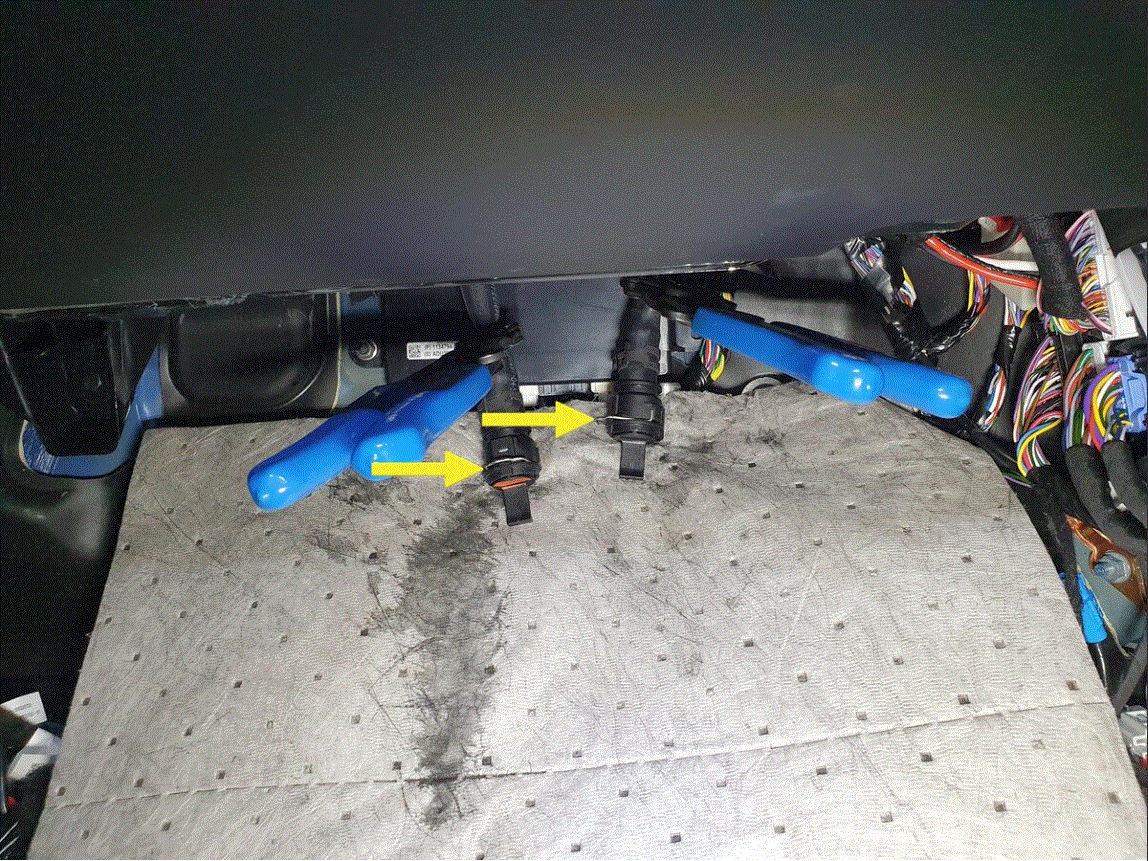

- Remove the coolant plugs from the hoses (x2), secure the coolant hoses onto the car computer coldplate assembly, and then secure them with spring locks (x2).NOTE: Place absorbent material onto the car computer.

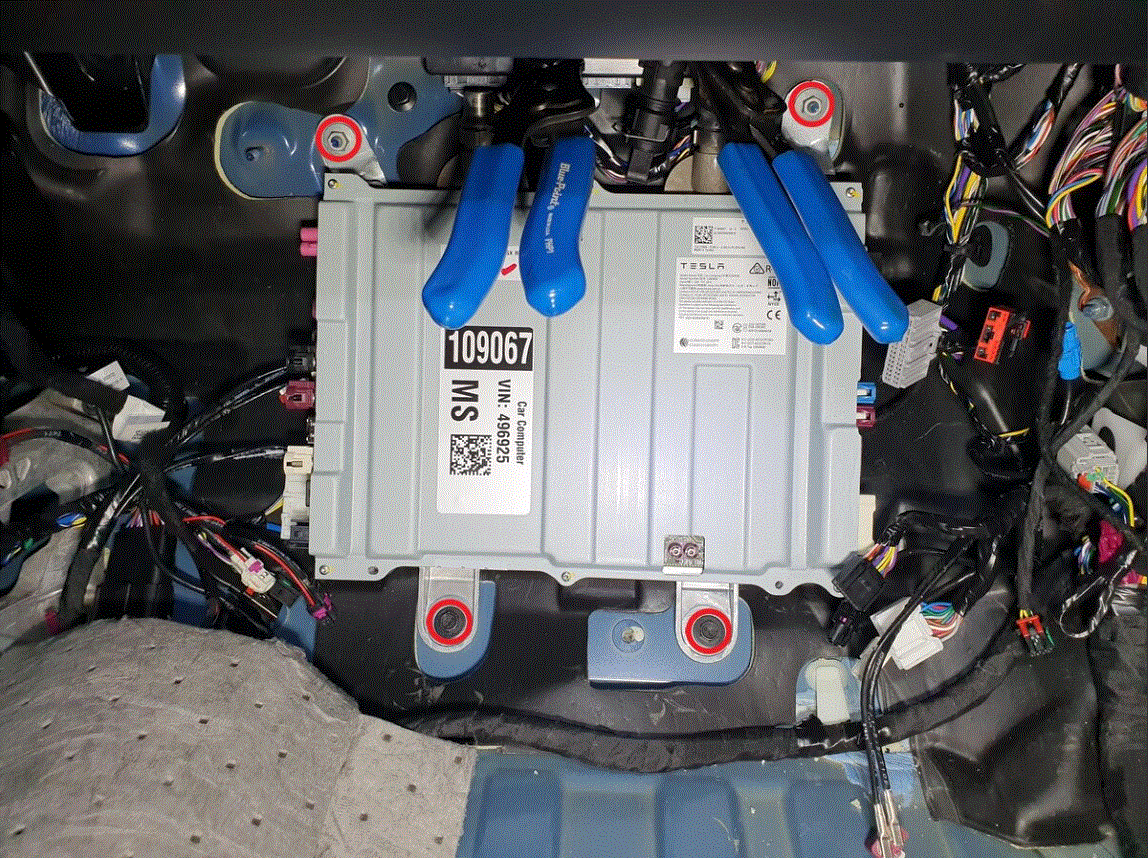

- Remove the coolant hose clamps from the hoses (x2).NOTE: Remove absorbent material.NOTE: Clean residual fluid.NOTE: Inspect for coolant leaks.

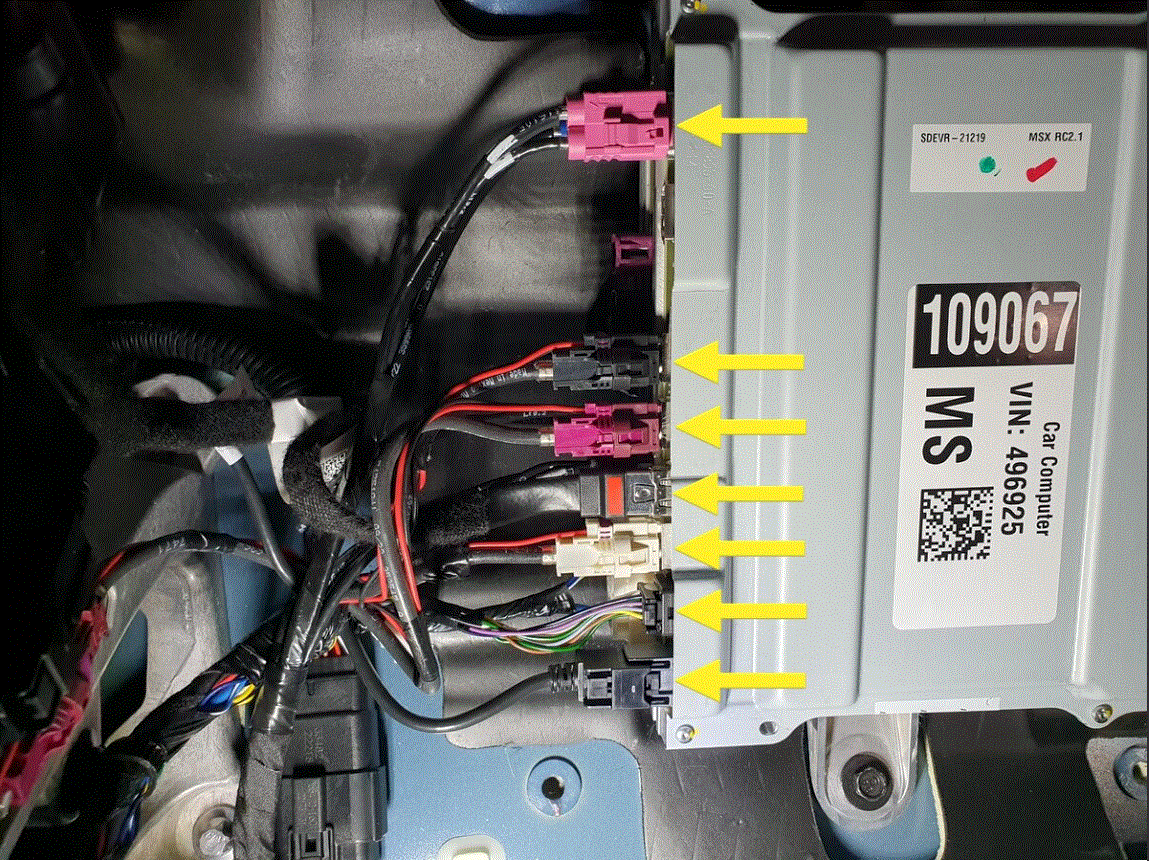

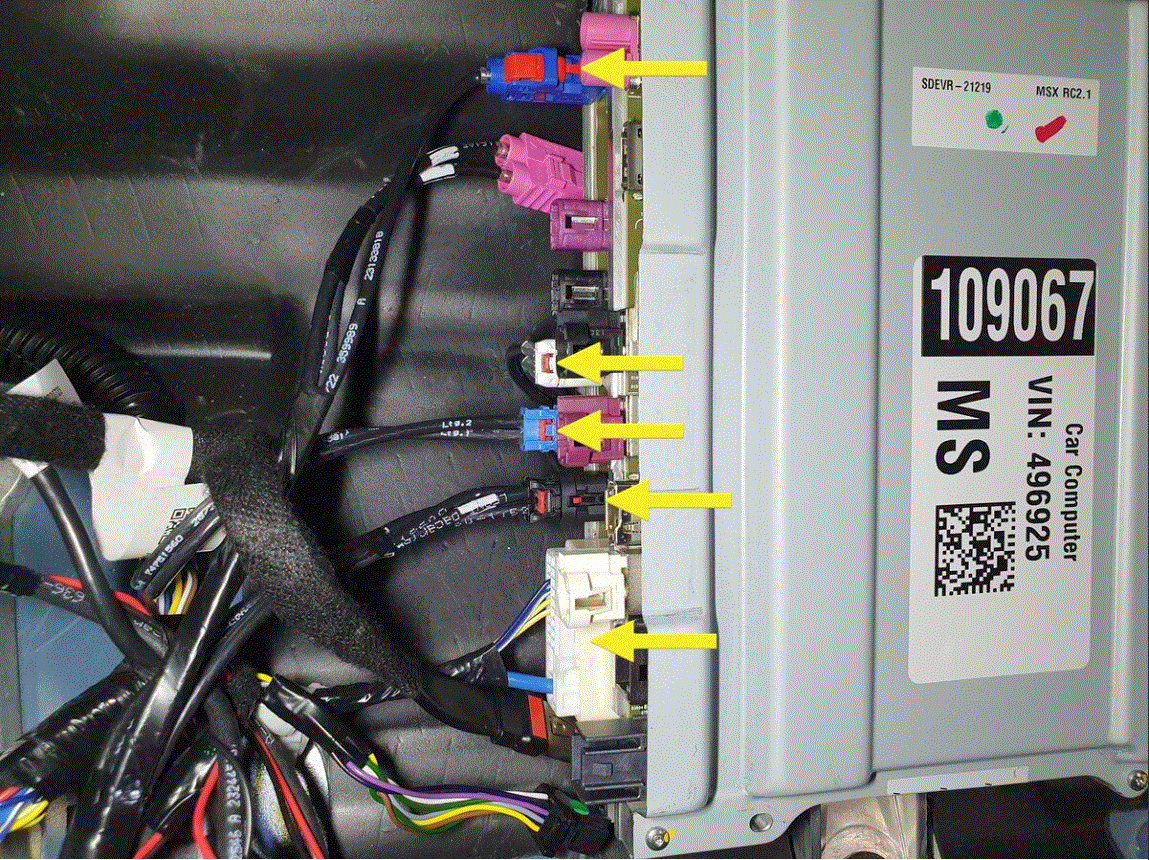

- Connect the electrical connectors (x5) onto the LH side of the Autopilot motherboard.NOTE: Secure the locks on the electrical connectors after installation.

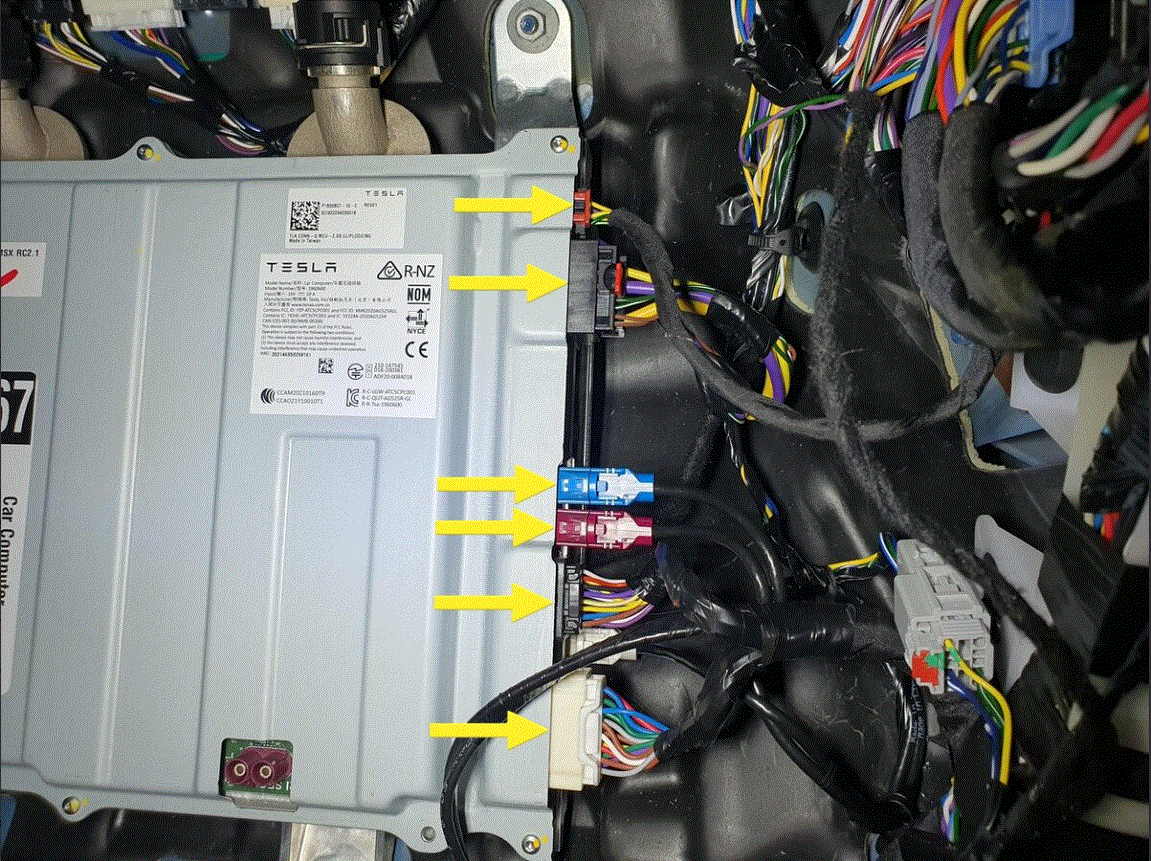

- Connect the electrical connectors (x7) onto the LH side of the infotainment motherboard.NOTE: Secure the locks on the electrical connectors after installation.

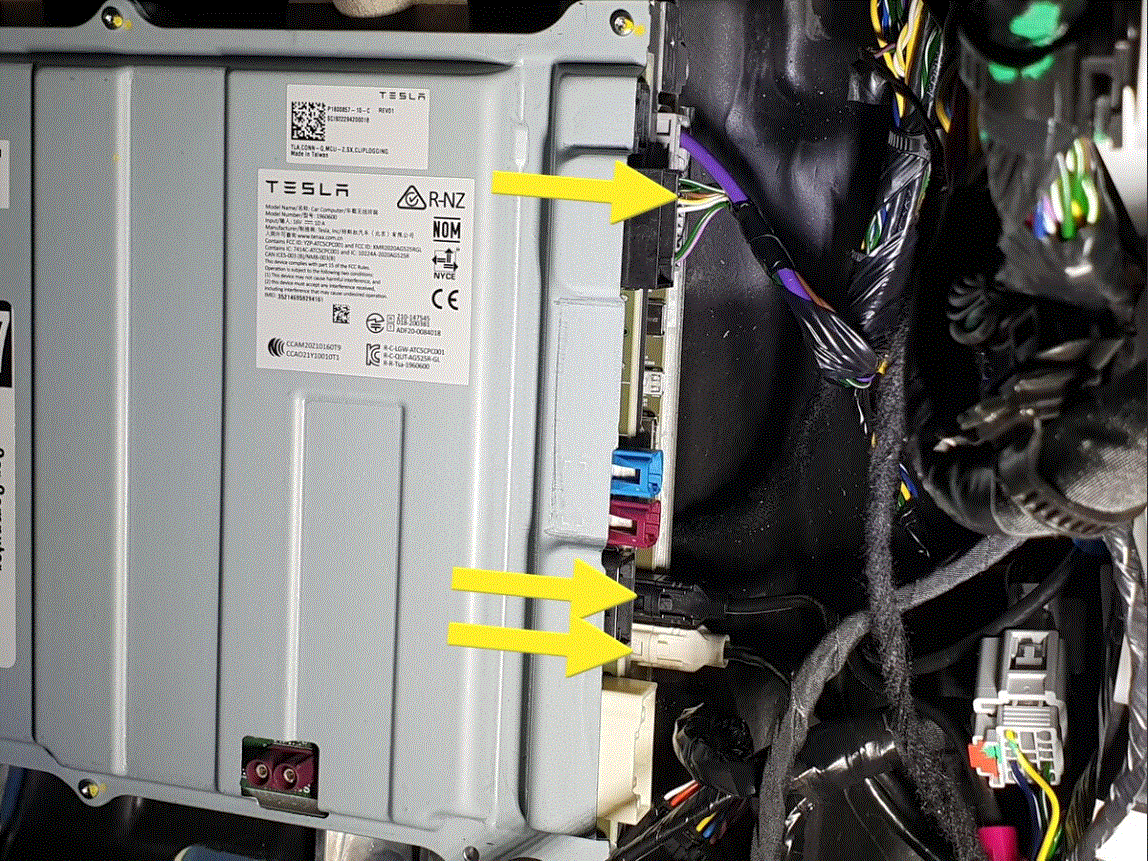

- Connect the electrics connectors (x3) onto the RH side of the Autopilot motherboard.

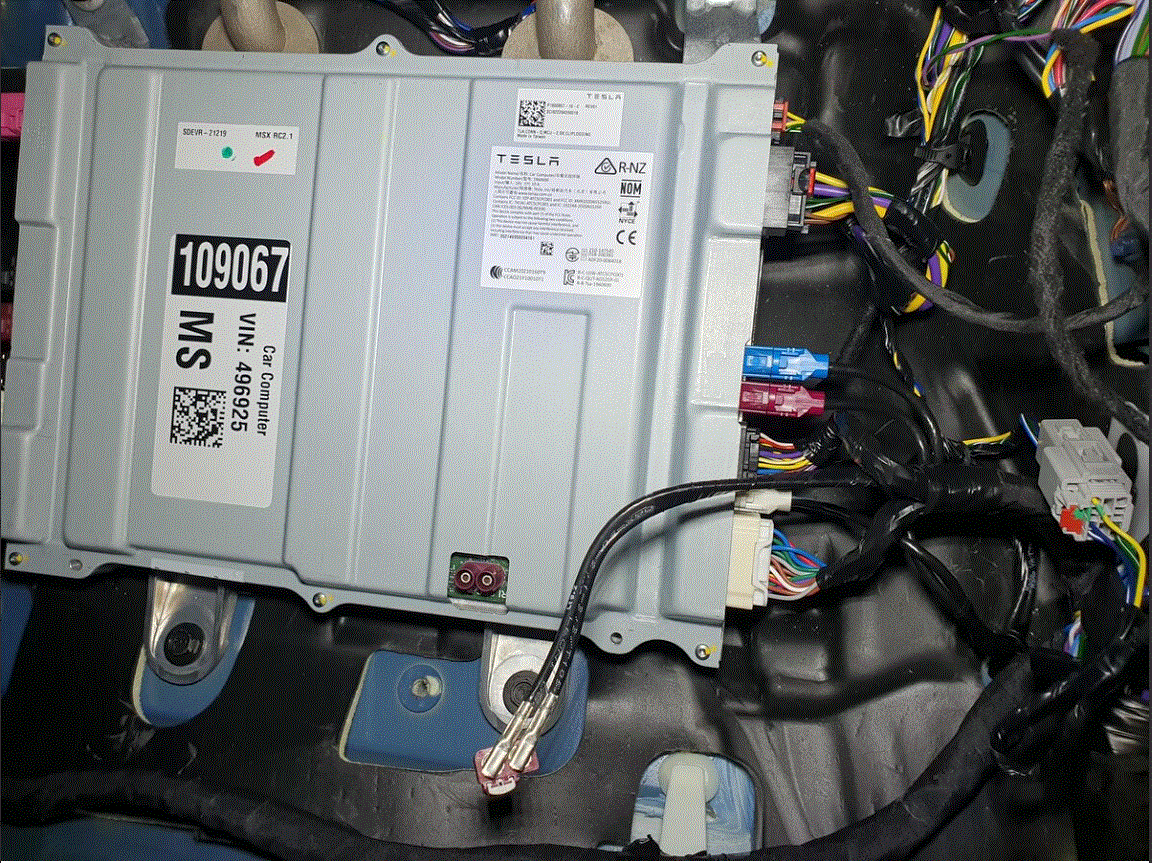

- Connect the electrical connectors (x6) onto the RH side of the infotainment motherboard.NOTE: Secure the locks on the electrical connectors after installation.

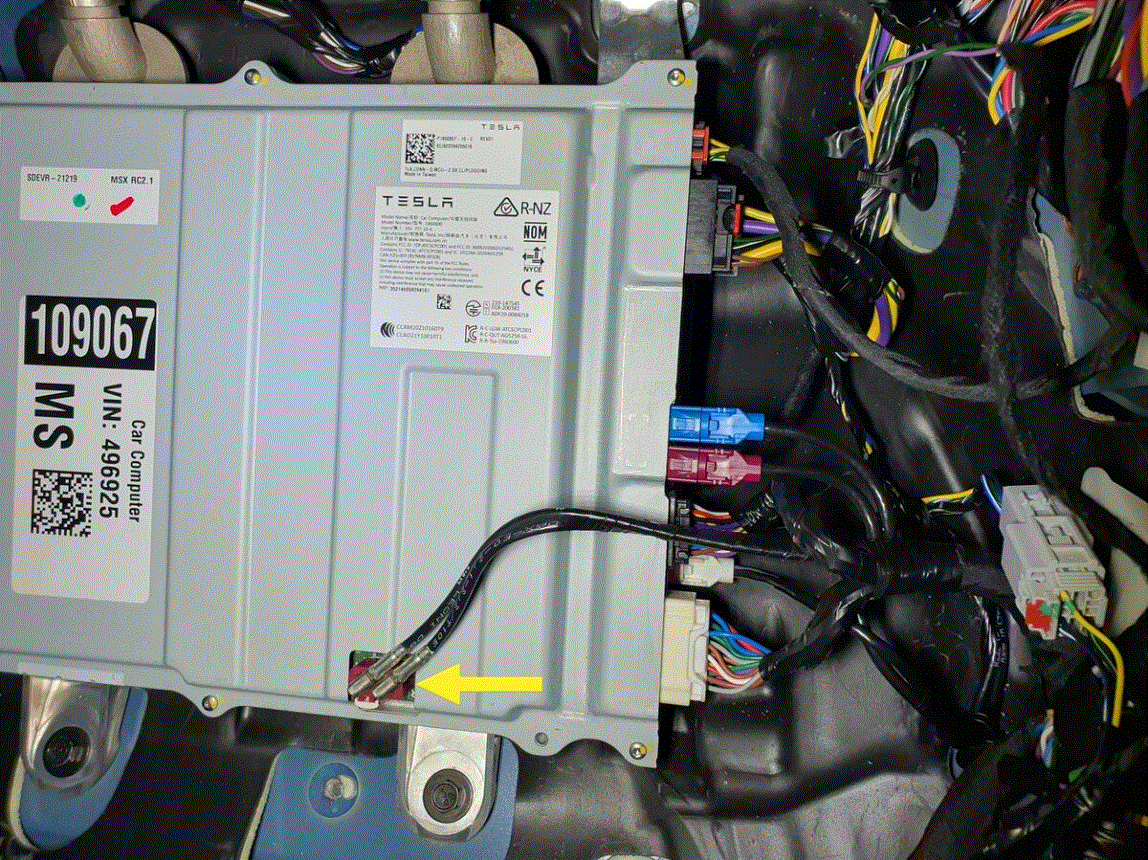

- Install the electrical connector to the connectivity module.NOTE: Slide the lock underneath the electrical connector.
- Connect LV power. See LV Power - Disconnect And Connect .
- Perform a cooling system partial refill and bleed. See Cooling System - Partial Refill And Bleed .
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Close the hood.
- Install the front passenger footrest panel. See Panel - Footrest - Front Passenger (LHD) - Remove And Replace .
- Install the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH - Remove And Replace .
- Install the passenger footwell cover. See Cover - Footwell - Passenger - Remove And Replace .

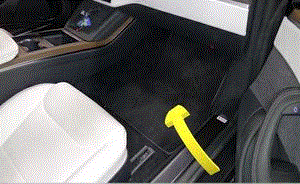

- Install the front passenger floor mat.
- Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH - Remove And Replace .
- Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH - Remove And Replace .
- Restore the front passenger seat back to its original position.
- Raise both front windows and close both front doors.
