Car Computer - HW4 - Remove And Install: Remove
- Open both front doors and lower both front windows.

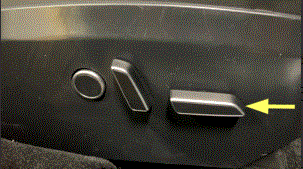

- Move the front passenger seat fully rearwards.
- Disconnect LV power. See LV Power - Disconnect And Connect .
- Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH - Remove And Replace .
- Remove the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH - Remove And Replace .
- Remove the passenger footwell cover. See Cover - Footwell - Passenger - Remove And Replace .

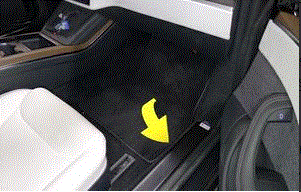

- Remove the front passenger floor mat.
- Remove the RH center console side panel carpet. See Carpet - Side Panel - Center Console - LH - Remove And Replace .
- Remove the front passenger footrest panel. See Panel - Footrest - Front Passenger (LHD) - Remove And Replace .

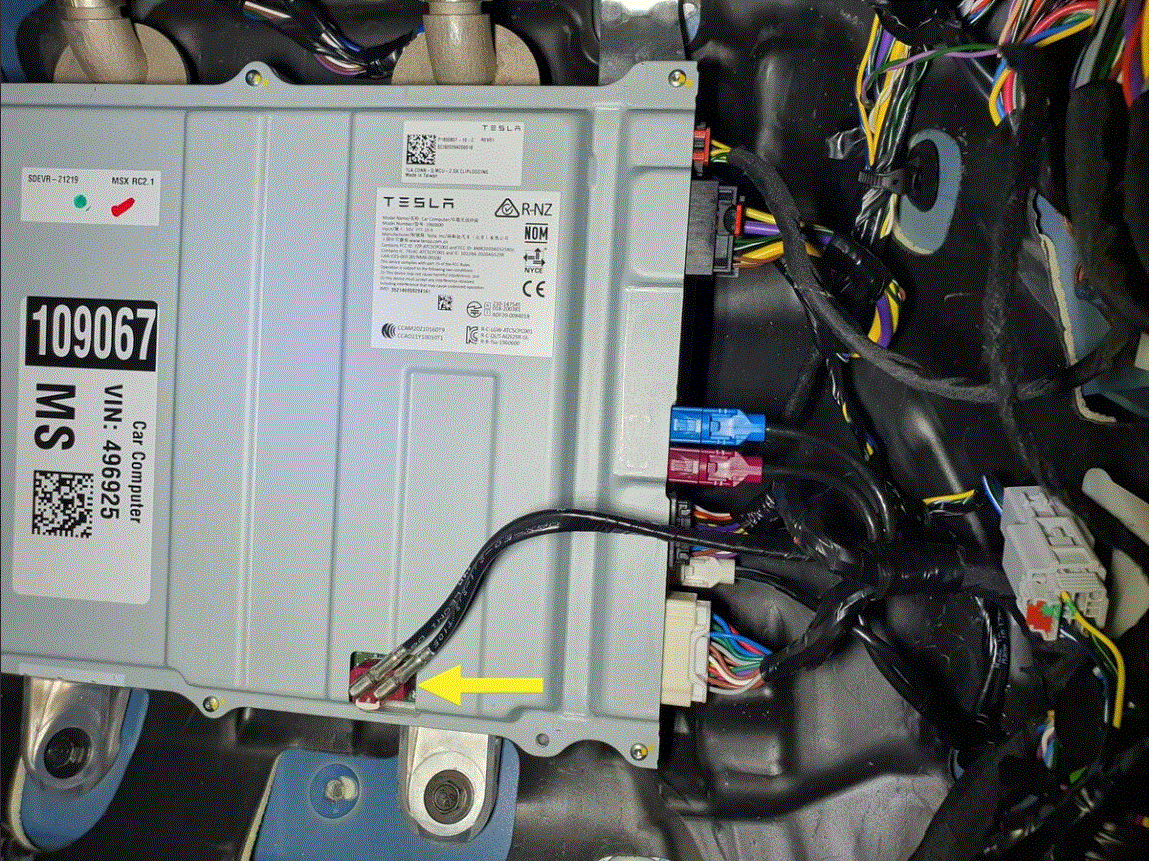

- Disconnect the electrical connector to the connectivity module.

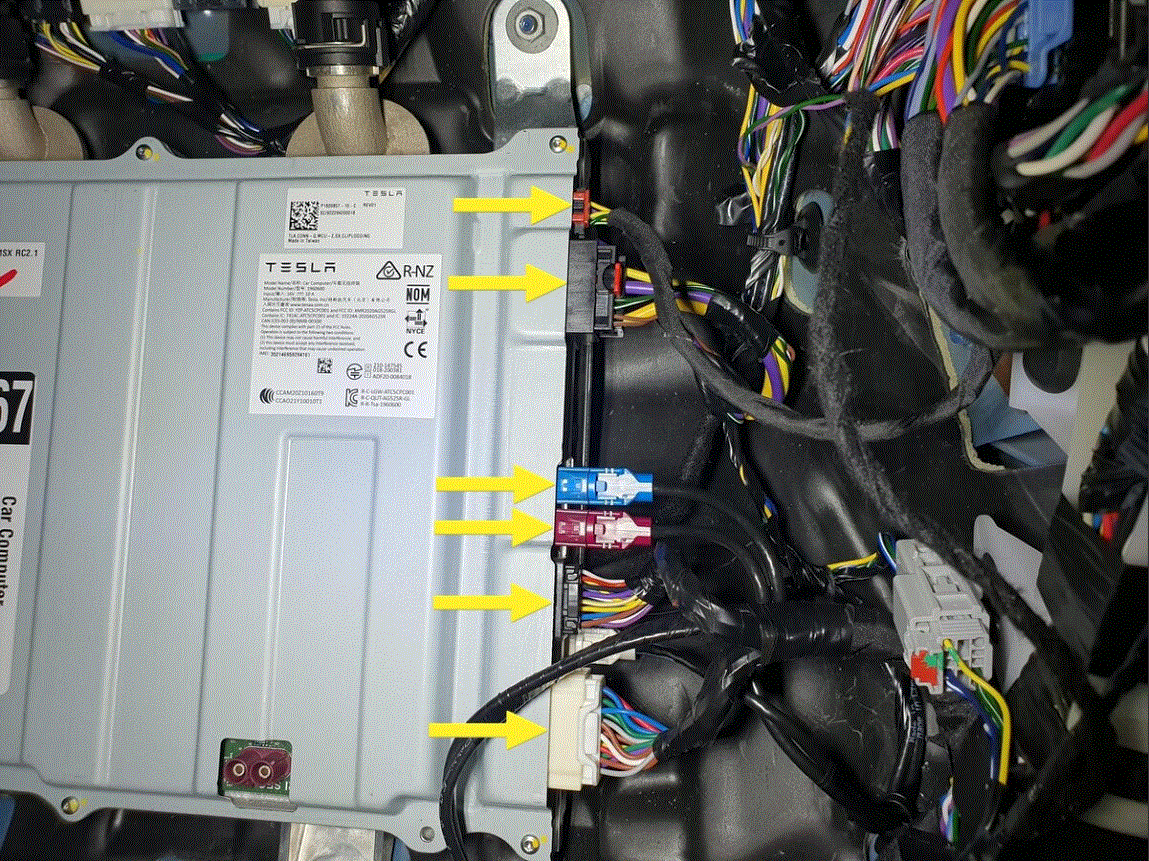

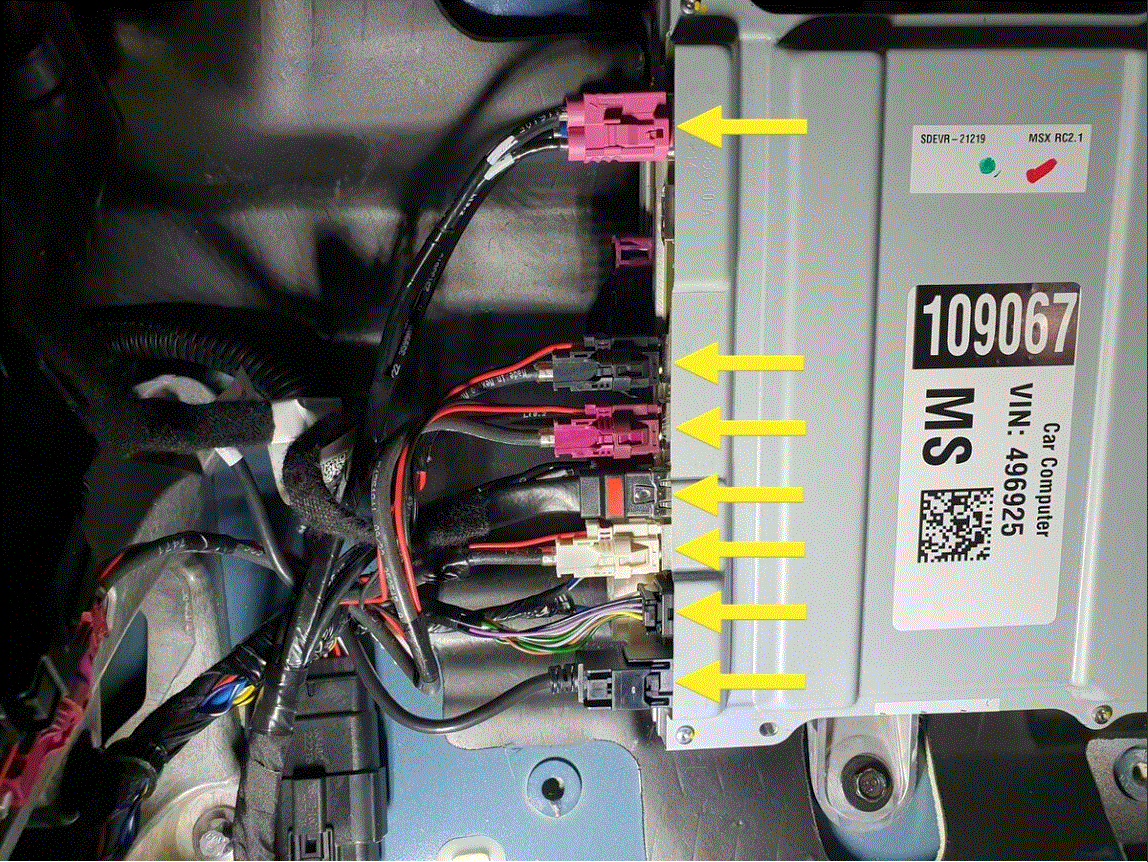

- Disconnect the electrical connectors (x6) at the RH side of the infotainment motherboard.NOTE: Release the lock on each electrical connector before removal.

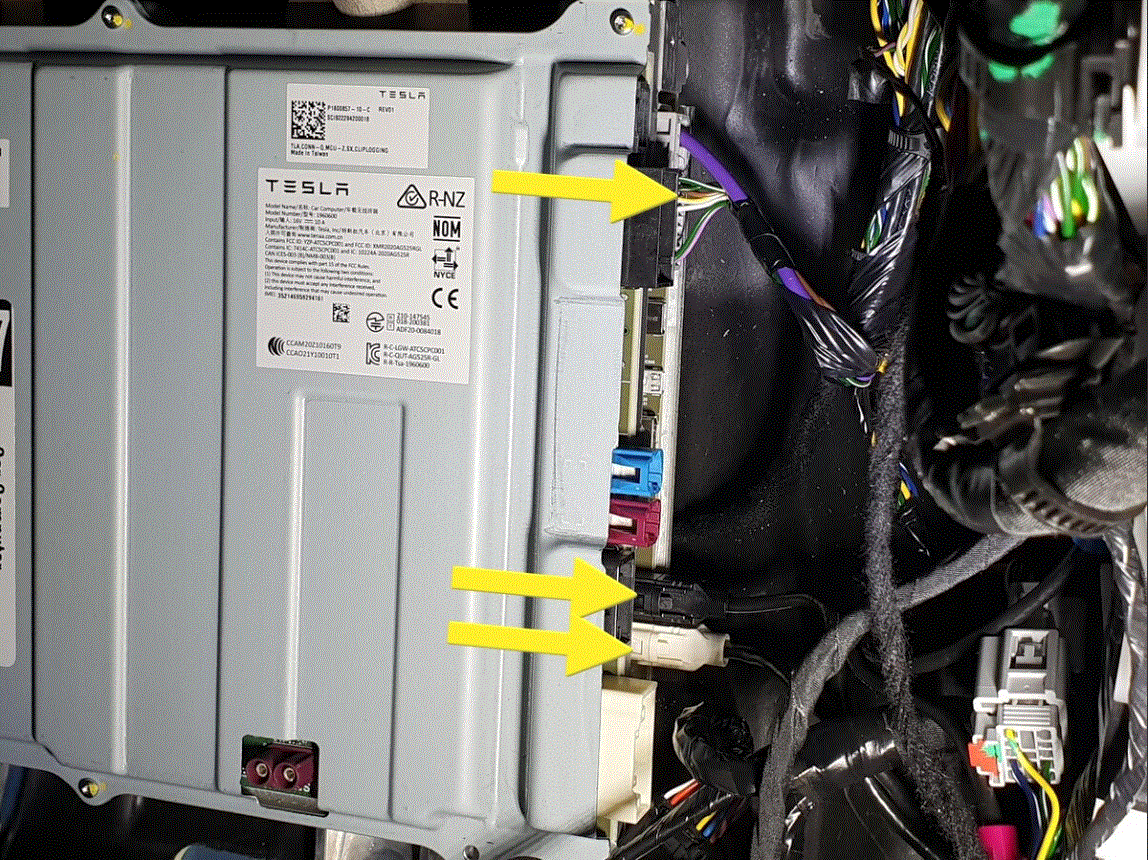

- Disconnect the electrical connectors (x3) at the RH side of the Autopilot motherboard.NOTE: Release the lock on each electrical connector before removal.

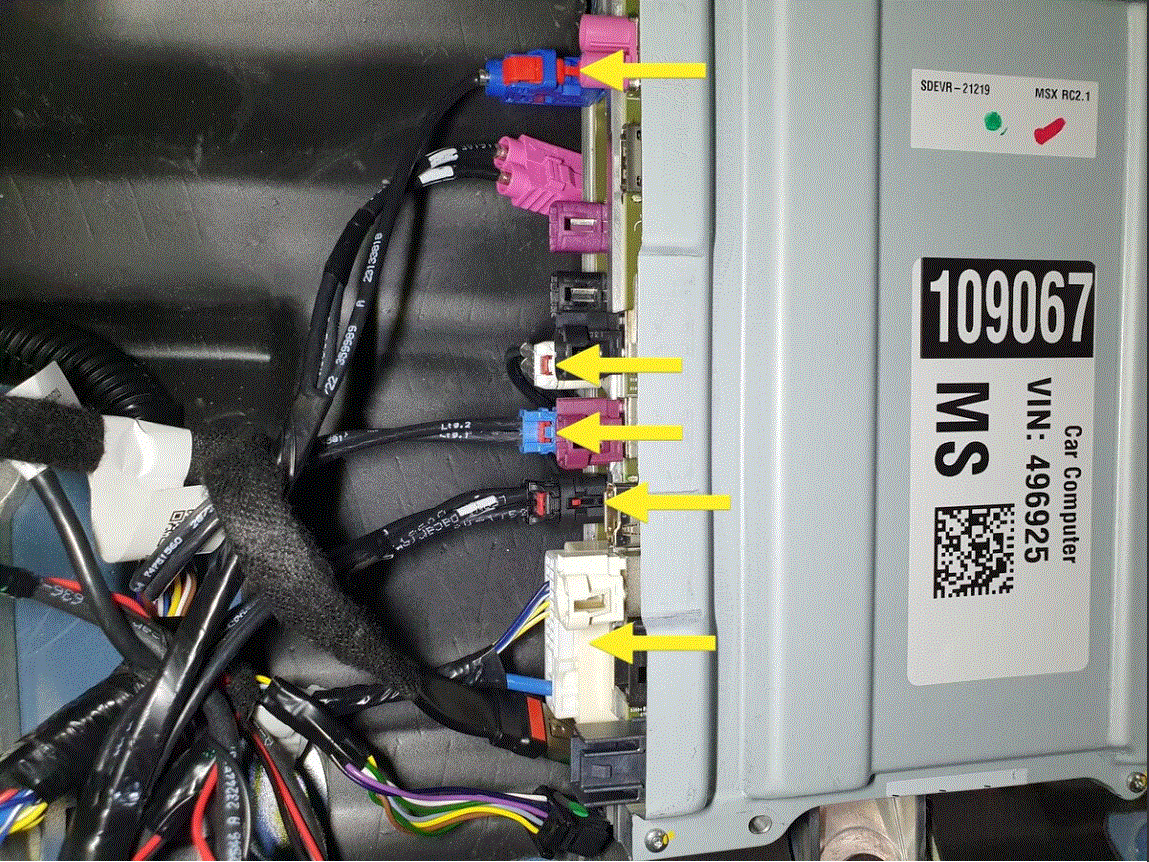

- Disconnect the electrical connectors (x7) at the LH side of the infotainment motherboard.NOTE: Release the lock on each electrical connector before removal.
- Disconnect the electrical connectors (x5) at the LH side of Autopilot motherboard.NOTE: Release the lock on each electrical connector before removal.

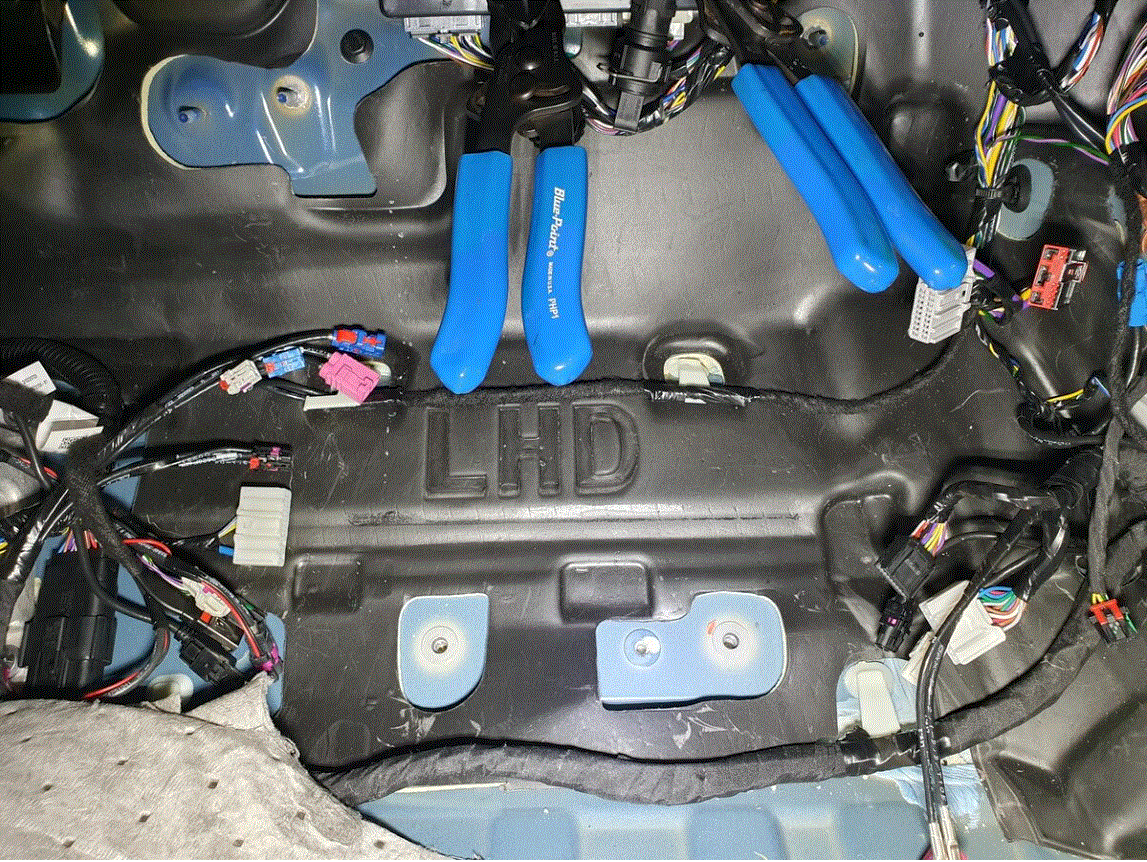

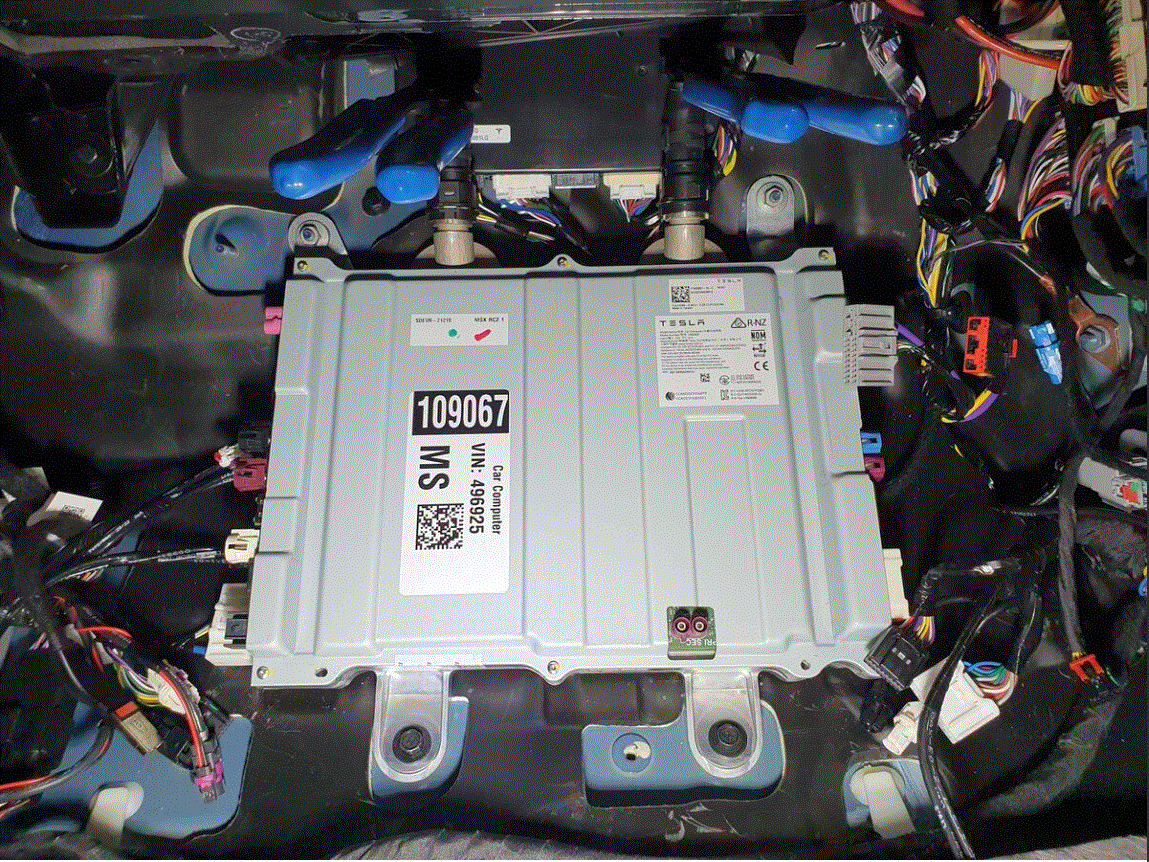

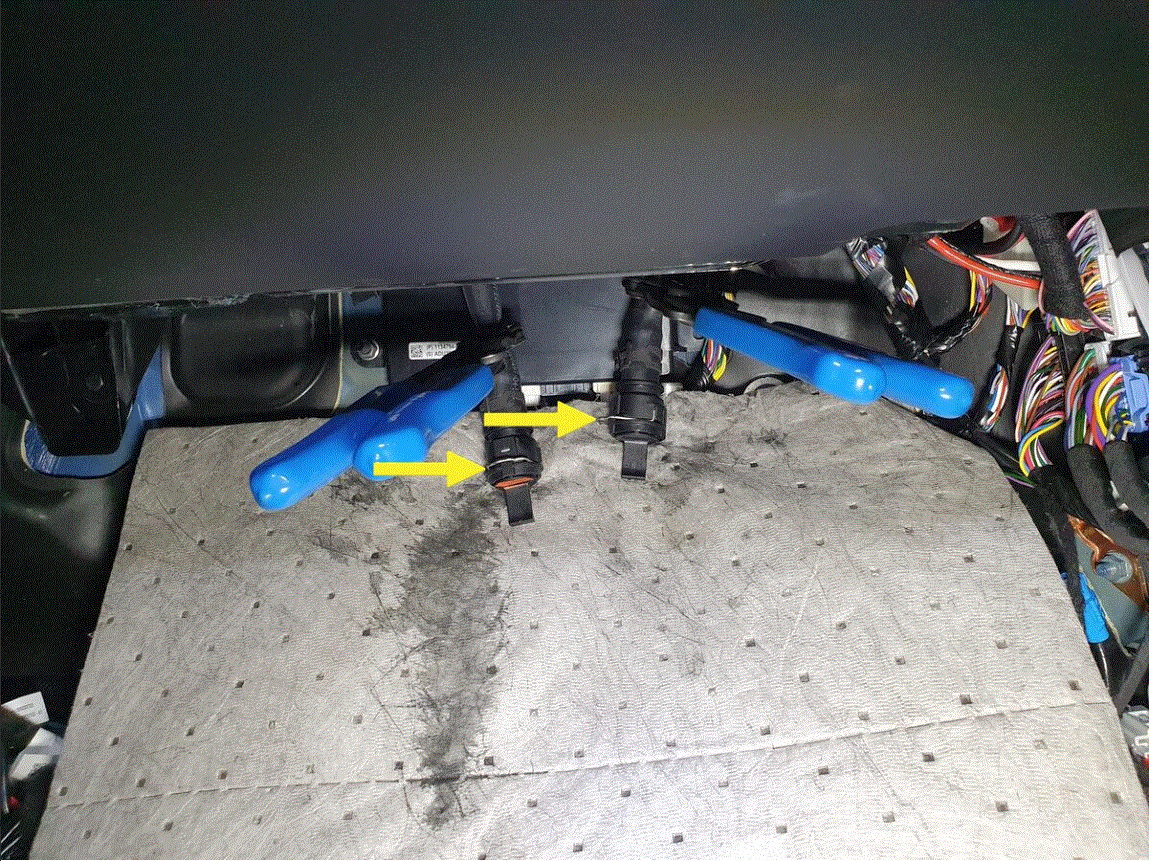

- Install coolant hose clamps (x2) to the coldplate hoses of the car computer.NOTE: Place coolant absorbent material around the car computer.
- Release the spring locks (x2) that attach each coolant hoses (x2) to the car computer coldplate assembly.NOTE: Install coolant plugs at both hoses and car computer upon hose removal.

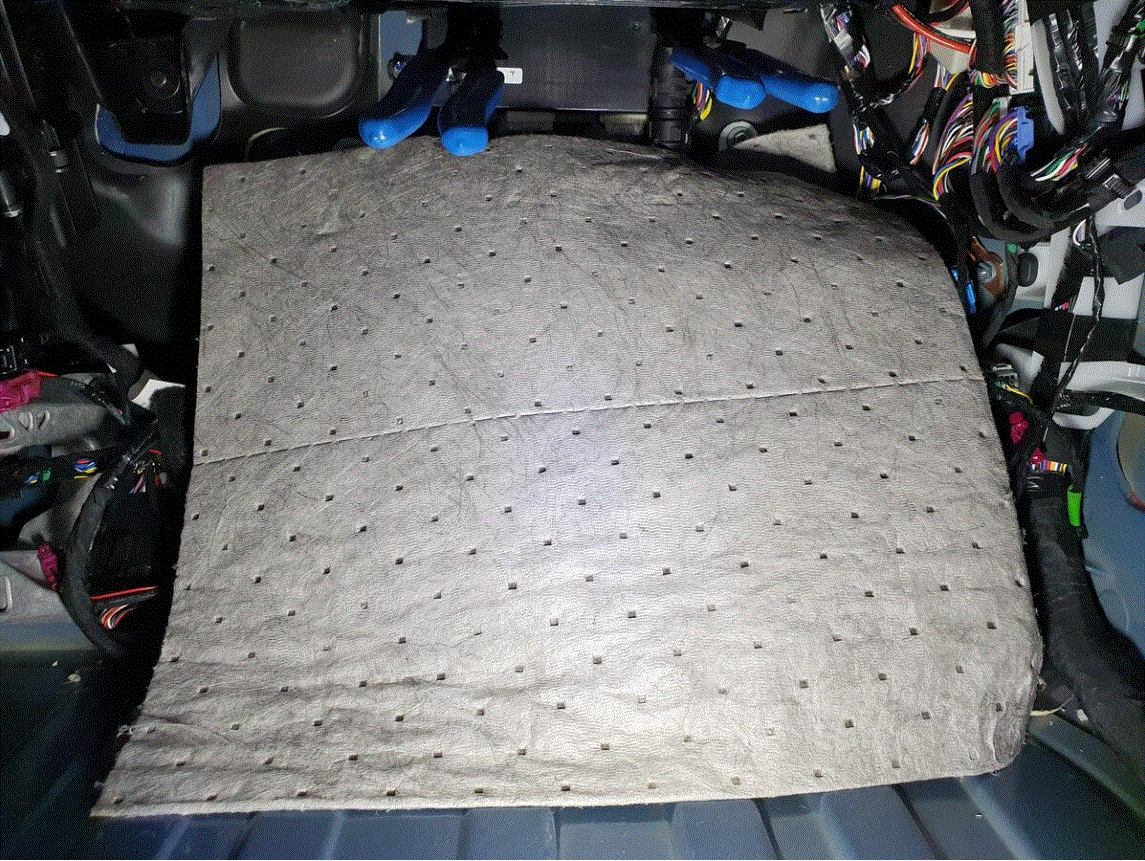

- Move the absorbent mat aside to clear the car computer area.NOTE: Wipe away excess coolant from the floor.

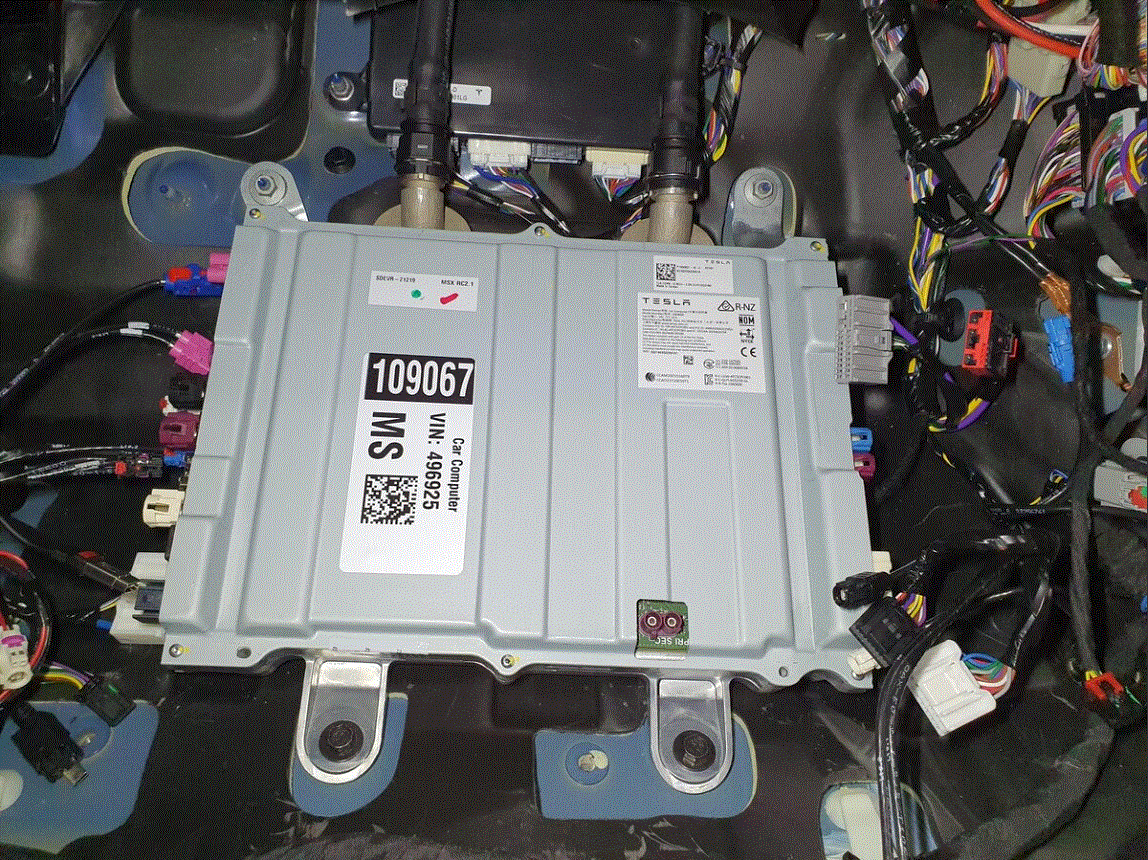

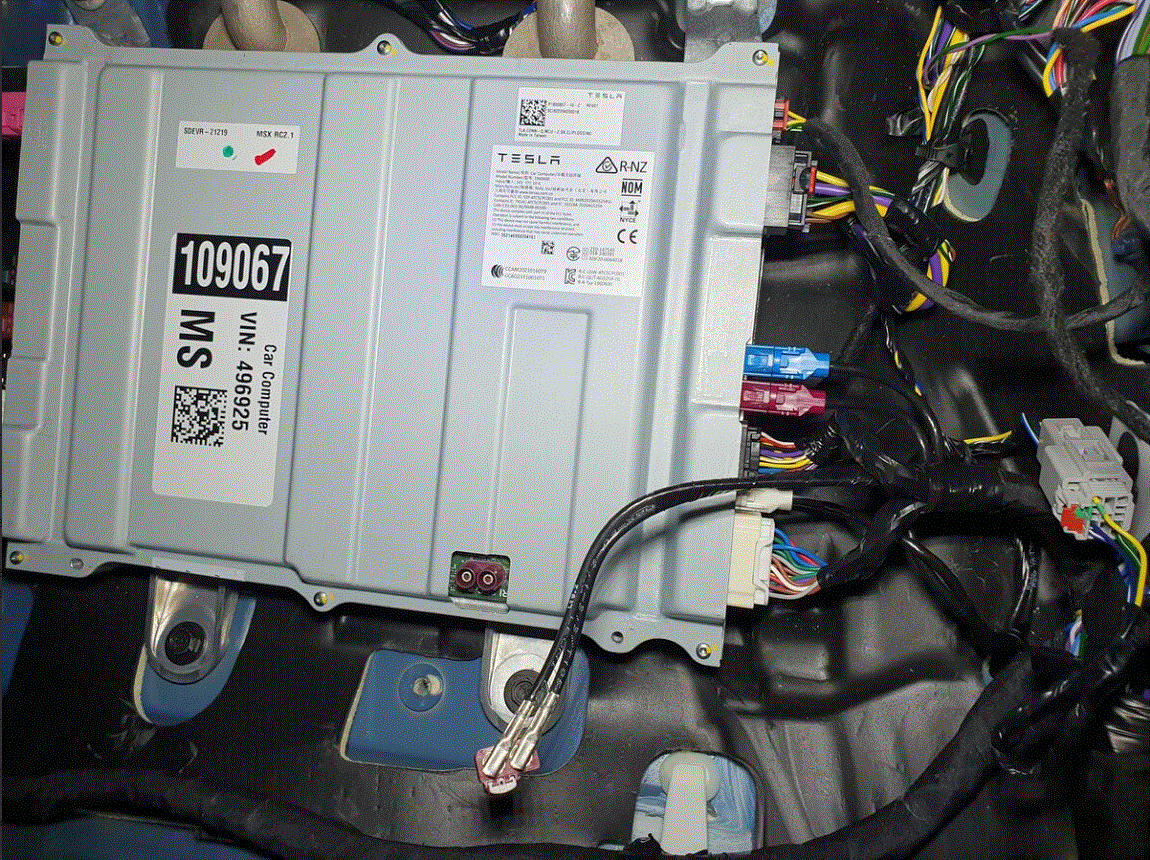

- Remove the bolts (x2) and nuts (x2) that attach the car computer to the body, and then remove the car computer from the vehicle.
Torque specifications:
- for the bolts: 8 Nm
- for the nuts: 7 Nm
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
NOTE: Remove any residual coolant from the vehicle.
