SD Card - Car Computer - Remove And Replace: Install

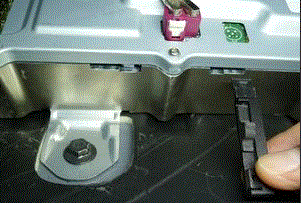

- Secure the SD card to the install guide.NOTE: Ensure the install guide slide is in the down position. Slide the SD card into the top of the tool from left to right until fully seated.NOTE: SD card contacts should be facing rearward during installation.

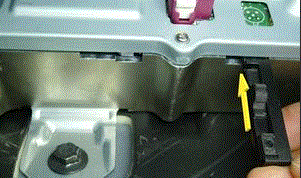

- Install the SD card.NOTE: Guide the SD card into the slot. Insert the guide to the stop. Slide the guide locking tab upward until an audible click and lock of the SD card. Remove the guide and confirm the SD card is fully seated.
- Install the front passenger footrest panel. See Panel - Footrest - Front Passenger (LHD) (Remove and Replace).

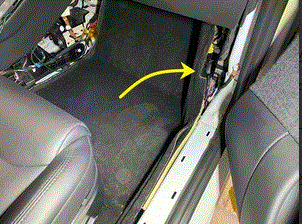

- Fold the RH main carpet back into place.
- Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace).
- Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
- Install the RH center console side panel. See Side Panel - Center Console - LH (Remove and Replace).
- Install the passenger footwell cover. See Cover - Footwell - Passenger (Remove and Replace).
- Install the front passenger floor mat.
- Reconnect LV power. See LV Power - Disconnect And Connect .
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Close the hood.

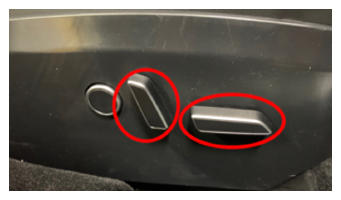

- Restore the front passenger seat back to its original position.
- Raise the RH front window and close the RH front door.
