Service Panel - Instrument Panel - Remove and Replace: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: This procedure is a DRAFT, although it has been validated. Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near high voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Open LH front door.
Lower LH front window.

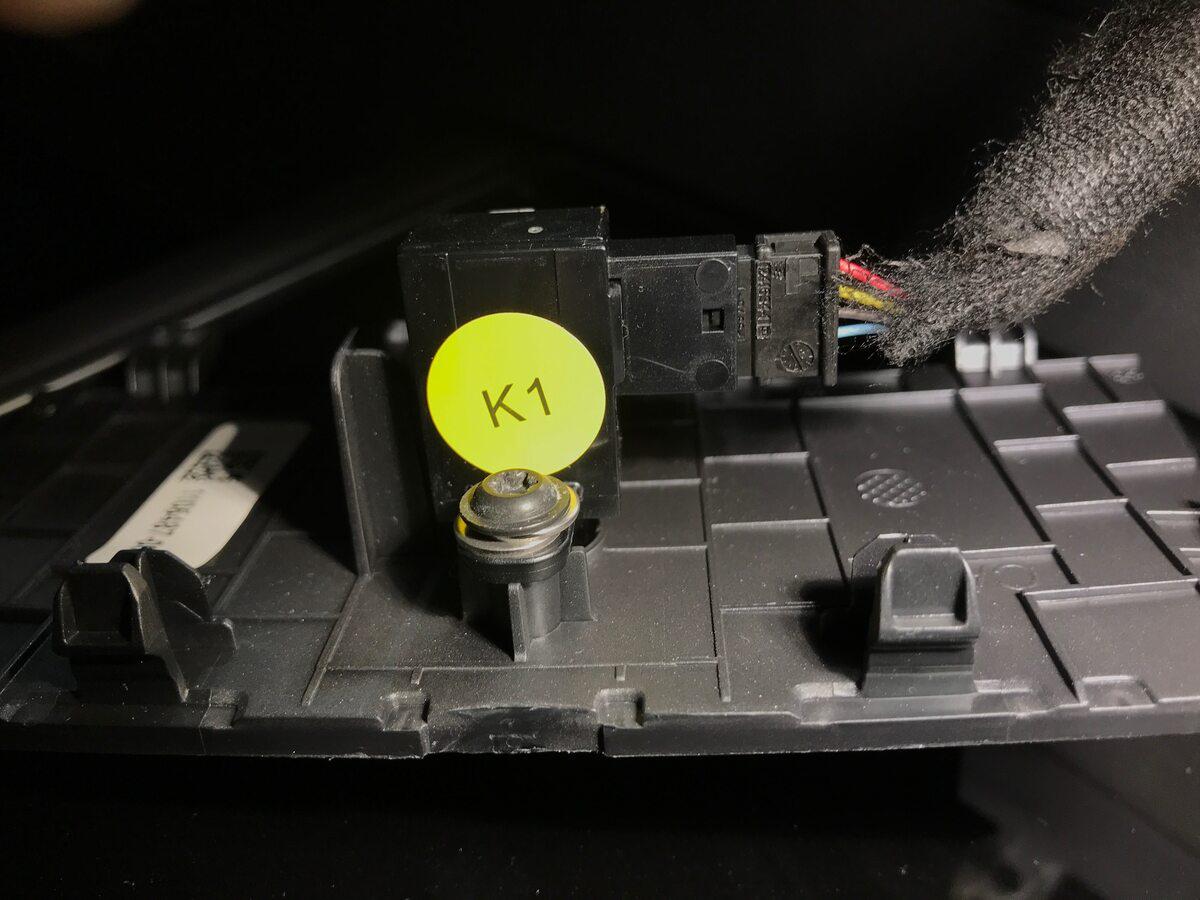

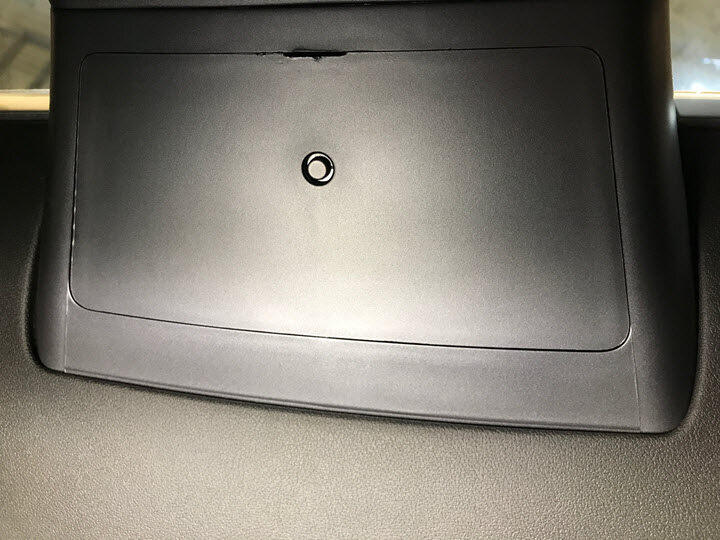

Release IP service panel from IP and disconnect temperature sensor connector.
NOTE: 4x clips, 4x tabs, 1x connector.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

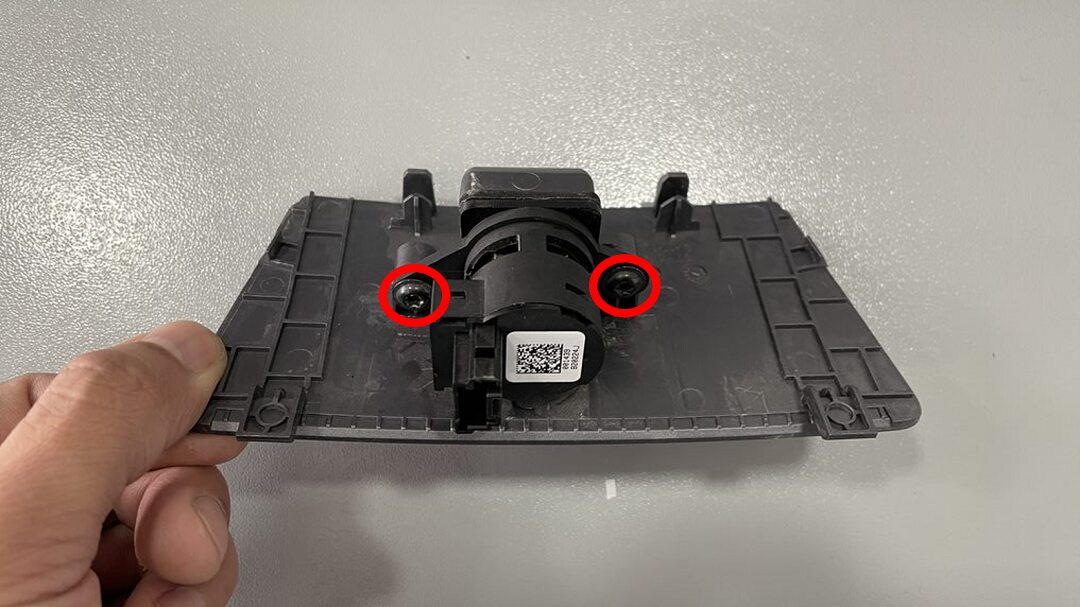

Remove bolts securing cabin temperature sensor to IP service panel.
NOTE: 2x bolts, T20, 0.7 N.m (6.19 inch-lbs.).

Courtesy of TESLA, INC.
Remove the cabin temperature sensor from IP service panel.

Courtesy of TESLA, INC.

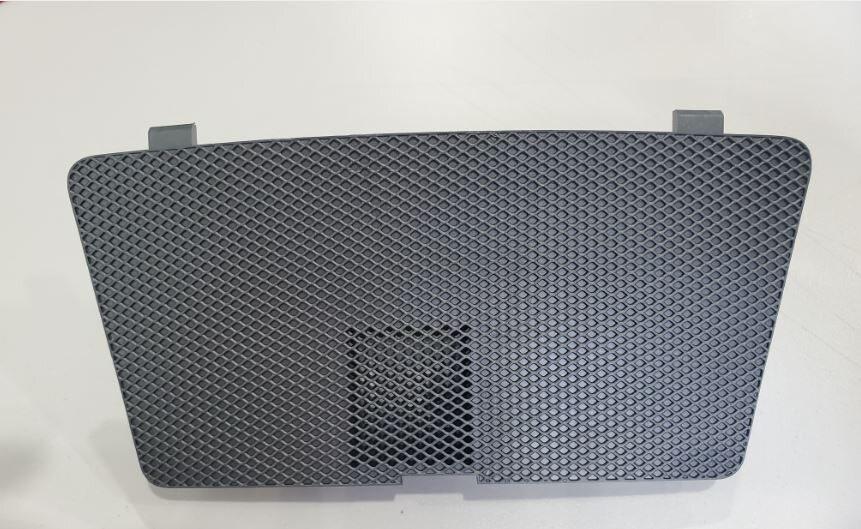

Position the cabin temperature sensor to new IP service panel for installation.

Courtesy of TESLA, INC.
Install bolts securing cabin temperature sensor to new IP service panel.
NOTE: 2x bolts, T20, 0.7 N.m (6.19 inch-lbs.).

Courtesy of TESLA, INC.
Connect temperature sensor connector and install IP service panel into IP.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Raise LH front window.
Close LH front door.
