Module - Restraint Control - Remove And Replace: Remove

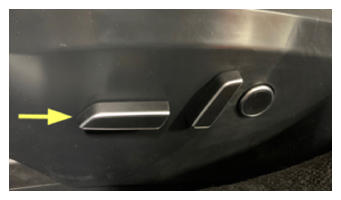

  1. Move the LH front seat backward.
    G15099579Courtesy of TESLA, INC.
  2. Disconnect LV power. See LV Power (Disconnect and Connect) .
  3. Remove the LH toeboard bracket. See Bracket - Toeboard - LH (Remove and Replace) .

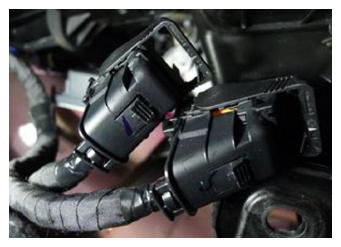

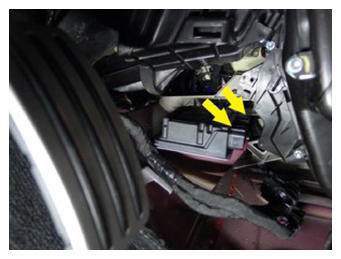

  4. Disconnect the electrical harnesses (x2) from the RCM.

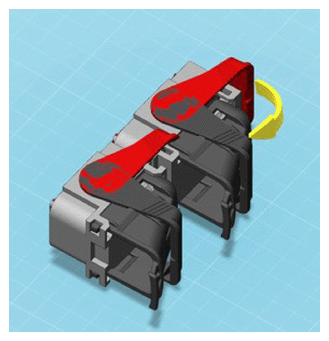

    NOTE: Swing open the locking arm to release the connector. Remove the RH connector first.
    G15099580Courtesy of TESLA, INC.
    G15099581Courtesy of TESLA, INC.
    G15099582Courtesy of TESLA, INC.

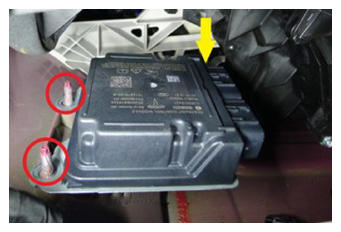

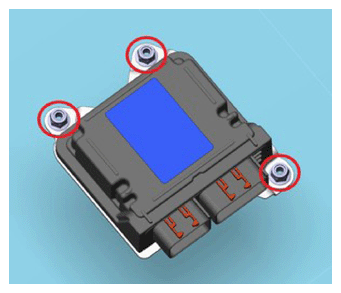

  5. Remove and discard the nuts (x3) that attach the RCM to the vehicle, and then remove the RCM from the vehicle.
    NOTE: 10 mm, 10 N.m
    G15099583Courtesy of TESLA, INC.
    G15099584Courtesy of TESLA, INC.
