Seatbelt Intermediate Web Guide - Remove And Replace: Install

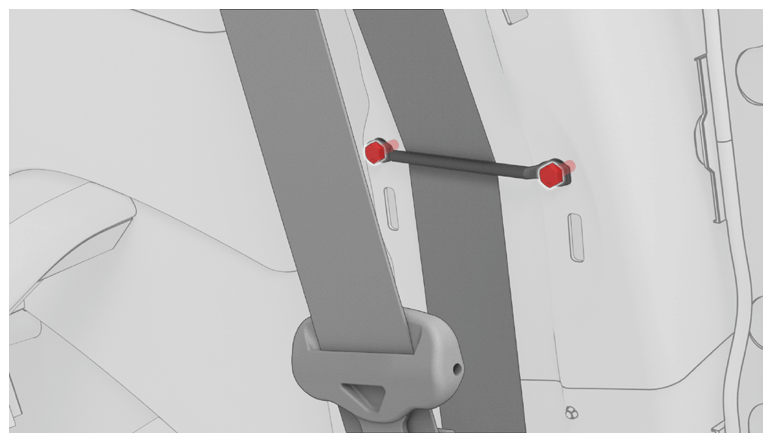

- Position the LH seat belt intermediate web guide onto the B-pillar, and then install the bolts that attach the guide to the B-pillar.
3.5 N.m (2.6 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- Install the LH upper B-pillar trim. See Trim - B- Pillar - Upper - LH (Remove and Replace) .
- Move the driver seat to its original position.
- Close the LH doors.
